Power-Sonic PS-612 6V/1.4AH Sealed Lead Acid Battery User Manual

1. Introduction

This manual provides essential information for the safe and effective use of your Power-Sonic PS-612 6V/1.4AH Sealed Lead Acid (SLA) Battery. Please read this manual thoroughly before installation and operation, and retain it for future reference.

The Power-Sonic PS-612 is a valve-regulated, spill-proof sealed lead acid battery designed for various applications requiring reliable 6-volt power. Its maintenance-free design ensures ease of use and long service life.

2. Product Features

• Sealed, Maintenance-Free Design: Valve-regulated, spill-proof construction allows safe operation in any position. No need to add electrolyte.
• Absorbent Glass Mat (AGM) Technology: Provides superior performance and reliability.
• High Discharge Rate: Capable of delivering power efficiently when needed.
• Wide Operating Temperature: Designed to perform across a broad range of temperatures.
• Long Service Life: Engineered for durability and extended operational life.
• Deep Discharge Recovery: Ability to recover from deep discharge cycles.
• Easy Handling: No special handling precautions or shipping containers required due to leak-proof construction.
• Certifications: Approved for transport by air (D.O.T., I.A.T.A., F.A.A., C.A.B. certified) and U.L. recognized (file number MH 20845).

3. Safety Information

WARNING: Lead-acid batteries contain sulfuric acid and lead, which are hazardous materials. Improper handling can cause serious injury or damage.

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling batteries.
• Do not short-circuit the battery terminals. This can cause severe burns, fire, or explosion.
• Keep batteries away from open flames, sparks, and heat sources.
• Do not disassemble, puncture, or incinerate the battery.
• In case of contact with electrolyte, flush immediately with water and seek medical attention.
• Store batteries in a cool, dry, well-ventilated area, away from direct sunlight and extreme temperatures.
• Keep out of reach of children.

4. Setup and Installation

The Power-Sonic PS-612 battery features F1 terminals for connection. Ensure proper polarity when connecting the battery to your device or charging system.

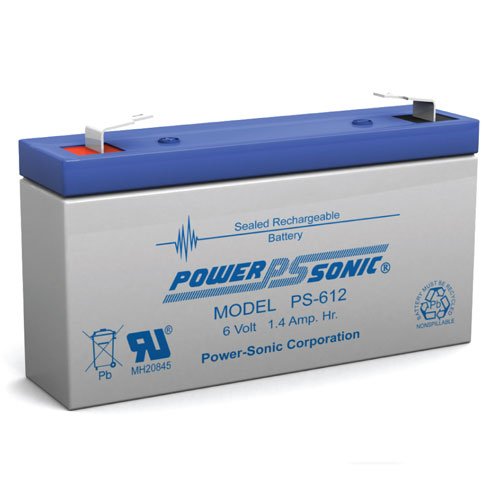

Figure 1: Power-Sonic PS-612 6V 1.4AH Sealed Lead Acid Battery. This image shows the overall appearance of the battery.

Figure 2: Close-up view of the F1 terminal on the Power-Sonic PS-612 battery, shown with a ruler for scale. The F1 terminal is approximately 0.187 inches (4.75 mm) wide.

1. Inspect the Battery: Before installation, visually inspect the battery for any signs of damage, cracks, or leaks. Do not use a damaged battery.
2. Prepare Connections: Ensure that the terminals of your device or charger are clean and free of corrosion.
3. Connect Terminals: Connect the positive (+) terminal of the battery to the positive terminal of your device/charger, and the negative (-) terminal of the battery to the negative terminal of your device/charger. Ensure connections are secure to prevent arcing or poor performance.
4. Secure Battery: Place the battery in a stable position where it will not be subject to excessive vibration or impact.

5. Operating Instructions

The Power-Sonic PS-612 is a rechargeable battery. For optimal performance and longevity, follow these guidelines:

• Initial Charge: It is recommended to fully charge the battery before its first use.
• Charging: Use a charger specifically designed for 6V sealed lead acid batteries. Overcharging or undercharging can reduce battery life. Refer to your charger's manual for specific instructions.
• Discharge: Avoid deep discharges whenever possible. While the battery has good deep discharge recovery, consistently discharging it to very low levels can shorten its lifespan.
• Operating Temperature: Operate the battery within its specified temperature range to ensure optimal performance and safety.

6. Maintenance

The Power-Sonic PS-612 is a maintenance-free battery, meaning it does not require electrolyte replenishment. However, some general care practices can help ensure its longevity:

• Keep Clean: Periodically clean the battery casing and terminals with a dry cloth to remove dust and dirt. Ensure terminals are free of corrosion.
• Regular Charging: If the battery is not in regular use, recharge it periodically (e.g., every 3-6 months) to prevent self-discharge and maintain its capacity.
• Storage: When storing the battery for extended periods, ensure it is fully charged and stored in a cool, dry place. Avoid storing in extreme temperatures.

7. Troubleshooting

If you experience issues with your Power-Sonic PS-612 battery, consider the following common troubleshooting steps:

• Battery Not Holding Charge:
  • Ensure the charger is functioning correctly and is compatible with 6V SLA batteries.
  • Check for loose or corroded connections between the battery and charger/device.
  • The battery may have reached the end of its service life.
• Device Not Powering On:
  • Verify the battery is fully charged.
  • Check all connections for proper polarity and security.
  • Ensure the device itself is functioning correctly.
• Overheating During Charge:
  • Immediately disconnect the charger.
  • Ensure the charger is appropriate for the battery.
  • Charge in a well-ventilated area. If overheating persists, discontinue use and consult a professional.

8. Specifications

9. Disposal Information

WARNING: Do not dispose of lead-acid batteries in household waste.

Lead-acid batteries contain hazardous materials and must be recycled properly. Contact your local waste management authority or battery recycling center for information on proper disposal and recycling options in your area. Many retailers that sell batteries also offer recycling services.

10. Warranty and Support

For warranty information and technical support, please refer to the official Power Sonic website or contact their customer service directly. Keep your purchase receipt as proof of purchase.

Note: Specific warranty terms and conditions may vary and are subject to change by the manufacturer.
