Introduction
This instruction manual provides essential information for the proper installation, operation, and maintenance of your CORNAT TECB3387 Shower Slide with Rotary Button. Please read this manual thoroughly before use to ensure safe and efficient functionality. This product is designed to hold a shower hose with a cone fitting on an 18mm diameter shower bar, allowing for adjustable shower head positioning.
Image: Main view of the CORNAT TECB3387 Shower Slide, showcasing its chrome finish and rotary button.
Safety Information
- Ensure the shower bar diameter is 18mm for proper fit and secure operation.
- Do not overtighten the rotary button, as this may damage the product or the shower bar.
- Regularly check the slide for secure attachment to prevent accidental slippage of the shower head.
- Keep out of reach of children.
Package Contents
- 1 x CORNAT TECB3387 Shower Slide with Rotary Button
Setup and Installation
Follow these steps to install the shower slide onto your shower bar:
- Prepare the Shower Bar: Ensure your shower bar has a diameter of 18mm and is clean and free of obstructions.
- Loosen the Rotary Button: Rotate the clear rotary button on the shower slide counter-clockwise to loosen the internal gripping mechanism.
- Slide onto Bar: Carefully slide the shower slide onto the 18mm shower bar from either end.
- Position and Secure: Move the slide to your desired height. Rotate the rotary button clockwise to tighten and secure the slide firmly in place on the bar. Do not overtighten.
- Attach Shower Hose: Insert your shower hose (with a cone fitting) into the holder on the shower slide.
Image: Side view of the shower slide, illustrating the opening where it attaches to the shower bar.
Operation
The CORNAT TECB3387 Shower Slide allows for easy adjustment of your shower head's position:
- Adjusting Height: To change the height of the shower head, loosen the rotary button by turning it counter-clockwise. Slide the holder up or down the shower bar to the desired position, then tighten the rotary button clockwise until secure.
- Adjusting Angle: The shower head holder features a 360-degree swivel function, allowing you to adjust the angle of your shower head for optimal comfort. Simply pivot the holder to the desired angle.

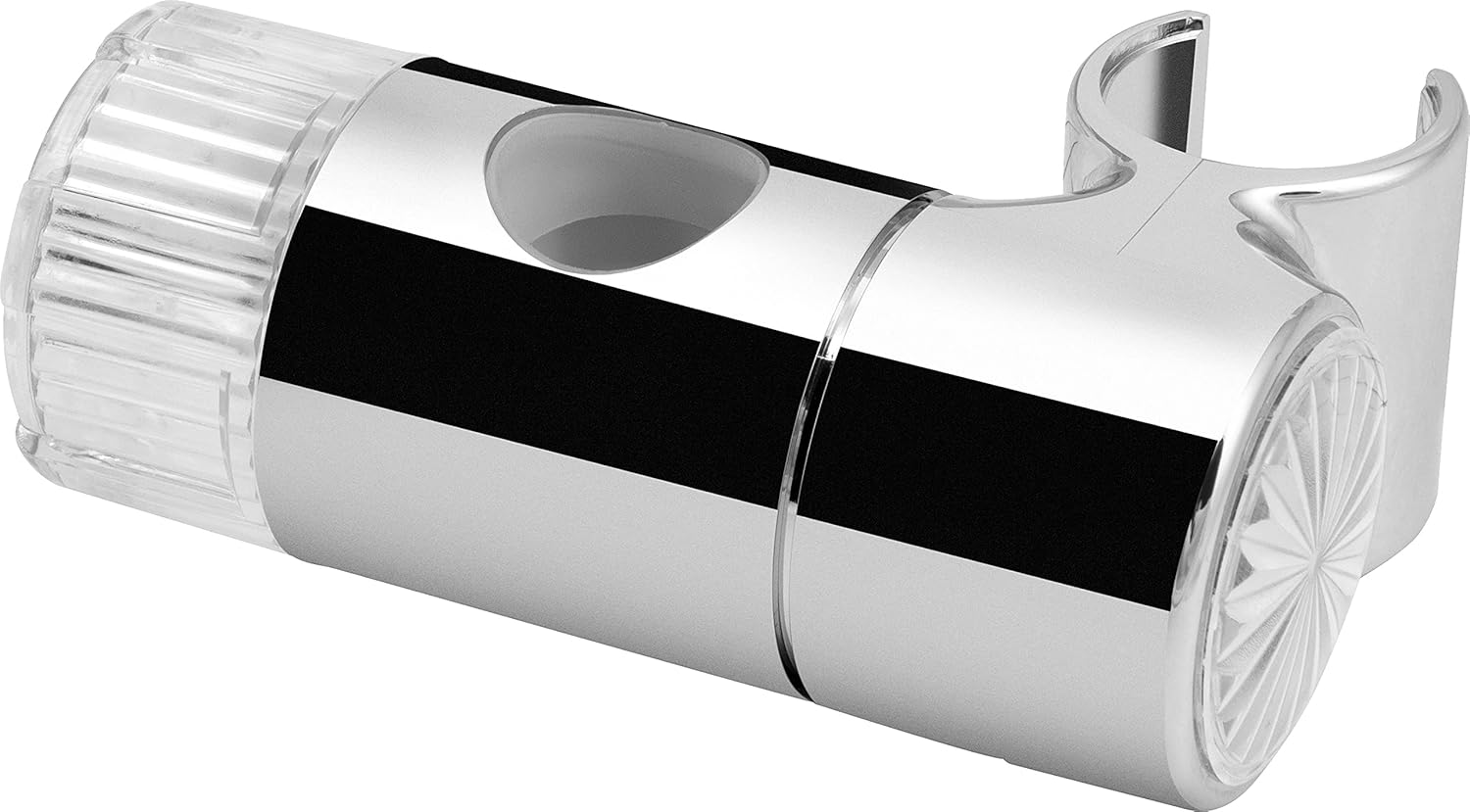

Image: Angled view of the shower slide, highlighting the clear rotary button used for adjustment.
Maintenance
To ensure the longevity and appearance of your CORNAT TECB3387 Shower Slide:
- Clean regularly with a soft cloth and mild, non-abrasive cleaner.
- Avoid using harsh chemicals, abrasive pads, or strong detergents, as these can damage the chrome finish and plastic components.
- Rinse thoroughly with water after cleaning and dry with a soft cloth.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Shower slide does not hold position and slips down the bar. | Rotary button not tightened sufficiently. Incorrect shower bar diameter. Worn internal gripping mechanism. | Ensure the rotary button is tightened firmly. Verify your shower bar is exactly 18mm in diameter. If the issue persists after proper tightening and diameter verification, the product may be faulty or incompatible with your specific shower bar material/finish. |
| Shower hose does not fit into the holder. | Shower hose fitting is not conical or is too large. | Ensure your shower hose has a standard conical fitting. This product is designed for standard conical shower hose fittings. |
Specifications
- Brand: Cornat
- Model: TECB3387
- Material: Plastic
- Finish Type: Chrome-plated
- Compatibility: For shower bars with 18mm diameter
- Shower Hose Compatibility: For shower hoses with cone fitting
- Special Feature: 360-degree swivel function for shower head angle adjustment
- Item Weight: Approximately 2.82 ounces (80 grams)
Warranty and Support
Specific warranty information for the CORNAT TECB3387 Shower Slide is not provided in this manual. For warranty details, technical support, or replacement parts, please contact Cornat customer service directly or refer to the product packaging for contact information.
Manufacturer: Conmetall
