FEL-PRO ES 72476 Circular Plug Instruction Manual

1. Product Overview

The FEL-PRO ES 72476 Circular Plug is designed to provide 100% vehicle sealing. Manufactured with application-specific materials, this plug ensures reliable performance and durability for automotive sealing solutions.

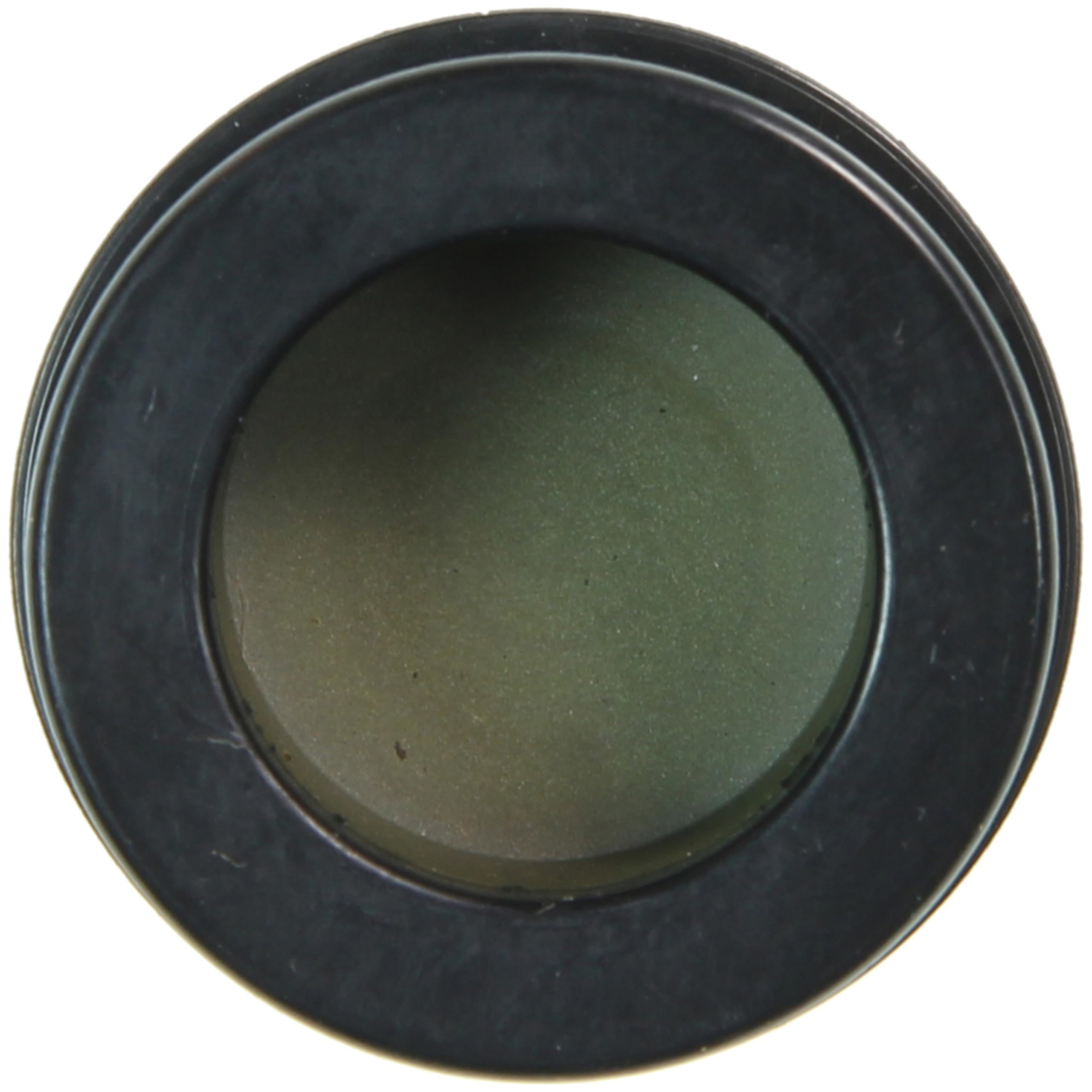

Image 1.1: Front view of the FEL-PRO ES 72476 Circular Plug. This image displays the circular plug with its sealing rings, highlighting its robust construction.

2. Compatibility

This circular plug is compatible with a range of vehicles. It is crucial to verify compatibility with your specific vehicle's year, make, model, engine, and trim before installation.

Compatible Vehicles:

• 2001-2005 Acura EL
• 2013-2015 Acura ILX
• 1990-2001 Acura Integra
• 1994-2001 Acura Integra
• 2011-2016 Honda CR-Z
• 2009-2014 Honda Fit
• 2001-2005 Honda Civic
• 2002-2004 Honda Civic
• 2012-2015 Honda Civic
• 1997-2001 Honda CR-V
• 1992-1996 Honda models (specific models not detailed in source, verify fitment)

Always consult your vehicle's service manual or a qualified mechanic to confirm part suitability.

3. What's in the Box

The package for the FEL-PRO ES 72476 Circular Plug typically includes:

• One (1) FEL-PRO ES 72476 Circular Plug

4. Installation Guidelines

Proper installation is critical for the effective sealing and longevity of the circular plug. It is recommended that installation be performed by a qualified technician or individuals with appropriate automotive repair experience.

1. Safety First: Ensure the vehicle is safely supported and the engine is cool before beginning any work. Disconnect the battery if necessary.
2. Locate the Old Plug: Identify the camshaft plug location on your vehicle's cylinder head. Refer to your vehicle's service manual for exact positioning.
3. Remove Old Plug: Carefully remove the existing circular plug. This may require prying or gentle tapping. Be cautious not to damage surrounding engine components.
4. Clean Sealing Surface: Thoroughly clean the mating surface on the cylinder head. Remove all old gasket material, oil residue, and debris to ensure a clean, dry surface for the new plug.
5. Inspect New Plug: Examine the FEL-PRO ES 72476 Circular Plug for any manufacturing defects or damage. Ensure the sealing rings (O-rings) are intact and properly seated.
6. Lubricate (Optional): Some installers prefer to apply a thin layer of clean engine oil or a compatible sealant to the O-rings of the new plug to aid in installation and sealing. Consult your vehicle's service manual or the plug manufacturer's recommendations.
7. Install New Plug: Carefully align the new circular plug with the opening. Apply even pressure to seat the plug fully. Ensure it is flush with the cylinder head surface and the sealing rings are not pinched or damaged.
8. Verify Seating: Double-check that the plug is securely seated and properly aligned.
9. Reassemble: Reinstall any components that were removed to access the plug.
10. Test for Leaks: After installation, start the engine and allow it to reach operating temperature. Visually inspect the area around the new plug for any signs of oil leaks.

Important Note: For specific torque specifications or detailed procedures, always refer to your vehicle's official service manual.

Installation Video Reference:

5. Operating Principles

Once correctly installed, the FEL-PRO ES 72476 Circular Plug functions as a critical sealing component in the engine's cylinder head. Its primary role is to seal off an opening in the camshaft area, preventing oil leaks and maintaining proper engine lubrication. The application-specific design and materials ensure a tight, durable seal under various operating conditions.

6. Maintenance

The FEL-PRO ES 72476 Circular Plug is designed for long-term durability and typically requires minimal maintenance after proper installation. However, periodic visual inspection is recommended as part of routine vehicle maintenance:

• Visual Inspection: During oil changes or other under-hood checks, visually inspect the area around the circular plug for any signs of oil seepage or leaks.
• Cleanliness: Keep the engine bay clean to easily spot any potential leaks.
• Addressing Leaks: If a leak is detected, it should be addressed promptly by a qualified mechanic to prevent further engine damage or performance issues.

7. Troubleshooting

If you experience issues after installing the FEL-PRO ES 72476 Circular Plug, consider the following troubleshooting steps:

• Persistent Oil Leak:
  • Improper Seating: The plug may not be fully or correctly seated. Re-check alignment and ensure it is flush.
  • Damaged O-ring: The O-ring might have been pinched or damaged during installation. Remove and inspect the plug; replace if necessary.
  • Surface Contamination: The mating surface on the cylinder head might not have been thoroughly cleaned, leading to an incomplete seal. Ensure all old gasket material and oil residue are removed.
  • Additional Sealing: In some cases, as noted by user experiences, an additional O-ring or a thin layer of RTV sealant (compatible with engine oil) might be required around the outer lip of the plug for a complete seal, especially if the engine block has minor imperfections. This should be done with caution and only if recommended by a professional or vehicle-specific forums.
• Difficulty Installing:
  • Incorrect Part: Double-check that the part number ES 72476 is indeed the correct plug for your specific vehicle model and engine.
  • Alignment Issues: Ensure the plug is perfectly aligned before attempting to press it into place. Do not force it, as this can damage the plug or the engine block.

If troubleshooting steps do not resolve the issue, consult a professional automotive mechanic.

8. Specifications

9. Warranty and Support

Fel-Pro products are manufactured to high-quality standards. For information regarding product warranty, please refer to the official Fel-Pro website or contact their customer support directly. Keep your purchase receipt as proof of purchase.

For technical assistance or further inquiries, please visit the Fel-Pro Store on Amazon or their official corporate website.
