Introduction
The Corbin Russwin DC3000 Series door closer is designed for reliable door control in various applications. This cast iron door closer ensures consistent latching for security and compliance with fire codes, while offering ease of operation and precise adjustability to meet barrier-free code requirements. It is suitable for high-traffic environments and can accommodate up to a full 180-degree door opening. This manual provides essential information for proper installation, operation, and maintenance of your DC3000 Series door closer.
Safety Information
- Read all instructions: Before installation and operation, carefully read and understand all instructions in this manual.
- Professional installation recommended: If you are unsure about any step, consult a qualified professional for installation.
- Use appropriate tools: Ensure you have the correct tools for installation to prevent damage to the product or injury.
- Secure mounting: Verify that the door and frame are structurally sound to support the door closer.
- Avoid pinch points: Keep hands and fingers clear of moving parts during installation and adjustment.
Package Contents
Verify that all components are present before beginning installation:
- 1 x Corbin Russwin DC3000 Series Door Closer (Silver Aluminum finish)
- Parallel arm mounting hardware
- Sex nuts and bolts for secure attachment
- Quick-Install mounting bracket
Setup and Installation
The Corbin Russwin DC3000 Series door closer is designed for screw-in installation, typically using a parallel arm mounting configuration. The Quick-Install mounting bracket simplifies the process, reducing installation time and potential errors.
- Prepare the door and frame: Ensure the mounting surface is clean, flat, and structurally sound.
- Position the mounting bracket: Determine the correct location for the Quick-Install mounting bracket on the door frame or door, depending on the desired arm configuration (e.g., parallel arm). Mark the screw holes.
- Drill pilot holes: Drill pilot holes according to the marked positions and recommended drill bit size for the provided sex nuts and bolts.
- Attach the mounting bracket: Securely fasten the Quick-Install mounting bracket using the provided sex nuts and bolts.
- Mount the closer body: Attach the main door closer body to the mounting bracket.
- Install the arm assembly: Connect the parallel arm assembly to the closer body and the door frame or door, following the specific instructions for your chosen configuration. Ensure all connections are tight.

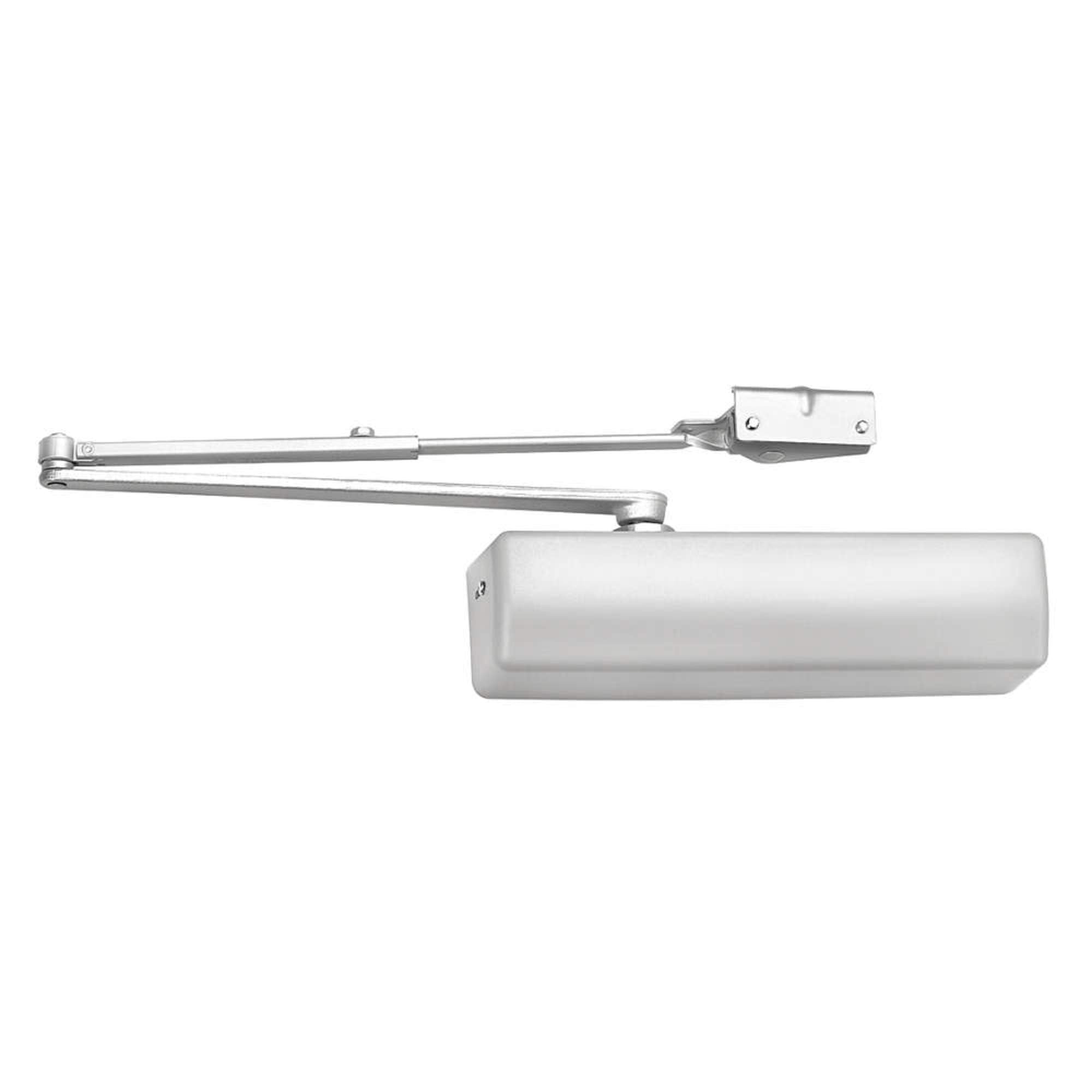

This image shows the Corbin Russwin DC3000 Series door closer in its silver aluminum finish, illustrating its compact design and mounting points for installation.
Operation and Adjustment
The DC3000 Series door closer features tapered valves that allow for precise adjustment of the closing speed and latching action. These adjustments are crucial for optimal performance and compliance with accessibility standards.
- Closing Speed Adjustment: Locate the speed adjustment valve(s) on the closer body. Turning the valve clockwise will decrease the closing speed (slower), and turning it counter-clockwise will increase the closing speed (faster). Adjust gradually and test the door's closing action.
- Latching Speed Adjustment: A separate valve may control the final latching speed, which is the speed at which the door closes the last few inches before engaging the latch. Adjust this to ensure the door latches securely without slamming.
- Backcheck (if applicable): Some models include a backcheck feature that provides resistance when the door is opened forcefully beyond a certain point, preventing damage to the door or wall. Adjust this valve to control the intensity of the backcheck.
Always make small adjustments and test the door's operation after each change. The door closer allows for a full 180-degree door opening, depending on the installation type and door frame configuration.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your Corbin Russwin DC3000 Series door closer.
- Periodic Inspection: Annually inspect the door closer and its mounting hardware for any signs of wear, looseness, or damage. Check for oil leaks around the closer body.
- Cleaning: Wipe the closer body and arm assembly with a soft, damp cloth to remove dust and grime. Avoid using abrasive cleaners or solvents.
- Hydraulic Fluid: The one-piece seamless steel spring tube is designed to seal in hydraulic fluid, minimizing the need for external maintenance of the fluid. Do not attempt to open the closer body.
- Tighten Fasteners: If any screws or bolts appear loose, carefully tighten them. Do not overtighten.
Troubleshooting
If you encounter issues with your door closer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Door closes too fast/slow | Improper speed valve adjustment | Adjust the closing speed valve(s) as described in the Operation section. |
| Door does not latch | Latching speed too slow or incorrect door alignment | Increase the latching speed. Check door and frame alignment; adjust hinges if necessary. |
| Door slams shut | Latching speed too fast | Decrease the latching speed. |
| Oil leakage | Damaged closer body or seals | Contact customer support. Do not attempt to repair internally. |
| Closer feels loose | Loose mounting screws or bolts | Inspect and tighten all mounting hardware. |
Specifications
| Feature | Specification |
|---|---|
| Model Number | DC3210 689 M54 |
| Material | Cast Iron |
| Finish | Silver Aluminum Painted |
| Installation Type | Screw-In (Parallel Arm Mounting) |
| Item Weight | 10.5 pounds |
| Product Dimensions | 13 x 7 x 3 inches |
| Recommended Uses | Controlled door closing in buildings |
| Compliance | Meets or exceeds ANSI/BHMA A156.4, Grade 1 requirements; UL10C, UBC compliant |
| Door Opening Angle | Up to full 180 degrees |
Warranty and Support
The Corbin Russwin DC3000 Series door closer is backed by a 5-year limited warranty. This warranty covers defects in materials and workmanship under normal use and service.
For warranty claims, technical assistance, or further support, please contact Corbin Russwin customer service through their official website or authorized distributors. Please have your product model number (DC3210 689 M54) and purchase information available when contacting support.
