Introduction

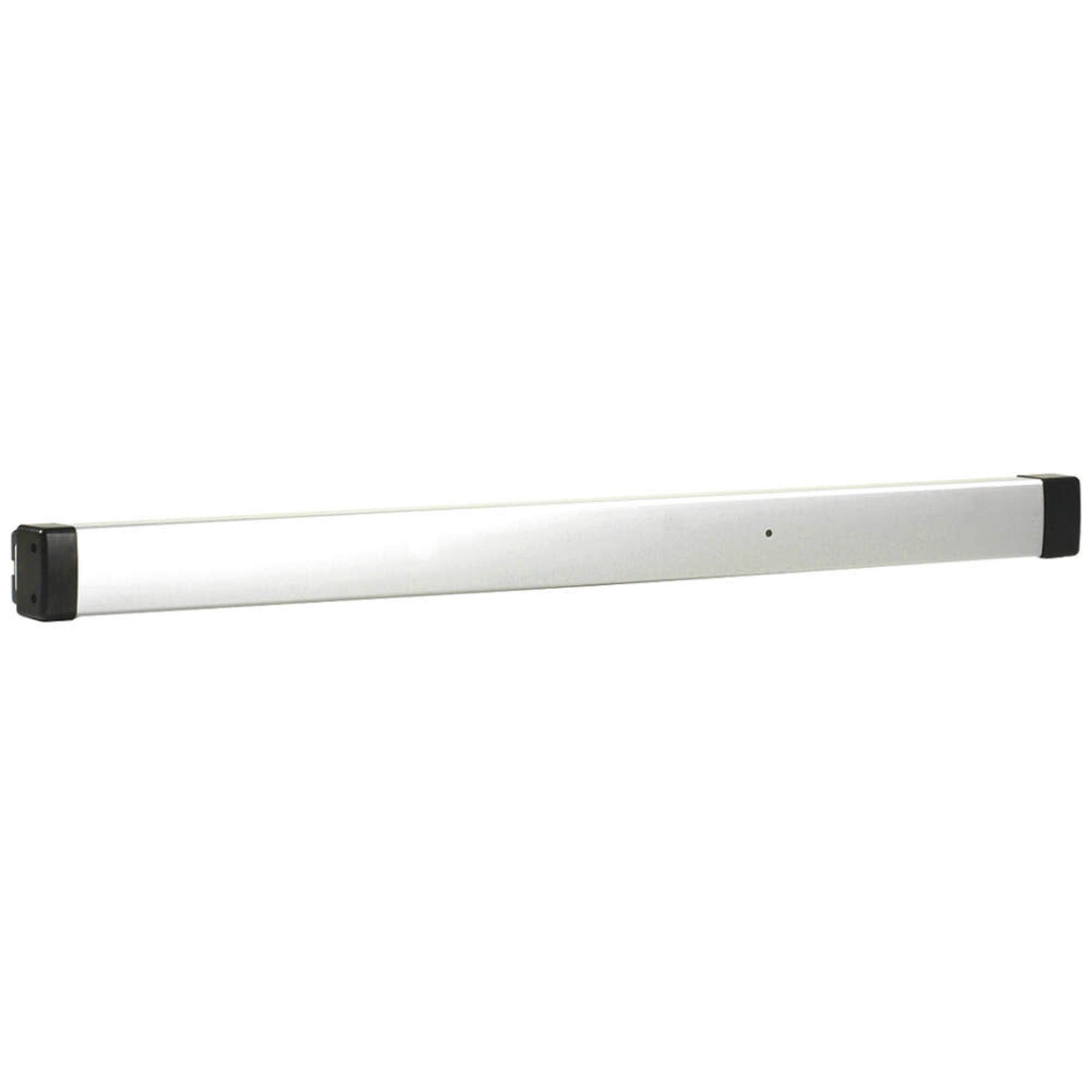

This manual provides detailed instructions for the installation, operation, and maintenance of the Adams Rite 8800 Series Electric Latch Retraction Narrow Stile Exit Device. This device is designed for 36-inch aluminum doors, offering enhanced security and controlled access.
Key features include:
- Patented "star wheel" bolt interlocks door to frame for robust security.
- Pushbar is anodized or clad, not plated, ensuring durability and a variety of finishes.
- Designed for easy installation.
- Unobtrusive design maintains clean sight lines.
- Strong, durable construction provides a high level of security.
- Electric Latch Retraction (EL) option uses a solenoid for instantaneous unlocking and locking from a remote location or access control device.
- Fail-secure electrical operation allows use on fire-rated and life-safety applications; device automatically relocks upon power failure.
Setup and Installation
Proper installation is crucial for the safe and effective operation of the Adams Rite 8800 Series exit device. It is recommended that installation be performed by a qualified professional.
Required Tools and Materials:
- Drill and appropriate drill bits
- Screwdrivers (Phillips and flathead)
- Measuring tape
- Pencil or marker
- Safety glasses
- Door cord (Note: This device does not include a door cord and must be ordered separately for electrical connection.)
- Power supply (12 or 24 VDC, transformer and rectifier or other DC power supply)
Installation Steps:
- Prepare the Door: Ensure the door is properly sized (36 inches) and prepared according to the provided templates (not included in this manual, refer to packaging). Mark all necessary drilling locations for the exit device and strike plate.
- Mount the Exit Device: Secure the main body of the exit device to the door using the provided self-tapping screws. Ensure it is level and aligned correctly.
- Install the Strike Plate: Mount the hardened steel strike plate to the door frame, aligning it precisely with the exit device's bolt mechanism. Test the mechanical operation before proceeding with electrical connections.
- Electrical Connection (for EL option):
- a. Route the door cord (purchased separately) through the door and frame to the solenoid within the pushbar and to the power supply.
- b. Connect the wiring to the solenoid in the pushbar.
- c. Connect the other end of the wiring to a 12 or 24 VDC power supply. Ensure correct polarity.
- d. If connecting to an access control system, follow the system's specific wiring diagrams.
- Test Operation:
- a. Manually depress the pushbar to ensure smooth mechanical retraction of the latch.
- b. Apply power and test the electric latch retraction function. Verify that the latch retracts when power is applied (or signal from access control) and extends when power is removed (fail-secure).
- c. Check for proper dogging function (with hex key or optional cylinder dogging).
Operation
Manual Egress:
To exit, simply depress the pushbar. The latch bolt will retract, allowing the door to open. Release the pushbar to allow the latch bolt to extend and secure the door.
Electric Latch Retraction (EL Option):
When the electric latch retraction (EL) option is activated (e.g., via an access control system, remote button, or timer), the solenoid within the pushbar will retract the latch bolt, keeping the door unlocked for a specified period or until the signal is removed. This allows for hands-free entry or exit without depressing the pushbar.
Upon removal of the electrical signal, the latch bolt will automatically extend, securing the door. This fail-secure design ensures the door remains locked in the event of a power failure.
Dogging Function:
The dogging feature allows the pushbar to be held in the retracted position, keeping the door unlocked without electrical power. This is useful for periods of high traffic.
- Standard Dogging: Insert a hex key into the dogging hole (typically located on the underside of the pushbar) and turn to engage the dogging mechanism. Turn in the opposite direction to disengage.
- Cylinder Dogging (Optional): If equipped, insert the appropriate key into the cylinder and turn to engage or disengage the dogging mechanism.
- Electric Dogging (Optional): If equipped, this feature allows for remote engagement/disengagement of the dogging function via an electrical signal.
Maintenance
Regular maintenance ensures the longevity and reliable operation of your Adams Rite 8800 Series exit device.
Routine Checks (Monthly):
- Functionality Test: Manually depress the pushbar to ensure smooth operation and full latch retraction. Verify that the latch extends fully when the pushbar is released.
- Electrical Test: If equipped with EL option, test the electric retraction function to ensure it activates and deactivates correctly.
- Fastener Check: Inspect all visible screws and fasteners for tightness. Tighten any loose fasteners.
- Cleanliness: Wipe down the pushbar and device housing with a soft, damp cloth. Avoid abrasive cleaners or solvents.
Annual Maintenance:
- Lubrication: Apply a small amount of silicone-based lubricant to moving parts within the mechanism, such as the latch bolt and dogging components. Do not over-lubricate.
- Wiring Inspection: For EL models, inspect all wiring connections for signs of wear, fraying, or corrosion. Ensure all connections are secure.
- Strike Plate Alignment: Verify that the strike plate remains properly aligned with the latch bolt. Adjust if necessary to prevent binding or excessive wear.
If any issues are detected during maintenance, refer to the Troubleshooting section or contact customer support.
Troubleshooting
This section addresses common issues you might encounter with your Adams Rite 8800 Series exit device.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pushbar is stiff or difficult to depress. | Accumulated dirt/debris, lack of lubrication, misaligned components. | Clean the device thoroughly. Apply lubricant to moving parts. Check for proper alignment of the device and strike plate. |
| Latch bolt does not retract fully. | Obstruction, worn components, improper installation. | Inspect for any physical obstructions. Check for worn parts. Verify installation alignment. |
| Latch bolt does not extend fully (door remains unlocked). | Dogging engaged, spring issue, obstruction. | Check if dogging is engaged and disengage if necessary. Inspect for obstructions. If a spring issue is suspected, contact support. |
| Electric Latch Retraction (EL) not working. | No power, faulty wiring, faulty solenoid, incorrect voltage. | Check power supply. Inspect all wiring connections for continuity and correct polarity. Verify correct voltage (12 or 24 VDC). If issues persist, the solenoid may be faulty; contact support. |
| Device relocks immediately after power is applied (EL option). | Incorrect wiring, power supply issue, access control system misconfiguration. | Verify wiring connections. Ensure the power supply is stable. Check the configuration of the access control system for proper signal duration. |
If you are unable to resolve an issue using this guide, please contact Adams Rite customer support or a qualified locksmith.
Specifications
Below are the technical specifications for the Adams Rite 8800 Series Electric Latch Retraction Narrow Stile Exit Device (Model: 8802EL-36-12).
| Feature | Detail |
|---|---|
| Model Number | 8802EL-36-12 |
| Device Type | Electric Latch Retraction Narrow Stile Exit Device |
| Door Size Compatibility | 36 inches |
| Finish | Dark Bronze Anodized (Pushbar: Anodized or clad) |
| Material | Extruded aluminum pushbar, hardened steel strike |
| Electrical Operation | 12 or 24 VDC (Fail-secure) |
| Dogging | Standard hex key dogging, optional cylinder dogging, optional electric dogging |
| Fasteners | Standard self-tapping screws |
| Item Weight | 9.15 pounds |
| Package Dimensions | 53.5 x 4.9 x 4.7 inches |
| Included Components | Alarm (as per product specifications) |
Warranty Information
The Adams Rite 8800 Series Electric Latch Retraction Narrow Stile Exit Device is covered by a Five Year Limited Warranty from the date of purchase.
This warranty covers defects in materials and workmanship under normal use and service. It does not cover damage resulting from improper installation, misuse, abuse, accident, neglect, unauthorized repair or modification, or acts of nature. For full warranty terms and conditions, please refer to the documentation included with your product or contact Adams Rite customer support.
Customer Support
For technical assistance, warranty claims, or further information regarding your Adams Rite 8800 Series exit device, please contact Adams Rite customer support.
Please have your model number (8802EL-36-12) and date of purchase available when contacting support.
You can typically find contact information on the official Adams Rite website or within the product packaging.
