1. Introduction
This manual provides essential information for the safe and efficient operation of your Grundfos 59896341 Single Phase Circulating Pump. Please read these instructions carefully before installation, operation, or maintenance to ensure proper function and longevity of the product. This pump is designed for circulating water in heating and cooling systems.
2. Safety Information
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Keep this manual for future reference.
- Electrical Safety: Ensure the pump is connected to a properly grounded 115 Volt power supply. Disconnect power before performing any service or maintenance.
- Hot Surfaces: The pump and connected piping may become hot during operation. Avoid direct contact to prevent burns.
- Installation: Installation should be performed by a qualified professional in accordance with local codes and regulations.
- Water Pressure: Do not operate the pump without water in the system. Ensure the system is properly filled and vented.
- Moving Parts: Keep hands and loose clothing away from moving parts during operation.
3. Product Overview
The Grundfos 59896341 is a robust single-phase circulating pump designed for reliable performance. It features a 1/25HP, 115V, 3-speed motor and is flanged with an integral check valve. Key components include carbon thrust bearings, ceramic shaft and radial bearings, and an impeller made from corrosion-resistant material. The rotor cam and bearing plate are stainless steel, while the pump housing is typically cast iron, bronze, or stainless steel depending on the model variant.

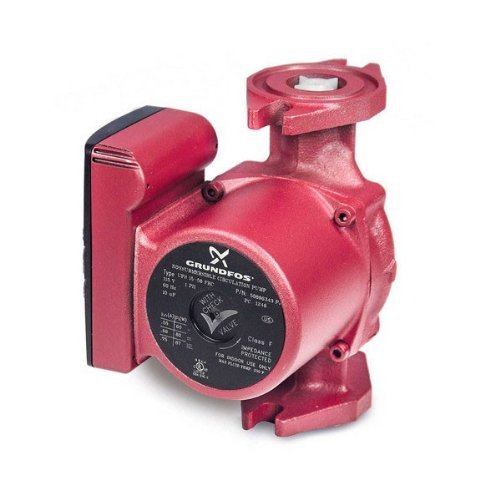

Figure 1: Grundfos 59896341 Single Phase Circulating Pump. This image displays the typical appearance of the pump, often featuring a red housing and a compact design suitable for various plumbing applications.
4. Installation and Setup
Proper installation is crucial for the pump's performance and longevity. Ensure the system is depressurized and drained before beginning installation.
4.1 Pipe Connections
The pump supports various pipe connection types:
- F: Flange connection
- FR: Flange ratio 90
- U: Union connection
- 5: 1/2 inch internal sweat connection
- 7: 3/4 inch internal sweat connection
- N: NPT Female threaded fitting
- 7P: 3/4 inch x Female connection
4.2 Pump Housing Materials
The pump housing material varies by model:
- B: Bronze housing
- S: Stainless steel housing
- No letter: Cast iron housing (standard)
Mount the pump securely in the piping system, ensuring it is level and supported. Use appropriate sealing materials for all connections to prevent leaks. After installation, slowly fill the system and vent any trapped air before applying power.
5. Operation
The Grundfos 59896341 pump features a 3-speed motor, allowing adjustment of flow rate to suit system requirements. The speed setting is typically controlled via a switch on the motor housing.
- Initial Start-up: After installation and system filling, ensure all air is purged from the system. Turn on the power supply to the pump.
- Speed Selection: Select the desired operating speed (1, 2, or 3) using the selector switch. Higher speeds provide greater flow and pressure.
- Monitoring: Observe the system for proper circulation and listen for any unusual noises.
The integral check valve prevents backflow in the system, ensuring efficient operation.
6. Maintenance
The Grundfos circulating pump is designed for minimal maintenance. However, periodic checks can help ensure optimal performance.
- Annual Inspection: Annually inspect the pump for any signs of leaks, corrosion, or unusual wear.
- Noise Check: Listen for any abnormal noises, which could indicate bearing wear or cavitation.
- Electrical Connections: Periodically check electrical connections for tightness and signs of overheating.
- Cleaning: Keep the exterior of the pump clean and free from debris to ensure proper cooling.
Always disconnect power before performing any maintenance.
7. Troubleshooting
This section provides solutions to common issues you might encounter with your circulating pump.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power supply; Motor seized; Electrical fault | Check power connection and circuit breaker; Consult a qualified electrician; Manually turn rotor if accessible (with power off). |
| Pump runs but no flow | Air in system; Closed valves; Impeller blockage | Vent the system; Open all necessary valves; Inspect impeller for debris (power off). |
| Excessive noise/vibration | Air in system; Cavitation; Worn bearings; Improper mounting | Vent the system; Ensure adequate water pressure; Contact service for bearing replacement; Check mounting for stability. |
| Leakage from pump | Loose connections; Damaged seals | Tighten pipe connections; Replace seals or gaskets (power off). |
8. Specifications
Detailed technical specifications for the Grundfos 59896341 Single Phase Circulating Pump:
| Specification | Value |
|---|---|
| Brand | Grundfos |
| Model Number | 59896341 |
| Power Source | Electric |
| Voltage | 115 Volts |
| Horsepower | 1/25 HP |
| Speeds | 3-Speed |
| Material | Cast Iron (standard housing) |
| Style | Circulator |
| Item Weight | 0.01 Ounces (Note: This weight appears to be an error in the source data and should be verified) |
| UPC | 734721930123, 703765990448 |
| ASIN | B00ET2E452 |
9. Warranty and Support
For warranty information, technical support, or service inquiries regarding your Grundfos 59896341 Single Phase Circulating Pump, please refer to the documentation provided with your purchase or visit the official Grundfos website. It is recommended to have your model number and purchase date available when contacting support.
