Pitco 60125202-C Liquid Propane Gas Valve Instruction Manual

1. Introduction and Safety Information

This manual provides important information for the safe handling, installation, and maintenance of the Pitco 60125202-C Liquid Propane Gas Valve. This component is a genuine OEM (Original Equipment Manufacturer) replacement part designed specifically for Pitco frying equipment. Adherence to these instructions is crucial for ensuring the safety, reliability, and optimal performance of your appliance.

Important Safety Warnings

• Professional Installation Required: Installation, service, and maintenance of gas components must be performed by a qualified, licensed technician. Improper installation or maintenance can lead to property damage, personal injury, or death.
• Disconnect Power and Gas: Always disconnect the appliance from its electrical power supply and shut off the main gas supply before attempting any installation, maintenance, or service.
• Check for Leaks: After any work on gas lines or components, always check for gas leaks using a non-corrosive leak detection solution. Never use an open flame to check for leaks.
• Use Genuine Parts: Only use genuine Pitco OEM replacement parts to ensure compatibility, safety, and to maintain the appliance's warranty.
• Read Appliance Manual: Refer to the specific appliance's instruction manual for comprehensive safety guidelines and operational procedures.

2. Product Overview

The Pitco 60125202-C is a liquid propane (LP) gas valve designed to regulate the flow of gas to the burner in compatible Pitco frying equipment. This valve is critical for the safe and efficient operation of the appliance.

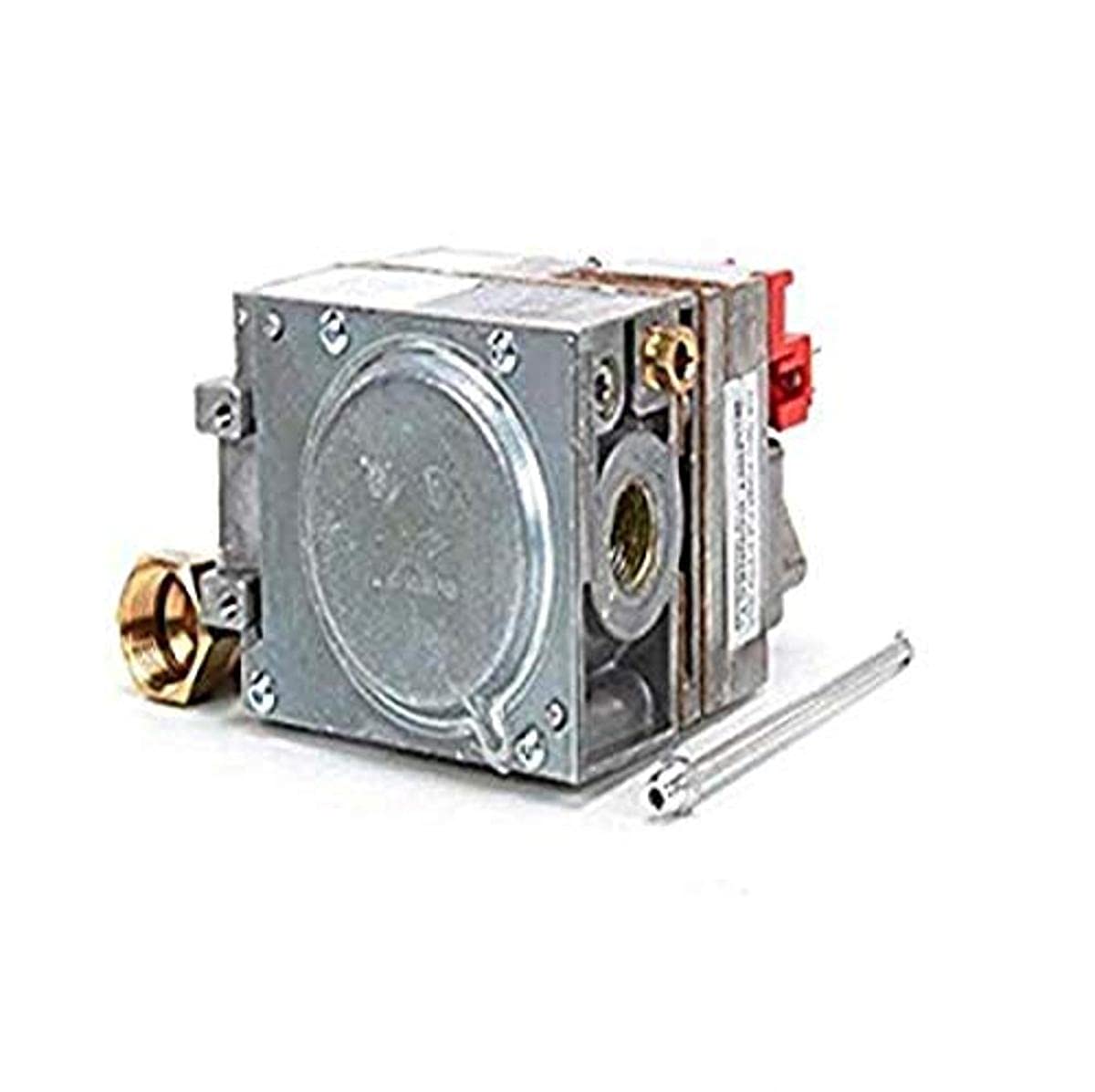

Figure 1: Pitco 60125202-C Liquid Propane Gas Valve. This image displays the gas valve, highlighting its compact design and connection points for gas lines.

3. Setup and Installation

Installation of the Pitco 60125202-C gas valve should only be performed by a qualified and licensed gas technician. The following steps are general guidelines and do not replace the specific instructions provided in the appliance's service manual.

1. Preparation: Ensure the appliance is completely cooled, disconnected from electrical power, and the main gas supply is shut off and locked out.
2. Access: Carefully open the appliance to gain access to the existing gas valve.
3. Removal of Old Valve: Disconnect all gas lines and electrical connections from the old valve. Note the orientation and connection points for proper reinstallation. Remove the old valve.
4. Installation of New Valve: Install the new Pitco 60125202-C gas valve in the same orientation as the old one. Apply appropriate thread sealant (suitable for LP gas) to all threaded gas connections.
5. Connect Lines: Reconnect all gas lines and electrical wiring according to the appliance's wiring diagram. Ensure all connections are secure.
6. Leak Test: Slowly turn on the main gas supply. Use a non-corrosive leak detection solution to check all gas connections for leaks. Bubbles indicate a leak. If a leak is detected, shut off the gas immediately, tighten connections, and re-test. Do not proceed until all leaks are eliminated.
7. Functionality Test: Restore electrical power to the appliance. Follow the appliance's manual to test the operation of the gas valve and burner.

4. Operating Instructions

The Pitco 60125202-C gas valve operates automatically within the frying equipment's control system. It opens to allow gas flow to the burner when heat is required and closes when the desired temperature is reached or a safety condition is detected.

• Appliance Operation: Refer to your specific Pitco frying equipment's user manual for detailed instructions on how to operate the appliance, including startup, temperature setting, and shutdown procedures.
• Normal Function: The gas valve should open smoothly when the thermostat calls for heat and close securely when the heat demand is met.

5. Maintenance

Regular inspection and maintenance of the gas valve and associated components are essential for safe and reliable operation. All maintenance involving gas components should be performed by a qualified technician.

• Annual Inspection: Have a qualified technician inspect the gas valve and all gas connections annually for signs of wear, corrosion, or leaks.
• Cleaning: Keep the area around the gas valve clean and free from grease buildup, dust, and debris. Do not use harsh chemicals or abrasive cleaners directly on the valve.
• Component Replacement: If any part of the gas valve appears damaged or is malfunctioning, it should be replaced immediately with a genuine Pitco OEM part.

6. Troubleshooting

If you experience issues with your Pitco frying equipment related to gas flow, consult the troubleshooting section of your appliance's main manual. For problems specifically related to the gas valve, consider the following:

• No Gas Flow: Ensure the main gas supply is open and that the appliance's thermostat is calling for heat. Check for any tripped safety devices.
• Gas Odor: If you detect a gas odor, immediately shut off the main gas supply, evacuate the area, and contact a qualified gas technician or your gas provider. Do not operate any electrical switches or create any sparks.
• Intermittent Operation: This could indicate an issue with the valve itself, the thermostat, or other control components.

Note: Troubleshooting gas-related issues requires specialized knowledge and tools. Always contact a qualified service technician for diagnosis and repair of gas components.

7. Specifications

8. Warranty and Support

Using genuine Pitco OEM parts, such as the 60125202-C gas valve, is essential for maintaining the warranty of your Pitco frying equipment. Non-OEM parts may void your appliance's warranty and could compromise safety and performance.

For technical support, warranty claims, or to locate a qualified service technician, please contact Pitco customer service or visit the official Pitco website. Have your appliance model and serial number, along with the part number (60125202-C), ready when contacting support.
