1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the Bakers Pride M1558X FMEA Valve Field Retrofit Kit. This kit is a genuine OEM (Original Equipment Manufacturer) replacement part designed for specific Bakers Pride gas-fired transportable ovens. Using genuine OEM parts ensures safety, reliability, and optimal performance of your equipment.
It is crucial to read and understand all instructions before proceeding with installation or maintenance. This kit is intended for use by qualified service technicians only.
2. Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
- Always disconnect power and gas supply to the appliance before performing any service or maintenance.
- Installation and service must be performed by a qualified service technician.
- Use only genuine Bakers Pride OEM replacement parts to ensure compatibility, safety, and to maintain equipment warranty.
- Check for gas leaks after any gas line connection or disconnection.
- Ensure proper ventilation during and after installation.
3. Product Overview
The Bakers Pride M1558X FMEA Valve is a field retrofit kit designed to replace an existing valve in compatible Bakers Pride gas-fired ovens. This kit includes the necessary components for a complete field retrofit, ensuring the continued safe and efficient operation of your appliance.

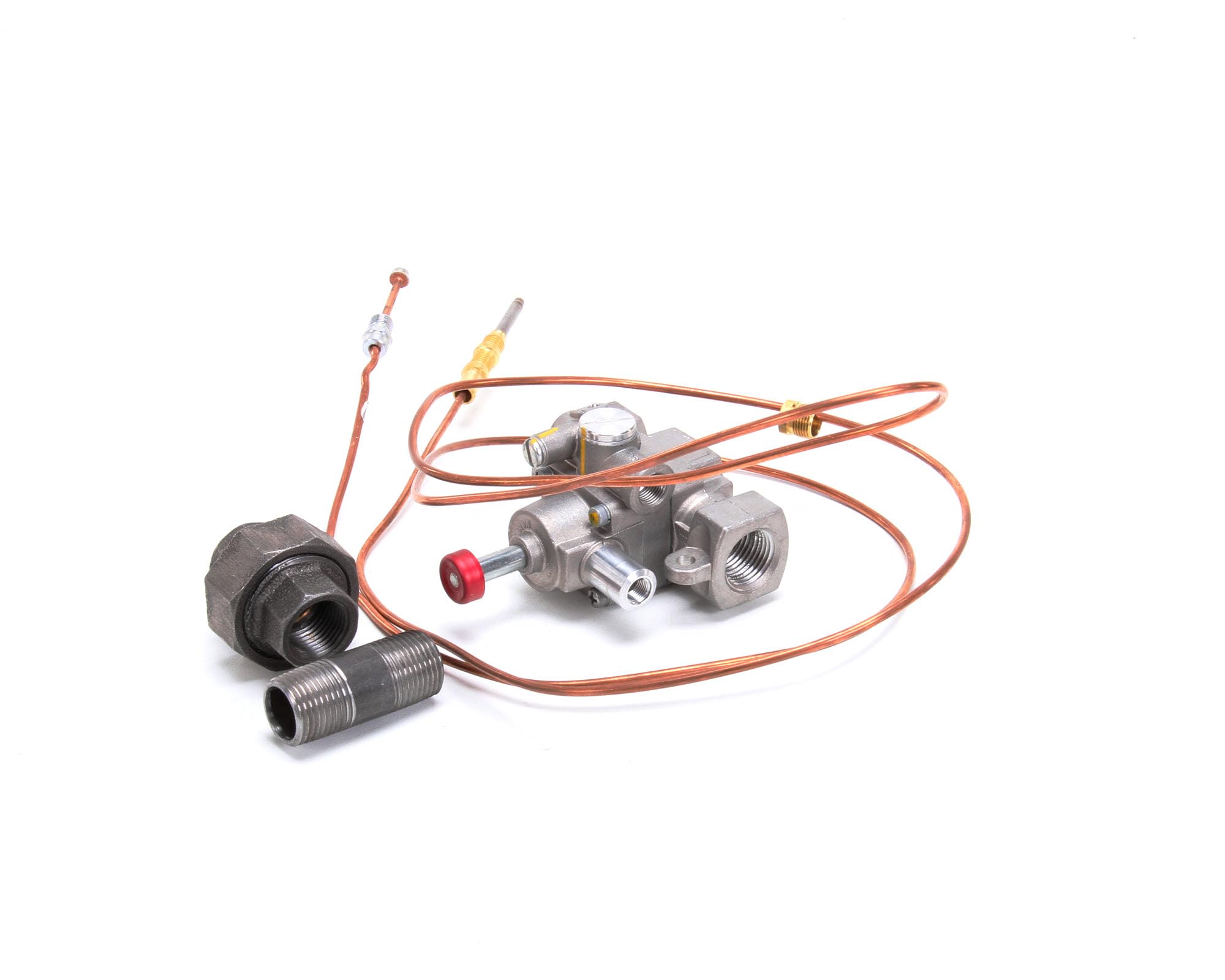

Figure 1: Overview of the Bakers Pride M1558X FMEA Valve Field Retrofit Kit components. This image displays the central valve unit, copper tubing, and various connection fittings.
Key features of this genuine OEM part include:
- Guaranteed Compatibility: OEM parts fit and function exactly like the original components, ensuring a perfect match.
- Higher Quality and Reliability: OEM parts are built to the same quality standards as the original components, reducing the risk of premature failure.
- Safety Assurance: Genuine parts provide peace of mind that your equipment remains safe to use.
- Maintain Your Warranty: Using genuine OEM parts is less likely to void your equipment's warranty.
4. Setup and Installation
Installation of the M1558X FMEA Valve Field Retrofit Kit requires specialized knowledge and tools. It is strongly recommended that installation be performed by a certified and qualified service technician.
4.1 Pre-Installation Steps
- Ensure the appliance is completely disconnected from all power sources (electrical and gas).
- Allow the appliance to cool down completely if it has been in operation.
- Gather all necessary tools, including wrenches, pipe sealant (gas-rated), leak detection solution, and personal protective equipment (PPE).
- Carefully unpack the retrofit kit and inspect all components for any signs of damage. Do not install damaged parts.
Figure 2: Detailed view of the M1558X valve and associated copper tubing. This image highlights the intricate connections and components of the retrofit kit.
4.2 Installation Procedure (General Guidelines)
Note: Specific installation steps may vary depending on the appliance model. Refer to the appliance's service manual for detailed instructions.
- Locate the existing valve to be replaced within the appliance.
- Carefully disconnect all gas lines and electrical connections from the old valve. Be prepared for residual gas in the lines.
- Remove the old valve assembly.
- Install the new M1558X retrofit valve kit, ensuring all connections are properly aligned and secured. Use appropriate pipe sealant on threaded gas connections.
- Reconnect all gas lines and electrical wiring according to the appliance's wiring diagram.
- Perform a thorough leak test on all gas connections using a suitable leak detection solution. Do not use an open flame.
- Restore gas and electrical supply to the appliance.
- Test the appliance for proper operation, including ignition, flame supervision, and temperature control.
Figure 3: Alternative view of the M1558X retrofit kit. This image provides a comprehensive look at the valve's structure and its various connection points.
5. Operating Instructions
The M1558X FMEA Valve is a component within a larger gas appliance system. Its operation is integral to the overall function of the oven. Once properly installed, the valve automatically regulates gas flow based on the appliance's control settings and safety mechanisms.
Refer to your specific Bakers Pride oven's user manual for detailed operating instructions, including ignition procedures, temperature setting, and shutdown protocols. The FMEA valve ensures safe gas delivery and cutoff as required by the oven's control system.
6. Maintenance
Regular maintenance of your Bakers Pride appliance, including its gas system components, is essential for safe and efficient operation. While the M1558X FMEA Valve itself typically requires no user-level maintenance, periodic inspection by a qualified technician is recommended.
- Annual Inspection: Have a qualified service technician inspect the gas valve and all gas connections annually for signs of wear, leaks, or corrosion.
- Cleanliness: Ensure the area around the valve and gas lines is kept clean and free from obstructions or debris.
- Functionality Check: During routine appliance servicing, the technician should verify the proper operation of the valve's safety features and gas flow regulation.
CAUTION: Do not attempt to repair or modify the gas valve. If a malfunction is suspected, replace the valve with a genuine OEM part by a qualified technician.
7. Troubleshooting
If your Bakers Pride oven experiences issues related to gas supply or ignition after the M1558X valve installation, consider the following general troubleshooting steps. Always prioritize safety and consult a qualified technician for complex issues.
| Symptom | Possible Cause | Action |
|---|---|---|
| No gas flow to burner | Gas supply off, valve not opening, obstruction in line | Check main gas supply. Verify electrical connections to valve. Consult technician. |
| Pilot light not igniting | Faulty igniter, thermocouple issue, low gas pressure | Inspect igniter/thermocouple. Check gas pressure. Consult technician. |
| Gas odor detected | Gas leak | Immediately shut off gas supply. Ventilate area. Do not operate appliance. Contact emergency services and a qualified technician. |
8. Specifications
| Attribute | Detail |
|---|---|
| Model Number | M1558X |
| Part Number | M1558X |
| Manufacturer | Prtst (Bakers Pride OEM) |
| Item Weight | 1.27 pounds |
| Product Dimensions | 4 x 4 x 6 inches |
| Color | Silver, Black (components) |
| Batteries Required? | No |
| Application | Field Retrofit Kit for Bakers Pride Gas-Fired Ovens |
9. Warranty and Support
9.1 Warranty Information
As a genuine OEM replacement part, the Bakers Pride M1558X FMEA Valve Field Retrofit Kit typically carries a manufacturer's warranty against defects in materials and workmanship. Specific warranty terms and duration may vary. Please retain your proof of purchase. Using non-OEM parts may void the warranty of your Bakers Pride appliance.
For detailed warranty information, please refer to the documentation provided with your original Bakers Pride appliance or contact Bakers Pride customer service directly.
9.2 Technical Support
For technical assistance, installation guidance, or troubleshooting beyond the scope of this manual, it is recommended to contact a qualified and certified service technician specializing in commercial kitchen equipment. You may also reach out to Bakers Pride customer support for assistance in locating authorized service providers or for product-specific inquiries.
Bakers Pride Contact Information: Please refer to the official Bakers Pride website or your appliance documentation for the most current contact details.
