ERP ER1401 Furnace Igniter User Manual

1. Introduction

This manual provides essential information for the safe and effective use of the ERP ER1401 Furnace Igniter. The ER1401 is an aftermarket replacement igniter designed for various furnace models. It is crucial to read and understand all instructions before attempting installation or maintenance.

The igniter is a critical component in a furnace's heating system, responsible for igniting the gas or fuel. Proper installation and handling are vital for safety and optimal performance.

2. Safety Information

WARNING: Risk of Electric Shock, Fire, and Explosion.

• Always disconnect power to the furnace at the main circuit breaker or fuse box before attempting any installation, maintenance, or service.
• Gas appliances can be dangerous. Installation and service should only be performed by a qualified service technician.
• Ensure proper grounding of the furnace and all electrical connections.
• Do not bypass any safety controls or interlocks.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during installation.
• Check for gas leaks after any gas line disconnection or reconnection using a suitable leak detection solution.
• Keep children and pets away from the work area.

Failure to follow these safety instructions could result in property damage, personal injury, or death.

3. Package Contents

• 1 x ERP ER1401 Furnace Igniter

Note: Additional tools and materials required for installation are not included.

4. Specifications

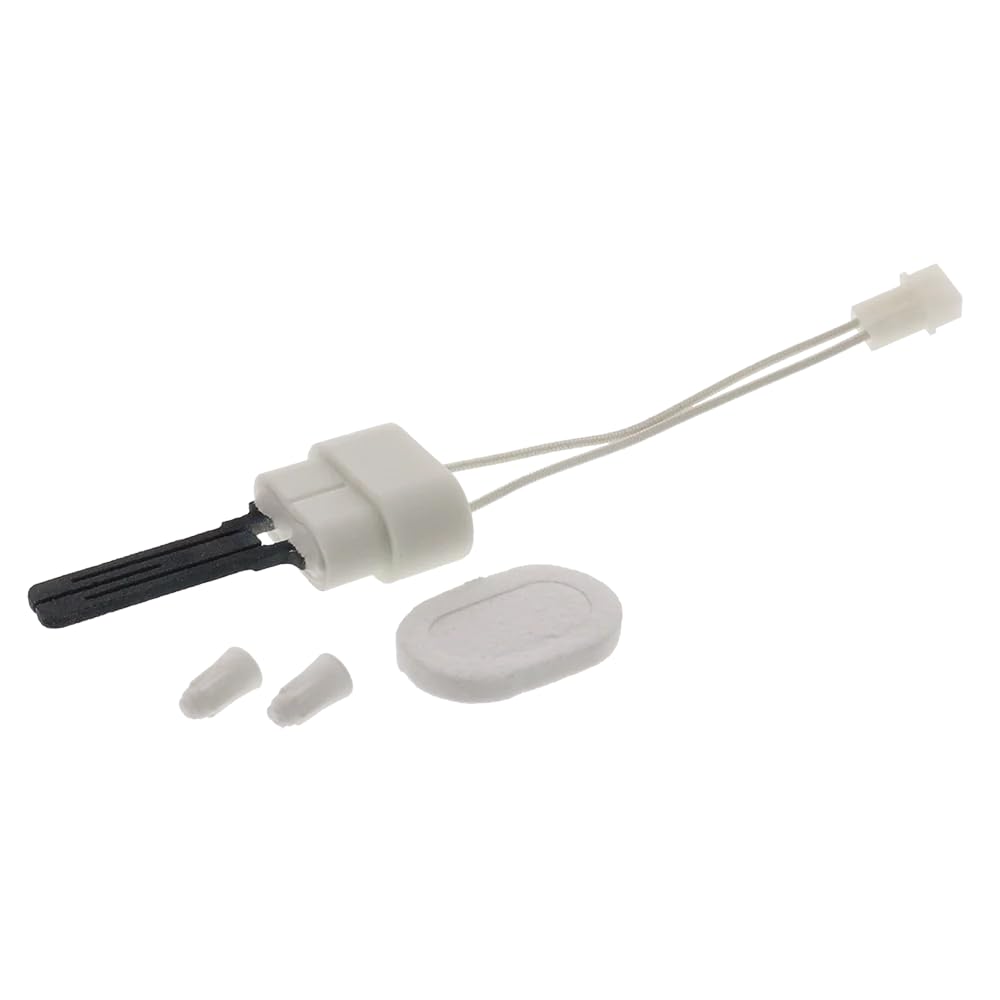

Figure 1: ERP ER1401 Furnace Igniter. This image shows the complete igniter assembly, featuring the white ceramic block, the black silicon carbide igniter element, and the connecting wires with a white connector.

5. Installation Guide

Important: Installation should only be performed by a qualified HVAC technician. Incorrect installation can lead to serious hazards.

1. Power Disconnection: Turn off all electrical power to the furnace at the main circuit breaker or fuse box. Verify power is off using a voltage tester.
2. Access the Igniter: Locate and remove the furnace access panel(s) to expose the burner assembly and existing igniter.
3. Disconnect Wiring: Carefully disconnect the electrical connector from the old igniter. Note the routing of the wires.
4. Remove Old Igniter: Unmount the old igniter from its bracket. It may be secured by screws or clips. Handle the old igniter carefully as it may be fragile.
5. Inspect Mounting: Ensure the mounting bracket is clean and free of debris.
6. Install New Igniter: Mount the new ERP ER1401 igniter onto the bracket, ensuring it is securely fastened and positioned correctly according to the furnace manufacturer's specifications. Avoid touching the silicon carbide element with bare hands, as oils can shorten its lifespan.
7. Connect Wiring: Connect the electrical connector of the new igniter to the furnace wiring harness. Ensure a secure connection.
8. Secure Panels: Replace all furnace access panels.
9. Restore Power: Turn on the electrical power to the furnace at the main circuit breaker.
10. Test Operation: Initiate a heating cycle to verify the igniter functions correctly and the furnace lights reliably. Observe the igniter glowing and igniting the gas.

Figure 2: Igniter Electrical Connector. This image provides a detailed view of the white electrical connector with two metal pins, which connects the igniter to the furnace's control board.

Figure 3: Igniter Element Detail. This image shows a side profile of the igniter, highlighting the black silicon carbide heating element and its connection to the white ceramic block.

6. Operation

The ERP ER1401 Furnace Igniter operates as part of the furnace's ignition sequence. When the thermostat calls for heat, the furnace control board sends power to the igniter. The silicon carbide element heats up rapidly to a high temperature, glowing red-hot.

Once the igniter reaches its operating temperature, the gas valve opens, releasing gas into the burner assembly. The hot igniter then ignites the gas, creating a flame. A flame sensor detects the presence of the flame, signaling the control board to keep the gas valve open and the igniter to turn off (in intermittent pilot systems) or remain on (in hot surface ignition systems, depending on furnace design). If no flame is detected, the furnace will typically attempt to re-ignite or enter a lockout state for safety.

7. Maintenance

Regular maintenance of your furnace is recommended to ensure efficient and safe operation. While the igniter itself typically does not require specific routine maintenance, periodic inspection is beneficial.

• Annual Inspection: During your annual furnace service by a qualified technician, have the igniter inspected for signs of wear, cracks, or carbon buildup.
• Cleanliness: Ensure the area around the igniter and burners is free from dust, debris, and obstructions.
• Avoid Contact: Do not touch the silicon carbide element with bare hands, as skin oils can degrade the material over time. If handling is necessary, use clean gloves.

8. Troubleshooting

If your furnace is not igniting or experiencing issues, the igniter may be a contributing factor. Always ensure power is disconnected before inspecting furnace components.

Note: Troubleshooting furnace issues can be complex and dangerous. If you are unsure, always contact a qualified HVAC professional.

9. Contact and Support

For technical assistance or further information regarding the ERP ER1401 Furnace Igniter, please refer to the official ERP website or contact your local HVAC professional.

ERP Website: www.erpparts.com
