TK Ignition Key Switch Assembly Set User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the TK Ignition Key Switch Assembly Set. This set is specifically designed for Jonway 150QT-12 150CC scooters and is compatible with various GY6 125CC/150CC scooter and moped models. Please read these instructions carefully before installation and use to ensure proper function and safety.

Package Contents:

• Ignition Switch with 4-wire plug
• Two (2) Keys
• Seat Latch and Lock with mounting clip
• Glove Box Lock

2. Specifications

3. Setup and Installation

Installation of the ignition key switch assembly requires basic mechanical and electrical knowledge. If you are unsure about any steps, it is recommended to seek professional assistance to avoid damage to your scooter or the product.

General Installation Steps:

1. Safety First: Ensure the scooter is turned off and the battery is disconnected before beginning any installation work.
2. Access Existing Components: Carefully remove any fairings or covers necessary to access the existing ignition switch, seat lock, and glove box lock.
3. Disconnect Old Components: Disconnect the wiring from the old ignition switch. Remove the old ignition switch, seat lock, and glove box lock from their mounting points. Note the orientation and wiring connections for reference.
4. Install New Ignition Switch: Mount the new ignition switch into its designated position. Connect the 4-wire plug to the scooter's wiring harness, ensuring a secure connection.
5. Install New Seat and Glove Box Locks: Install the new seat latch and lock, along with its mounting clip, and the new glove box lock. Ensure they are properly aligned and secured.
6. Test Functionality: Before reassembling the scooter, reconnect the battery and test the functionality of the new ignition switch (On, Off, Lock positions), seat lock, and glove box lock with the provided keys.
7. Reassemble Scooter: Once all components are confirmed to be working correctly, reattach all fairings and covers.

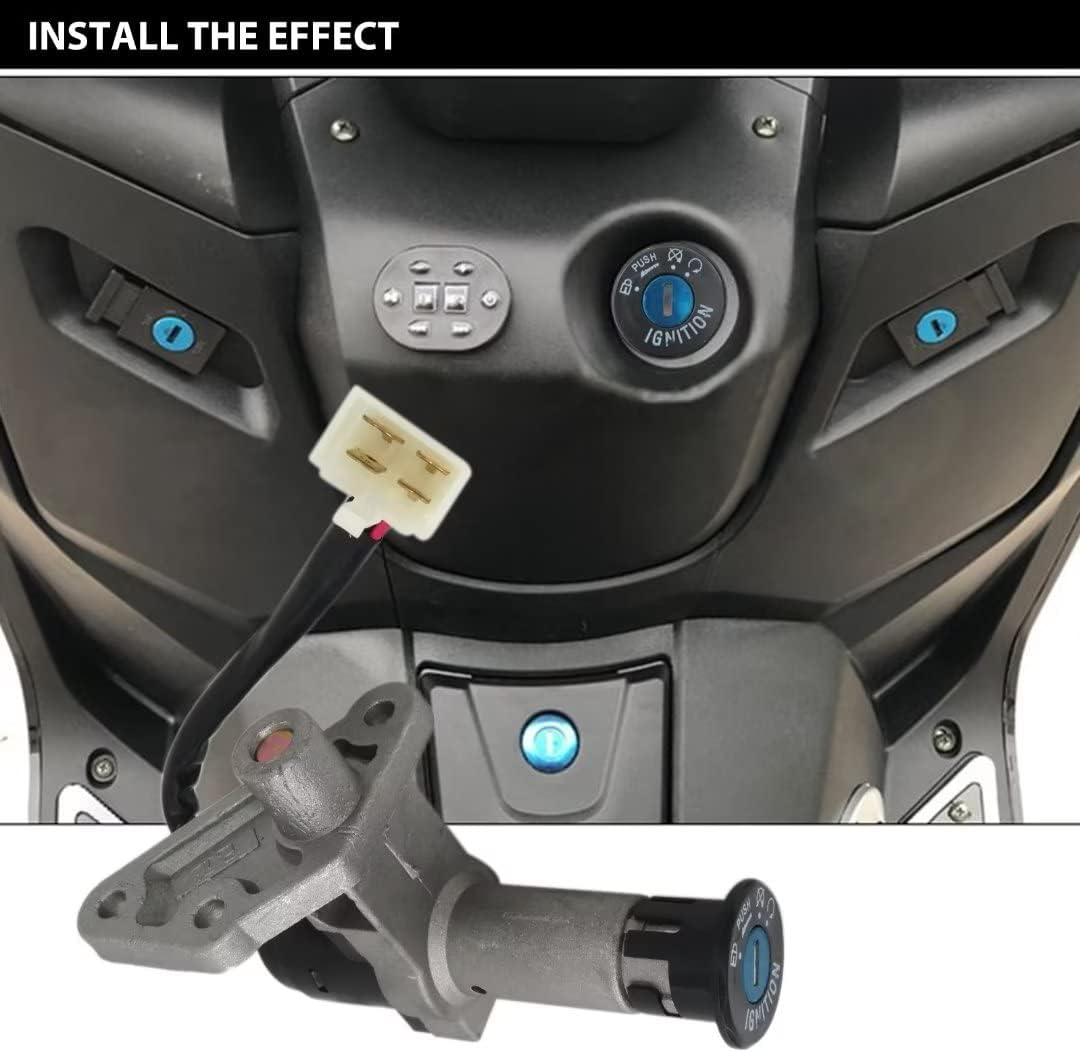

Visual Aids for Installation:

Installation Reference Videos:

4. Operating Instructions

The TK Ignition Key Switch Assembly provides control over your scooter's power and security features. Familiarize yourself with the key functions:

Ignition Switch Functions:

• OFF: The engine is off, and the electrical system is de-energized. The key can be removed in this position.
• ON: The engine can be started, and the electrical system is active. The key cannot be removed.
• LOCK: (Typically achieved by pushing the key in and turning counter-clockwise from OFF) This position locks the steering column for added security. The engine is off, and the key can be removed.

Other Lock Functions:

• Seat Lock: Use the key to unlock and open the scooter's seat for access to storage or the fuel tank.
• Glove Box Lock: Use the key to secure or access the scooter's glove box compartment.

5. Maintenance

Proper maintenance ensures the longevity and reliable operation of your ignition key switch assembly.

• Keep Clean: Periodically clean the keyholes and surrounding areas to prevent dirt and debris from accumulating, which can hinder key insertion or turning.
• Lubrication: Apply a small amount of graphite lubricant or a specialized lock lubricant into the keyholes once or twice a year, or if the key starts to feel stiff. Avoid using oil-based lubricants as they can attract dirt.
• Check Connections: Occasionally inspect the wiring connections to the ignition switch to ensure they are secure and free from corrosion.
• Key Care: Avoid using excessive force when turning the key. Do not use bent or damaged keys, as this can damage the lock cylinder.

6. Troubleshooting

If you encounter issues with your TK Ignition Key Switch Assembly, refer to the following common problems and solutions:

Problem: Key does not turn smoothly or gets stuck.

• Solution 1: Check the key for any bends or damage. Try using the spare key.
• Solution 2: Inspect the keyhole for foreign objects or debris. Use compressed air to clear it if necessary.
• Solution 3: Apply a small amount of graphite lubricant into the keyhole. Insert and remove the key several times to distribute the lubricant.

Problem: Scooter does not start when the ignition is in the 'ON' position.

• Solution 1: Ensure the ignition switch is fully engaged in the 'ON' position.
• Solution 2: Check the wiring connections to the ignition switch for looseness or corrosion.
• Solution 3: Verify that the scooter's battery is charged and properly connected.
• Solution 4: If other electrical components (lights, horn) are also not working, there might be a fuse issue or a broader electrical problem. Consult a qualified technician.

Problem: Seat or glove box lock does not engage/disengage.

• Solution 1: Ensure the key is fully inserted and turned correctly.
• Solution 2: Check for any obstructions preventing the latch mechanism from moving freely.
• Solution 3: Apply lubricant to the lock mechanism.
• Solution 4: Inspect the cable (if applicable for the seat lock) for kinks or damage.

7. Warranty and Support

For warranty information or technical support regarding your TK Ignition Key Switch Assembly Set, please refer to the documentation provided at the time of purchase or contact the seller directly. Keep your proof of purchase for any warranty claims.
