Beurer MG 254 Shiatsu Massage Seat Cover Instruction Manual

1. Product Overview

The Beurer MG 254 Shiatsu Massage Seat Cover provides a powerful and pleasant Shiatsu massage experience for your back, neck, and shoulders. Designed for home or office use, it transforms almost any seat into a relaxation zone. This device features rotating massage heads and optional heat and light functions to help relieve tension and promote well-being.

Image 1.1: The Beurer MG 254 Shiatsu Massage Seat Cover in its full form, showcasing its ergonomic design and dark grey mesh fabric.

2. Safety Instructions

WARNING: Please read all safety instructions carefully before using the device. Failure to follow these instructions may result in injury or damage to the product.

• Always disconnect the device from the power supply after use and before cleaning.
• Do not use the device if the power cord or plug is damaged.
• Do not use the device in damp environments or near water.
• Keep the device away from high temperatures and direct sunlight.
• This device is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.
• Consult your doctor before using the device if you have a pacemaker, implants, or any medical conditions.
• Do not use the device for more than 15 minutes at a time.
• Do not use the device on swollen, inflamed, or injured skin areas.

3. Components

Familiarize yourself with the different parts of your Beurer MG 254 Shiatsu Massage Seat Cover:

Image 3.1: Labeled diagram of the massage seat cover components.

• 1. Neck Massage Fingers: Two rotating massage fingers for the neck area.
• 2. Rotating Handle for Height Adjustment: Used to electrically adjust the height of the neck massage area.
• 3. Massage Heads: Four rotating Shiatsu massage heads for the back area.
• 4. Seat Cushion: The base cushion for comfortable seating.

Image 3.2: Labeled diagram of the remote control functions.

• 1. Timer Button: Sets massage duration (5-10-15 minutes).
• 2. Demo Button: Activates a short demonstration program.
• 3. Left Rotation Button: Changes direction of rotation for neck massage.
• 4. Right Rotation Button: Changes direction of rotation for neck massage.
• 5. Shiatsu Massage Button: Activates/deactivates Shiatsu massage for the back.
• 6. Upper Back Massage Button: Focuses massage on the upper back area.
• 7. Lower Back Massage Button: Focuses massage on the lower back area.
• 8. Full Back Massage Button: Activates massage for the entire back.
• 9. Heat Button: Activates/deactivates the heat function.

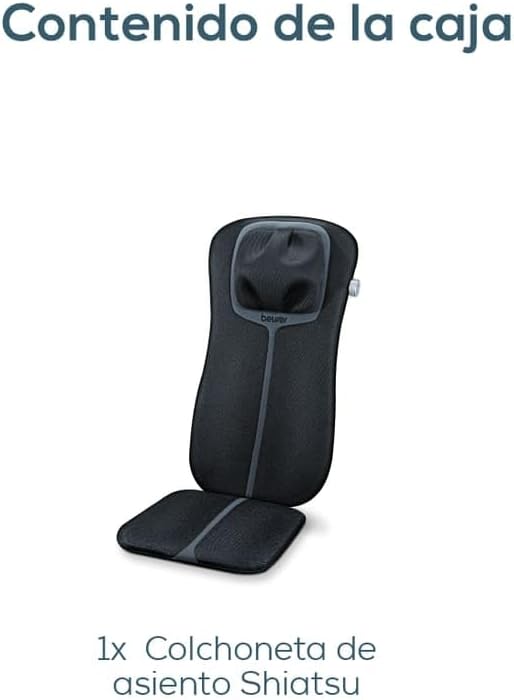

Image 3.3: The box contents include 1x Shiatsu massage seat cover.

4. Setup

1. Unpack: Carefully remove the massage seat cover from its packaging.
2. Positioning: Place the massage seat cover on a suitable chair, armchair, or other seating surface. Ensure the backrest of the chair is stable and provides adequate support. The flexible fastening straps can be used to secure the cover to the chair.
3. Connect Power: Plug the power adapter into a suitable electrical outlet. Ensure the voltage matches the device's requirements.
4. Initial Check: Before first use, inspect the device for any visible damage.

5. Operation

To operate your Beurer MG 254 Shiatsu Massage Seat Cover, use the wired remote control:

1. Power On: Press the power button on the remote control to turn on the device.
2. Select Massage Type:
   • Press the Shiatsu Massage Button to activate the back massage.
   • Choose a specific back area: Upper Back, Lower Back, or Full Back.
   • The neck massage can be activated separately. Use the Rotating Handle on the side to adjust the neck massage height to your preference.
   • Adjust the rotation direction of the neck massage using the Left Rotation or Right Rotation buttons.
3. Activate Heat Function: Press the Heat Button to turn on the soothing heat function for enhanced relaxation.
4. Set Timer: Use the Timer Button to select a massage duration of 5, 10, or 15 minutes. The device will automatically shut off after the selected time.
5. Power Off: Press the power button again to turn off the device. Always unplug the device from the power outlet after use.

Image 5.1: An illustrative diagram showing the internal rotating massage heads and their movement paths for Shiatsu massage on the back and neck.

Image 5.2: A close-up view of the neck massage area, highlighting the two Shiatsu massage fingers and the adjustable height mechanism.

6. Features

• Shiatsu Massage: Features 4 rotating Shiatsu massage heads for the back and 2 Shiatsu massage fingers for the neck.
• Adjustable Neck Massage: Electrically adjustable height for the neck massage area to suit individual users.
• Selectable Massage Zones: Target specific areas of the back: upper, lower, or full back.
• Heat and Light Function: Switchable heat and light function for enhanced relaxation and tension relief.
• Flexible Fastening Straps: Ensures secure attachment to various seating surfaces.
• Breathable Materials: Constructed with breathable mesh and neoprene surfaces for comfort.
• Automatic Shut-off: Integrated timer for 5, 10, or 15-minute massage sessions.

7. Maintenance and Care

Proper care ensures the longevity and hygiene of your massage seat cover:

• Cleaning: The mesh cover is washable at 40°C (104°F). Ensure the device is unplugged before cleaning.
• Storage: Store the device in a cool, dry place when not in use. Avoid placing heavy objects on it.
• Do Not Iron: Do not iron the mesh cover or any part of the device.
• Avoid Harsh Chemicals: Do not use abrasive cleaning agents or harsh chemicals, as these can damage the materials.

8. Troubleshooting

If you encounter issues with your Beurer MG 254, refer to the following common solutions:

• Device Not Turning On:
  • Check if the power adapter is securely plugged into both the device and the electrical outlet.
  • Ensure the power outlet is functional by testing it with another appliance.
• Massage Heads Not Moving:
  • Verify that the correct massage function is selected on the remote control.
  • Ensure no foreign objects are obstructing the massage heads.
• Heat Function Not Working:
  • Confirm the heat button has been pressed.
  • Allow a few minutes for the heat to become noticeable.
• Unusual Noises:
  • Turn off the device and inspect for any loose parts or obstructions.
  • If the noise persists, discontinue use and contact customer support.

If the problem persists after attempting these solutions, please contact Beurer customer support.

9. Specifications

10. Warranty and Support

Beurer products are manufactured to the highest quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Beurer website.

For technical support, troubleshooting assistance, or spare parts, please contact Beurer customer service. Contact details can typically be found on the product packaging or the official Beurer website.

Online Resources: For additional information and support, visit the official Beurer website: www.beurer.com
