1. Introduction
The Hillman Group 851148 2-1/2-Inch Double Wide Corner Brace is designed for interior applications to reinforce flat right-angle corner joints. It is suitable for use in chests, screens, windows, furniture, and doors, providing structural support and stability. This brace is constructed from steel with a zinc-plated finish for rust resistance.
Key Features:
- Reinforces flat surface right-angle corner joints.
- Ideal for box, chest, and furniture construction or repair.
- Zinc-plated finish for rust resistance.
- Steel material provides strength and durability.

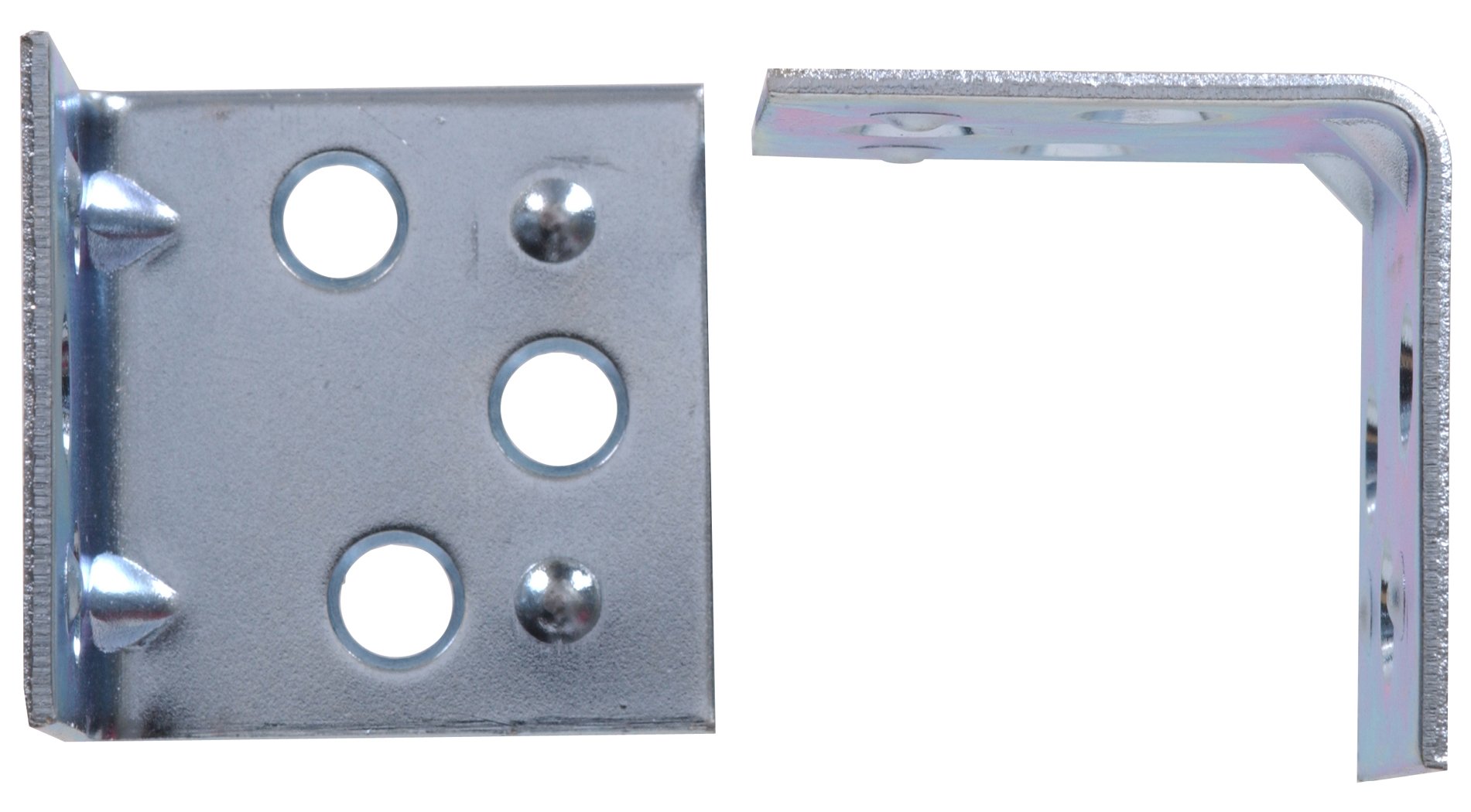

An image showing the Hillman Group 851148 2-1/2-Inch Double Wide Corner Brace, featuring its zinc-plated finish and double-wide design.
2. Installation (Setup)
This corner brace is designed for straightforward installation to reinforce right-angle joints. Mounting fasteners are included with the package.
Installation Steps:
- Prepare the Surface: Ensure the surfaces where the brace will be mounted are clean, dry, and free from obstructions.
- Position the Brace: Place the double-wide corner brace firmly against the interior corner joint you wish to reinforce. Ensure it sits flush against both surfaces.
- Mark Screw Holes: Using a pencil or marker, carefully mark the locations for the mounting screws through the pre-drilled holes on the brace.
- Drill Pilot Holes (Optional but Recommended): For softer materials or to prevent wood splitting, drill small pilot holes at the marked locations. Ensure the pilot holes are smaller than the screw diameter.
- Secure the Brace: Align the brace with the marked or pilot holes. Insert the provided mounting fasteners into the holes and tighten them securely with a screwdriver. Do not overtighten, as this can strip the material or damage the brace.
- Verify Stability: After installation, check the joint for improved stability and ensure the brace is firmly attached.
3. Function
The Hillman Group 851148 Double Wide Corner Brace functions as a static reinforcing angle. Once installed, it provides continuous structural support to right-angle joints, preventing movement, sagging, or separation of the joined components. It does not require any active operation after proper installation.
4. Maintenance
The zinc-plated steel construction of the Hillman Group 851148 corner brace requires minimal maintenance.
- Cleaning: Periodically wipe the brace with a clean, dry cloth to remove dust or debris. For stubborn dirt, a damp cloth with mild soap can be used, followed by thorough drying.
- Inspection: Regularly inspect the brace and its fasteners for any signs of loosening, corrosion, or damage.
- Tightening Fasteners: If fasteners appear loose, gently retighten them to ensure the brace remains securely in place.
- Corrosion: While zinc-plated for rust resistance, prolonged exposure to moisture or harsh chemicals can affect the finish. Address any signs of rust promptly by cleaning and, if necessary, applying a rust-inhibiting coating.
5. Troubleshooting
Most issues with a corner brace relate to installation or environmental factors.
| Problem | Possible Cause | Solution |
|---|---|---|
| Brace feels loose after installation. | Fasteners not fully tightened; incorrect screw size; damaged mounting surface. | Ensure fasteners are tightened securely. If screws are stripped, use slightly larger screws or repair the mounting surface. |
| Joint still wobbly or unstable. | Insufficient number of braces; brace not properly aligned; underlying structural issue. | Add more braces if necessary. Re-align the brace for optimal support. Inspect the overall structure for other weaknesses. |
| Rust or corrosion appearing on the brace. | Exposure to excessive moisture or corrosive agents; damaged zinc plating. | Clean the affected area and apply a rust-inhibiting primer and paint. Ensure the brace is used in appropriate interior conditions. |
6. Specifications
| Attribute | Detail |
|---|---|
| Model Number | 851148 |
| Brand | Hillman |
| Material | Zinc Plated Steel |
| Mounting Type | Corner Mount |
| Product Dimensions (L x W x H) | 7.5 x 3.8 x 1.69 inches |
| Item Weight | 6.4 ounces (0.4 Pounds) |
| Item Package Quantity | 1 |
| UPC | 008236862768 |
| Manufacturer | The Hillman Group |
7. Warranty Information
Specific warranty details for the Hillman Group 851148 2-1/2-Inch Double Wide Corner Brace are not provided in the available product information. For warranty inquiries, please contact The Hillman Group directly or refer to their official website.
8. Customer Support
For further assistance, technical support, or to inquire about replacement parts, please contact The Hillman Group customer service. You can typically find contact information on their official website or through the retailer where the product was purchased.
The Hillman Group Official Website: www.hillmangroup.com
