1. Important Safeguards
Please read all instructions carefully before using your CUCKOO CRP-HY1083F Induction Heating Pressure Rice Cooker to ensure safe and optimal performance. Keep this manual for future reference.
- Electrical Safety: Ensure the voltage matches your power supply. Do not immerse the appliance, cord, or plug in water or other liquids.
- Supervision: Close supervision is necessary when the appliance is used by or near children.
- Heat Surfaces: The inner pot and heating plate become hot during and after operation. Use oven mitts or handles when handling.
- Pressure Release: Do not block the pressure release valve. Keep hands and face clear of the steam vent during operation.
- Maintenance: Refer to the cleaning and maintenance section for proper care. Do not attempt to repair the appliance yourself. Contact qualified service personnel.
- Placement: Place the rice cooker on a stable, flat, heat-resistant surface away from direct sunlight or heat sources.
2. Product Overview
Components
The CUCKOO CRP-HY1083F includes the main unit, a removable inner pot, a rice scoop, and a measuring cup.
Figure 2.1: Front view of the CUCKOO CRP-HY1083F Induction Heating Pressure Rice Cooker, highlighting its control panel and sleek black design.
Figure 2.2: A side view of the rice cooker, illustrating its compact form factor.
Figure 2.3: The rice cooker with its lid open, showcasing the removable inner pot and the interior of the main unit.
Figure 2.4: This image displays the stainless steel inner pot with X-Wall nonstick coating, along with the included rice scoop and steam plate.

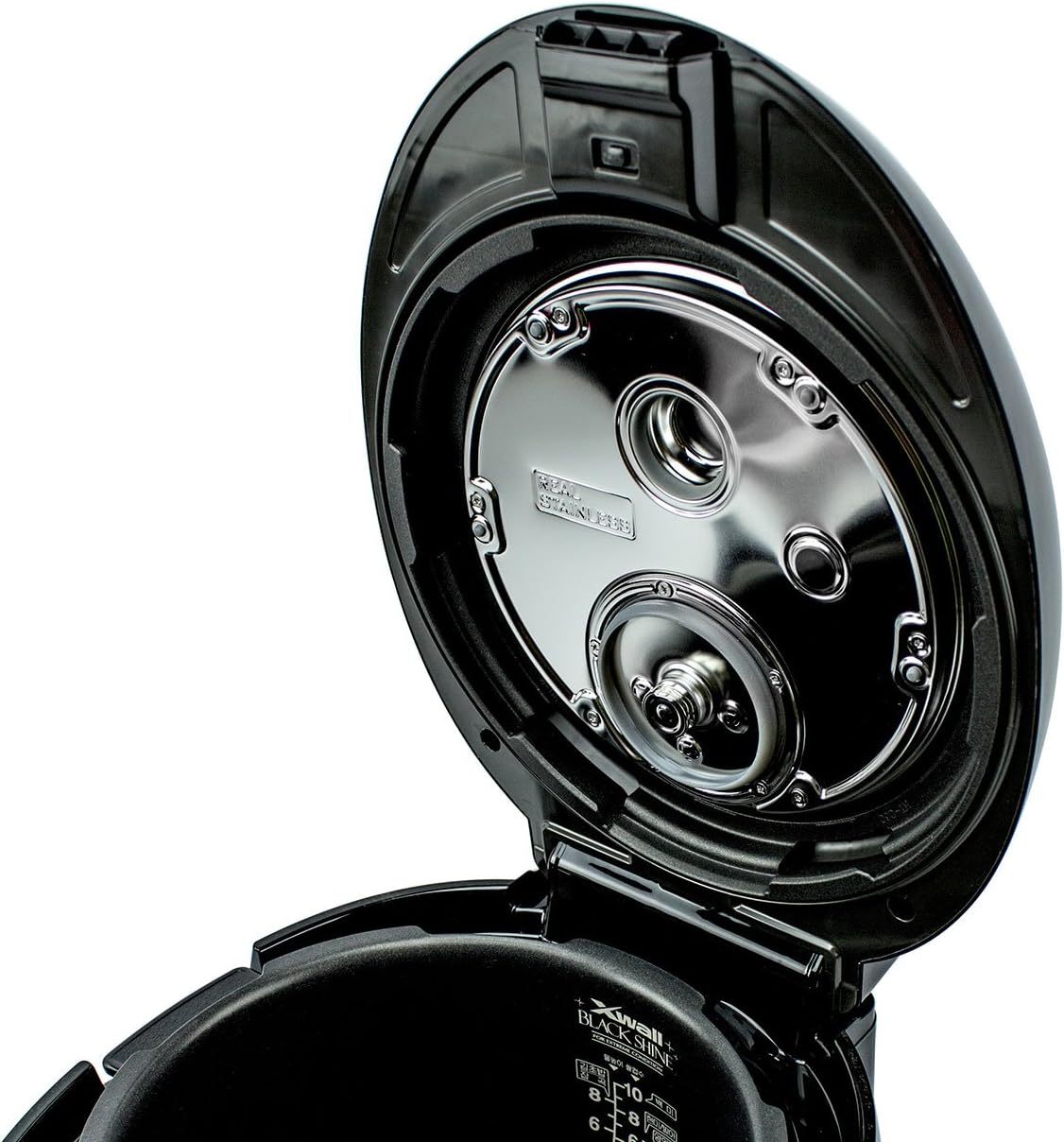

Figure 2.5: A detailed view of the lid's interior, including the steam vent and pressure sealing components.
3. Setup
3.1 Initial Setup
- Unpack: Carefully remove all packaging materials and accessories from the box.
- Clean: Wash the inner pot, rice scoop, and measuring cup with warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the main unit with a damp cloth.
- Placement: Place the rice cooker on a flat, stable, and dry surface. Ensure adequate ventilation around the unit.
- Power Connection: Plug the power cord into a grounded electrical outlet. The unit will typically display a standby mode or initial setup prompt.
3.2 Preparing the Inner Pot
Before each use, ensure the inner pot is clean and dry. The inner pot features measurement lines for different rice types and water levels.
4. Operating Instructions
4.1 Basic Rice Cooking
- Measure Rice: Use the provided measuring cup to measure the desired amount of rice.
- Wash Rice: Rinse the rice thoroughly until the water runs clear.
- Add Water: Place the washed rice into the inner pot. Add water up to the corresponding water level mark for the type and quantity of rice.
- Close Lid: Ensure the inner pot is properly seated and close the lid securely.
- Select Menu: Use the 'MODE' or 'MENU SELECTION' buttons to choose the desired rice type (e.g., Glutinous/White Rice, GABA/Brown Rice, Sushi Rice).
- Start Cooking: Press the 'SET' or 'COOK' button to begin the cooking cycle. The cooker will automatically adjust cooking time and pressure.
- Completion: Once cooking is complete, the cooker will typically switch to 'KEEP WARM' mode and may play an audible alert.
4.2 Menu Options
The CRP-HY1083F offers 13 menu options, including:
- GABA/Brown Rice
- Glutinous/White Rice
- Sushi Rice
- Pressure Cook
- Nu Rung Ji
- Multi-Cook
- Auto-Clean
Consult the display and voice guide for specific instructions on each menu option.
4.3 Voice Navigation
The rice cooker features a 3-language voice guide (Korean, Chinese, English) to assist with menu selection and operational status. Adjust the language and volume settings via the control panel.
4.4 Keep Warm and Reheat Functions
- Keep Warm: After cooking, the unit automatically enters 'KEEP WARM' mode to maintain optimal temperature.
- Reheat: Use the 'REHEAT' option to warm up previously cooked rice or other foods. Follow on-screen prompts for activation.
5. Cleaning and Maintenance
Regular cleaning ensures hygiene and extends the lifespan of your rice cooker.
5.1 Auto-Clean Function
The 'AUTO-CLEAN' function uses steam to clean the interior of the rice cooker. To use:
- Fill the inner pot with water up to the 'AUTO-CLEAN' line.
- Close the lid securely.
- Select 'AUTO-CLEAN' from the menu and press 'SET'.
- After the cycle, unplug the unit and allow it to cool before wiping the interior with a damp cloth.
5.2 Inner Pot Care
- Hand Wash: The stainless steel inner pot with X-Wall nonstick coating should be hand washed with a soft sponge and mild detergent.
- Avoid Abrasives: Do not use abrasive cleaners, metal scrubbers, or sharp utensils that can damage the nonstick coating.
- Drying: Ensure the inner pot is completely dry before placing it back into the main unit.
5.3 Exterior Cleaning
Wipe the exterior of the rice cooker with a soft, damp cloth. Do not use harsh chemicals or immerse the unit in water.
6. Troubleshooting
If you encounter issues with your rice cooker, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Rice is undercooked/hard | Insufficient water; incorrect rice type selected; lid not properly closed. | Add correct amount of water; select appropriate menu; ensure lid is sealed. |
| Rice is overcooked/mushy | Too much water; incorrect rice type selected. | Reduce water amount; select appropriate menu. |
| Error code displayed | Sensor malfunction; internal issue. | Unplug and plug back in. If error persists, contact customer support. |
| No power | Power cord not connected; power outage. | Check power connection and outlet. |
For issues not listed here, please contact CUCKOO customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | CUCKOO |
| Model Number | CRP-HY1083F |
| Capacity | 10 Cups (Uncooked) |
| Product Dimensions | 10.1"D x 10.6"W x 14.8"H |
| Power Source | Corded Electric |
| Wattage | 1305 watts |
| Voltage | 120 Volts (AC) |
| Material | Stainless Steel |
| Inner Pot Material | 304 Food-Grade Stainless Steel with X-Wall Nonstick Coating |
| Included Components | Rice scoop |
| Special Features | Induction Heating, Pressure Cooking, 13 Menu Options, Auto-Clean, Voice Navigation, Preset Timer, Reheat, Keep Warm |
8. Warranty and Support
8.1 Manufacturer's Warranty
This CUCKOO CRP-HY1083F rice cooker comes with a 1-year manufacturer warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
8.2 Customer Support
For technical assistance, troubleshooting, or warranty service, please contact CUCKOO customer support. Refer to the contact information provided in your product packaging or visit the official CUCKOO website.
