1. Introduction
This manual provides essential information for the installation, operation, and maintenance of the Frigidaire 131763302 Striker. This is a genuine replacement part designed for specific Frigidaire appliances. Please read these instructions carefully before proceeding with any installation or repair to ensure safety and proper function.
2. Safety Information
Always prioritize safety when working with appliances. Failure to follow these safety guidelines may result in personal injury or damage to the appliance.
- Disconnect Power: Always unplug the appliance from its power source before attempting any repairs or maintenance.
- Wear Protective Gear: Use appropriate personal protective equipment, such as gloves and eye protection.
- Professional Assistance: If you are unsure about any step, consult a qualified appliance technician.
- Genuine Parts: Use only genuine replacement parts to ensure compatibility and safety.
3. Product Overview
The Frigidaire 131763302 Striker is a critical component in your appliance's door latch mechanism. It works in conjunction with the door switch to ensure the appliance door is securely closed before operation can begin. This part is essential for the safe and proper functioning of your appliance.
Image 3.1: The Frigidaire 131763302 Striker, a genuine replacement part.
3.1. Dimensions
Refer to the images below for detailed dimensions of the 131763302 Striker.

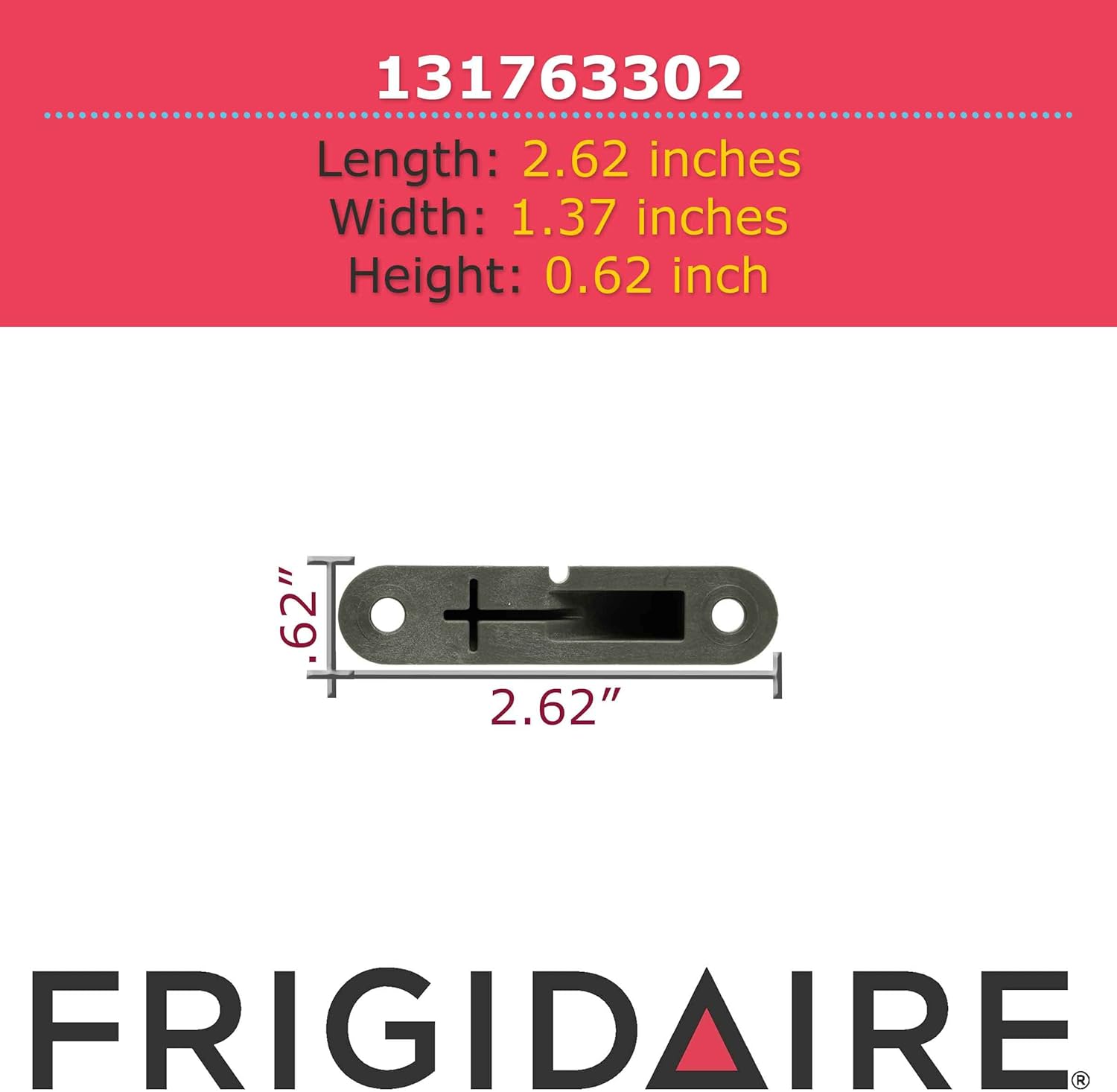

Image 3.2: Top view of the striker with length (2.62 inches) and width (1.37 inches) indicated.
Image 3.3: Side view of the striker with height (0.62 inches) indicated.
4. Symptoms Addressed
Replacing a faulty 131763302 Striker can resolve several common issues with your appliance, including:
- Lid or door will not close properly.
- Appliance will not start.
- Lid or door will not open.
- Appliance will not fill with water (if related to door interlock).
5. Installation Instructions
The following steps provide a general guide for replacing the door striker. Specific procedures may vary depending on your appliance model. Always refer to your appliance's service manual for detailed instructions.
- Safety First: Disconnect the appliance from its power supply.
- Access the Striker: Locate the existing door striker on your appliance. It is typically found on the door frame or lid.
- Remove Old Striker: Carefully remove any screws or fasteners holding the old striker in place. Note its orientation for correct installation of the new part.
- Install New Striker: Position the new Frigidaire 131763302 Striker in the same orientation as the old one. Secure it with the appropriate screws or fasteners. Ensure it is firmly attached.
- Test Functionality: Close and open the appliance door several times to ensure the striker engages correctly with the door switch.
- Reconnect Power: Once satisfied with the installation, reconnect the appliance to its power supply.
- Verify Operation: Run a short cycle to confirm the appliance operates correctly and the door interlock functions as intended.
5.1. Installation Videos
For visual guidance, refer to the following instructional videos:
Video 5.1: BlueStars 131763302 Washer Door Striker Overview
This video provides a detailed overview of the BlueStars 131763302 Washer Door Striker, demonstrating its components and how it addresses common washer issues like the door not closing or the machine not starting. It also highlights compatible part numbers.
Video 5.2: 131763302 Washer Door Striker - PACK OF 2 Overview
This video offers another perspective on the 131763302 Washer Door Striker, showcasing its design and function. It reinforces the symptoms it can fix and provides a visual reference for the part.
6. Maintenance
The Frigidaire 131763302 Striker is designed for durability. Regular maintenance of your appliance, such as keeping the door and latch area clean, can help prolong the life of this component. Avoid forcing the door open or closed if it feels obstructed, as this can damage the striker or latch mechanism.
7. Troubleshooting
If your appliance continues to exhibit issues related to the door latch after replacing the striker, consider the following:
- Door Switch: The door switch itself might be faulty. Inspect it for continuity or signs of damage.
- Alignment: Ensure the door and striker are perfectly aligned. Misalignment can prevent proper engagement.
- Wiring: Check the wiring connected to the door switch for any loose connections or damage.
- Other Components: Other components of the door latch assembly or control board might be at fault.
If troubleshooting does not resolve the issue, professional assistance is recommended.
8. Specifications
| Feature | Detail |
|---|---|
| Brand Name | Frigidaire |
| Model Info | 131763302 |
| Item Weight | 0.317 ounces |
| Product Dimensions | 1.5 x 2.5 x 3.5 inches |
| Item Model Number | 131763302 |
| Part Number | 131763302 |
| Batteries Included | No |
| Batteries Required | No |
9. Warranty and Support
As a genuine Frigidaire replacement part, this striker is covered by the manufacturer's standard warranty for replacement parts. For specific warranty details or technical support, please refer to your appliance's original documentation or contact Frigidaire customer service directly. Ensure you have your appliance model and serial number ready when seeking support.
