Exquisit EKS 145-3 A+ Compact Refrigerator Instruction Manual

Introduction

Thank you for choosing the Exquisit EKS 145-3 A+ Compact Refrigerator. This manual provides essential information for the safe and efficient use, installation, and maintenance of your appliance. Please read these instructions carefully before operating the refrigerator and retain them for future reference.

Safety Information

To prevent personal injury or damage to your appliance, always observe the following safety precautions:

• Ensure the refrigerator is unplugged before cleaning or performing any maintenance.
• Do not damage the refrigerant circuit. If damaged, avoid open flames and ventilate the room thoroughly.
• Keep ventilation openings clear of obstruction.
• Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Setup

1. Unpacking

Carefully remove all packaging materials, including foam and adhesive tape. Dispose of packaging responsibly. Inspect the refrigerator for any damage incurred during transit. If damage is found, do not plug in the appliance and contact your retailer.

2. Placement

Place the refrigerator on a firm, level surface away from direct sunlight, heat sources (e.g., stoves, heaters), and moisture. Ensure adequate air circulation around the appliance. Allow at least 10 cm (4 inches) of space at the back and sides for proper ventilation. The dimensions of the unit are approximately 54 cm (width) x 54 cm (depth) x 87.2 cm (height).

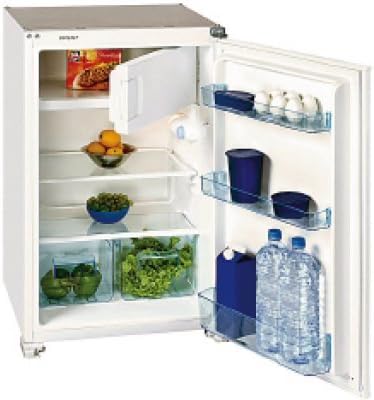

The Exquisit EKS 145-3 A+ refrigerator with its door open, showing the interior layout. It features multiple shelves, a small freezer compartment, door bins for bottles and eggs, and two transparent crisper drawers at the bottom.

3. Electrical Connection

Before plugging in, ensure the voltage and frequency indicated on the rating plate match your household power supply. Connect the appliance to a properly grounded wall socket. Do not use extension cords or multiple socket adapters. Allow the refrigerator to stand upright for at least 2-4 hours before plugging it in to allow the refrigerant to settle.

4. Door Reversal (Optional)

The door hinges can be reversed to open from the left or right, depending on your preference. This procedure requires specific tools and careful handling. Refer to the detailed diagrams in the full manual (if provided separately) or consult a qualified technician for assistance.

Operating Instructions

1. Temperature Control

The refrigerator's temperature is controlled by a thermostat dial, typically located inside the fresh food compartment. Turn the dial to adjust the cooling intensity. A higher number usually indicates a colder setting. Start with a medium setting (e.g., '3' or '4') and adjust as needed based on ambient temperature and food load. Allow several hours for the temperature to stabilize after adjustment.

2. Food Storage Guidelines

• Store cooked foods and dairy products on upper shelves.
• Raw meat and fish should be stored on the lowest shelf to prevent dripping onto other foods.
• Fruits and vegetables are best kept in the crisper drawers at the bottom.
• Ensure all food is covered to prevent drying out and odor transfer.
• Avoid placing hot food directly into the refrigerator; allow it to cool down first.

3. Freezer Compartment Usage

The small freezer compartment (approximately 14 liters) is suitable for storing small quantities of frozen food or making ice cubes. Do not store large amounts of fresh food for freezing, as its capacity is limited. Ensure the freezer door is always closed tightly to maintain temperature.

Maintenance

1. Cleaning

Interior Cleaning: Unplug the refrigerator. Remove all food and removable parts (shelves, drawers). Wash the interior with a solution of mild detergent and warm water. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners or harsh chemicals. Replace all parts and food before plugging the unit back in.

Exterior Cleaning: Wipe the exterior surfaces with a soft cloth dampened with mild detergent. Dry with a clean, soft cloth. Clean the door gasket regularly to ensure a tight seal.

2. Defrosting

The freezer compartment will accumulate frost over time. When the frost layer reaches about 3-5 mm (0.1-0.2 inches) thick, defrost the unit. Unplug the refrigerator, remove all food from the freezer, and leave the freezer door open. Place a towel or shallow tray at the bottom to collect meltwater. Do not use sharp objects or heating devices to speed up defrosting, as this can damage the appliance. Once defrosted, clean and dry the interior before plugging it back in.

Troubleshooting

If the problem persists after checking these points, please contact customer support.

Specifications

Warranty and Support

For warranty information, please refer to the warranty card included with your purchase or contact your retailer. For technical support or service inquiries, please contact Exquisit customer service through their official website or the contact details provided in your purchase documentation.
