1. Introduction and Overview
This manual provides detailed instructions for the installation, maintenance, and care of your Prime-Line J 4703 Door Kick Plate. Designed to protect your door from scuffs, scratches, and other damage, this aluminum kick plate features a polished brass plated finish and comes with pre-punched mounting holes for straightforward installation. Please read all instructions carefully before beginning installation.
2. Product Features
- Door Protection: Designed for use on any swinging door to help prevent scuff marks or other damage.
- Dimensions: Measures 6 inches in height by 34 inches in width.
- Easy Installation: Features pre-drilled mounting holes for quick and secure attachment.
- Finish: Polished brass plated finish for an aesthetic appeal.
- Material: Constructed from durable aluminum.
- Protective Coating: Includes a removable PVC protective coating to prevent damage during shipping and installation.
3. Package Contents
Verify that all components are present before beginning installation:
- 1 x Prime-Line J 4703 Door Kick Plate (6 in. x 34 in., Brite Brass)
- Mounting Fasteners (screws)
4. Setup and Installation
Tools Required: Pencil, Measuring Tape, Drill (with appropriate drill bit for pilot holes), Screwdriver (Phillips head).
- Prepare the Door Surface: Ensure the door surface where the kick plate will be installed is clean, dry, and free of debris.
- Position the Kick Plate: Hold the kick plate against the desired location on the door. Use a measuring tape to ensure it is level and at the correct height. Mark the positions of the pre-drilled holes on the door with a pencil.
- Pre-drill Pilot Holes (Recommended): For easier installation and to prevent wood splitting, especially on wooden doors, use a drill bit slightly smaller than the screw diameter to pre-drill pilot holes at the marked locations. Exercise caution to avoid drilling through the entire door.
- Align and Fasten: Align the kick plate with the pre-drilled holes on the door. Secure the kick plate using the included mounting fasteners (screws). Tighten screws until snug, but avoid over-tightening to prevent damage to the plate or door.
- Remove Protective Film: Carefully peel off the removable PVC protective coating from the kick plate after installation is complete.

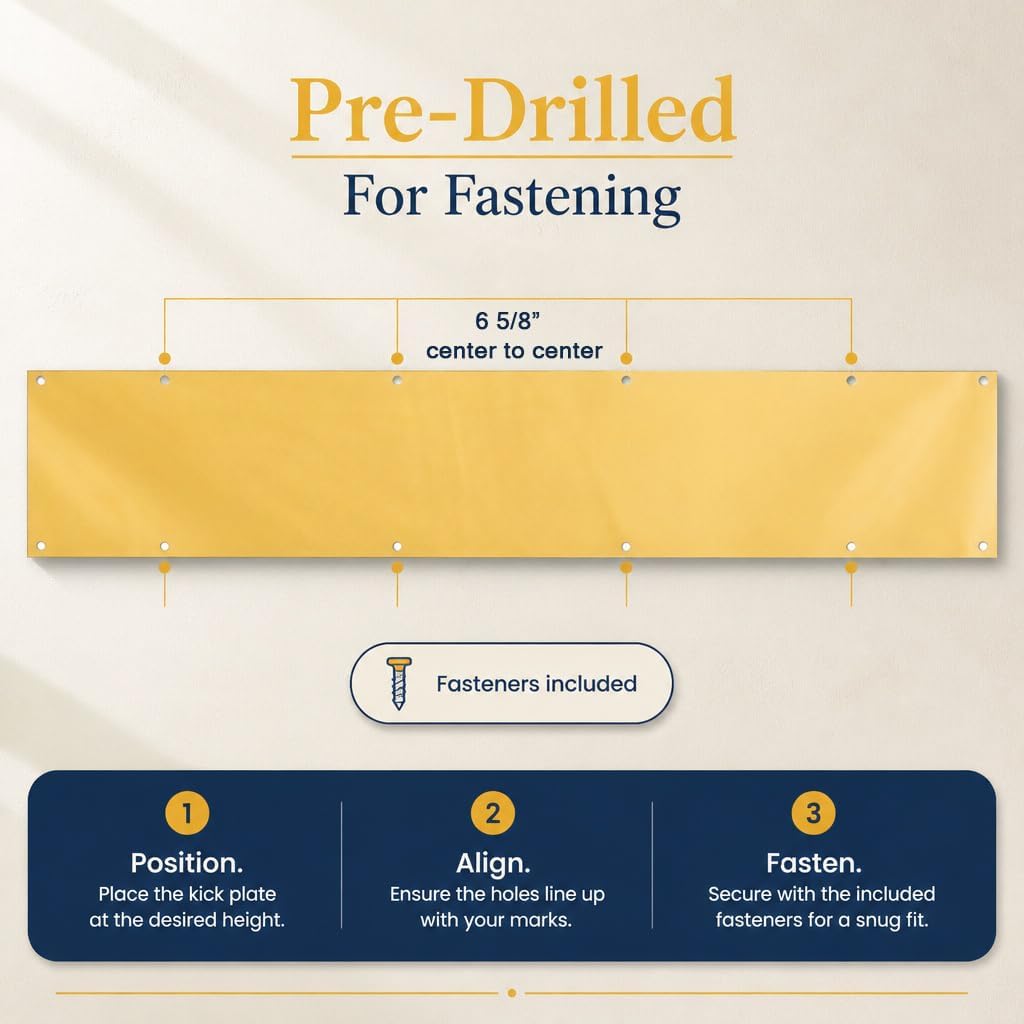

Figure 1: Installation steps for the Prime-Line J 4703 kick plate, highlighting pre-drilled holes and fastening process.
Figure 2: Dimensions of the Prime-Line J 4703 kick plate, measuring 6 inches by 34 inches.
5. Operating Instructions
The Prime-Line J 4703 Door Kick Plate functions as a passive protective barrier. Once correctly installed, it requires no active operation. Its purpose is to shield the lower portion of your door from scuffs, scratches, and impacts caused by foot traffic, carts, or other objects. Ensure the kick plate remains securely fastened to provide continuous protection.
Figure 3: The Prime-Line J 4703 kick plate installed on a door, demonstrating its protective role and aesthetic.
6. Maintenance
To ensure the longevity and appearance of your Prime-Line J 4703 Door Kick Plate, follow these simple maintenance guidelines:
- Cleaning: Regularly wipe the kick plate with a soft, damp cloth to remove dust, dirt, and fingerprints. For more stubborn marks, use a mild, non-abrasive cleaner. Avoid using harsh chemicals, abrasive pads, or metal polishes, as these can damage the brass plated finish.
- Inspection: Periodically check all mounting screws to ensure they remain tight. Re-tighten any loose screws to maintain secure attachment.
- Protective Coating: The PVC protective coating is for temporary protection during shipping and installation. Once removed, the polished brass finish should be maintained as described above.
7. Troubleshooting
If you encounter any issues with your kick plate, refer to the following common troubleshooting steps:
- Kick Plate is Loose: If the kick plate feels loose, check all mounting screws. Tighten them securely with a screwdriver. If a screw hole appears stripped, you may need to use a slightly larger screw or a suitable wall anchor, depending on the door material.
- Discoloration or Tarnishing: The brass plated finish may show signs of wear or minor tarnishing over time, especially in high-traffic areas or if exposed to certain environmental conditions. Regular cleaning can help prevent this. For minor tarnishing, a brass cleaner specifically designed for plated finishes may be used, but always test it on an inconspicuous area first.
- Scratches on Kick Plate: Minor surface scratches are normal with regular use and impact. For deep scratches that affect the aesthetic, replacement of the kick plate may be considered.
8. Specifications
| Attribute | Specification |
|---|---|
| Model Number | J 4703 |
| Material | Aluminum |
| Finish | Brite Brass Plated |
| Dimensions (Height x Width x Thickness) | 6 in. x 34 in. x 0.5 in. |
| Item Weight | 1.1 pounds |
| Included Components | Kickplate and fasteners |
| Manufacturer | Prime-Line Products |
9. Warranty Information
Prime-Line Products warrants goods against manufacturing defects for a period of 1 year from the date of purchase. This warranty does not cover user-related damage or damage incurred during installation. The warranty is void if products are subjected to abnormal conditions, misapplication, or abuse. Please retain your proof of purchase for any warranty claims.
10. Support and Contact Information
For further assistance, technical support, or to inquire about warranty claims, please contact Prime-Line customer service. You can find up-to-date contact information, including phone numbers and email addresses, by visiting the official Prime-Line website or referring to your product packaging.
