Introduction
This manual provides essential instructions for the proper installation, operation, and maintenance of the RYOBI OEM 089120406014 Lever Table Lock M8 X 25L. This genuine RYOBI replacement part is designed for specific applications requiring an M8 x 25L lever table lock.
Please read this manual thoroughly before attempting any installation or use to ensure safe and effective performance.
Product Overview

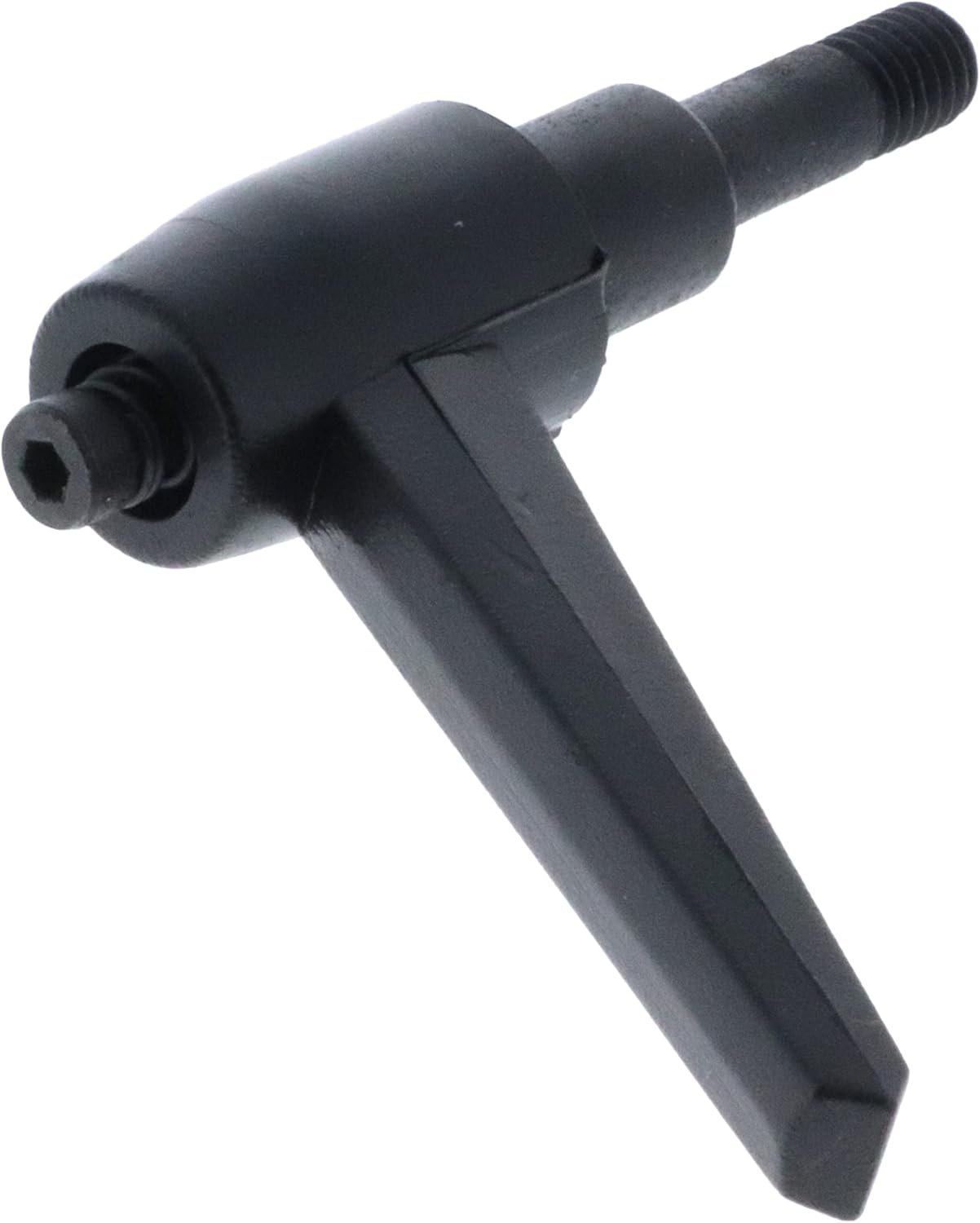

Figure 1: The RYOBI OEM 089120406014 Lever Table Lock. This image displays the black plastic lever handle attached to a threaded metal shaft, designed for securing components.
The RYOBI OEM 089120406014 is a replacement lever table lock. It features a durable plastic handle and a threaded metal shaft (M8 x 25L) for secure fastening. This component is essential for maintaining the stability and functionality of compatible equipment.
Setup and Installation
This lever table lock is designed for easy installation as a direct replacement part.
- Safety First: Before beginning installation, ensure the power tool or equipment is disconnected from its power source to prevent accidental startup.
- Identify Location: Locate the existing or intended mounting point for the lever table lock on your equipment.
- Remove Old Part (if applicable): If replacing an existing lock, carefully unscrew and remove the old lever. Note the orientation and how it was secured.
- Install New Lock: Align the threaded shaft of the new RYOBI 089120406014 lever table lock with the corresponding threaded hole.
- Secure: Turn the lever clockwise to thread it into place. Tighten until snug, ensuring the lever can be operated without excessive force but is firm enough to hold its position. Do not overtighten.
- Test Functionality: Once installed, test the locking mechanism to ensure it engages and disengages smoothly and securely.
Operating Instructions
The lever table lock is used to secure adjustable components on your equipment.
- To Lock: Rotate the lever clockwise until the desired component is firmly secured. The lever's design allows for a strong grip to prevent movement.
- To Unlock: Rotate the lever counter-clockwise to loosen the grip and allow for adjustment or movement of the component.
Always ensure the lever is fully engaged when locking and fully disengaged when unlocking to prevent damage to the lock or the equipment.
Maintenance
Regular maintenance ensures the longevity and proper function of your lever table lock.
- Cleaning: Periodically wipe the lever and surrounding area with a clean, dry cloth to remove dust and debris. Avoid harsh chemicals that may damage the plastic or metal.
- Inspection: Regularly inspect the lever for any signs of wear, cracks, or damage. Check the threads for any stripping or corrosion.
- Lubrication: If the threading becomes stiff, a small amount of dry lubricant (e.g., silicone spray) can be applied to the threads, avoiding contact with the plastic handle.
- Replacement: If the lever shows significant wear or damage, replace it with a genuine RYOBI OEM part to ensure continued safe operation.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lever does not tighten | Stripped threads on lock or equipment; incorrect size | Inspect threads for damage. Replace lock if threads are stripped. Verify correct M8 x 25L size. |
| Lever is stiff to turn | Dirt/debris in threads; lack of lubrication | Clean threads. Apply a small amount of dry lubricant to the threads. |
| Lever feels loose after tightening | Insufficient tightening; worn internal mechanism | Ensure the lever is tightened firmly. If problem persists, the lock may be worn and require replacement. |
| Lever handle is cracked or broken | Physical damage | Replace the lever table lock with a new genuine RYOBI part. |
Specifications
- Part Number: 089120406014
- Brand: RYOBI
- Material: Plastic (handle), Metal (shaft)
- Thread Size: M8
- Shaft Length: 25L (25mm)
- Item Weight: Approximately 2.2 pounds (1 Kilogram)
- Product Dimensions: Approximately 0.39 x 0.39 x 0.39 inches
- Special Feature: Easy to Install
Warranty Information
Specific warranty details for this RYOBI OEM replacement part are typically provided with the original equipment or can be obtained by contacting RYOBI customer support directly. Please retain your purchase receipt for warranty claims.
Customer Support
For further assistance, technical support, or to inquire about other genuine RYOBI parts, please visit the official RYOBI website or contact their customer service department.
Online Resources: Refer to the official RYOBI website for product manuals, FAQs, and service center locations.
Contact: For direct support, please use the contact information provided on the RYOBI official website.
