Introduction
The NICE FLO 2RE is a compact and ergonomic remote control designed for operating gate and garage door systems. It transmits on a frequency of 433.92 MHz and features two buttons for controlling different functions. This manual provides essential information for the proper setup, operation, and maintenance of your remote control.

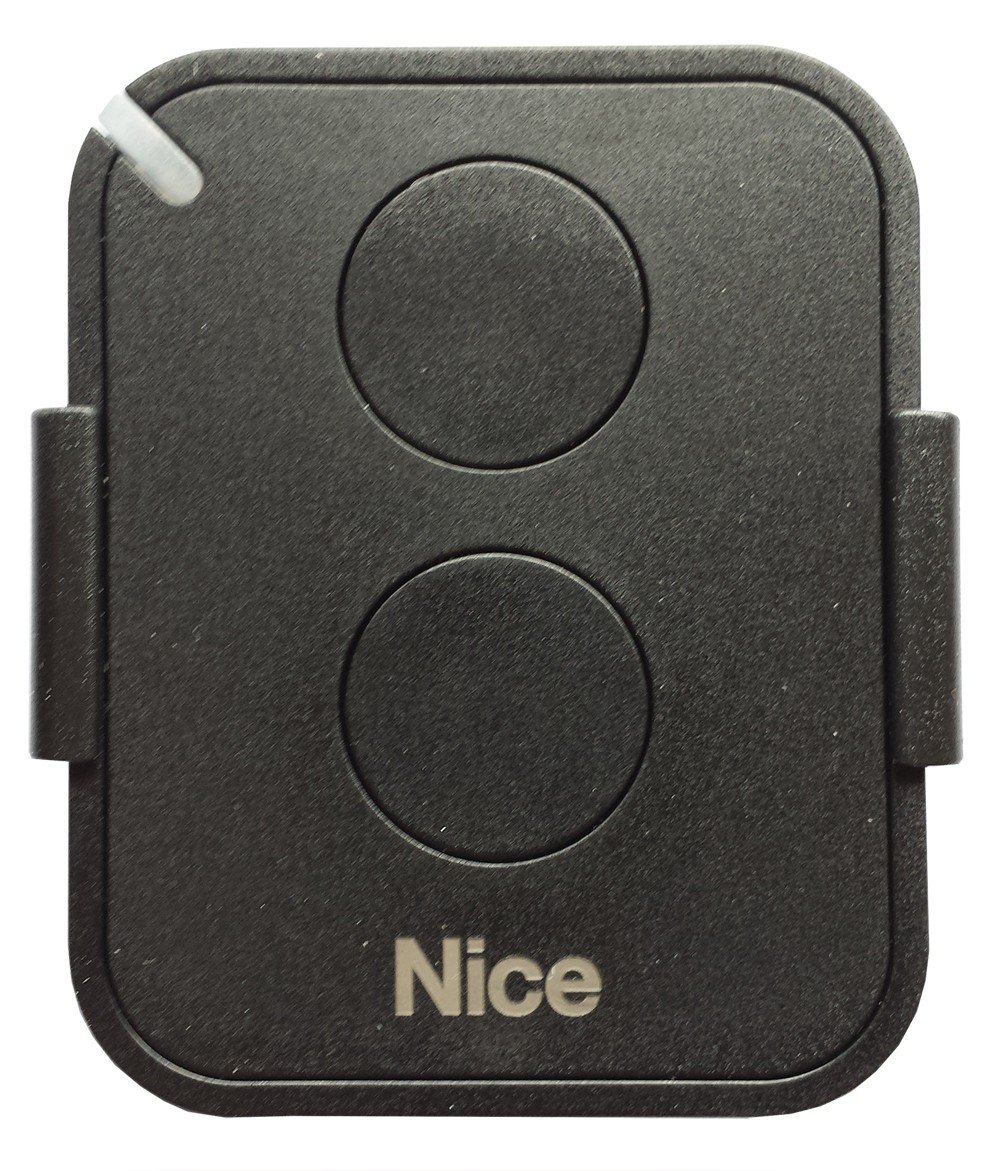

Figure 1: NICE FLO 2RE Remote Control
Setup
1. Battery Installation
The NICE FLO 2RE remote control uses one CR2032 alkaline battery, which is included. The battery is typically pre-installed or requires a simple activation step. If the remote is not responding, ensure the battery is correctly seated or replace it.
- Locate the battery compartment on the back or side of the remote control. This may require a small screwdriver or a coin to open.
- Carefully open the compartment.
- Insert the CR2032 battery with the positive (+) side facing up, following the polarity indicators inside the compartment.
- Close the battery compartment securely.
2. Programming the Remote Control
The NICE FLO 2RE remote control operates on a fixed code system. Programming is typically performed on the gate or garage door receiver unit, not directly on the remote control itself. Refer to the instruction manual for your specific gate or garage door opener system for detailed programming steps. Generally, the process involves:
- Accessing the programming button or menu on your gate/garage door receiver unit.
- Activating the receiver's programming mode.
- Pressing a button on the NICE FLO 2RE remote control to transmit its code to the receiver.
- Confirming successful programming, usually indicated by a light or sound from the receiver.
Note: This remote control is not designed for user-level programming in multi-user or condominium environments where individual remotes require complex setup procedures. It is intended for direct pairing with a compatible NICE receiver unit.
Operating
Once programmed, operating the NICE FLO 2RE remote control is straightforward:
- Ensure you are within the operating range of your gate or garage door system (up to 10 meters).
- Press the desired button on the remote control. The remote has two buttons, allowing for control of two different functions or gates if your receiver supports it.
- The gate or garage door should respond accordingly (open, close, stop).
For optimal performance, avoid obstructions between the remote control and the receiver unit.
Maintenance
Battery Replacement
When the remote control's range decreases significantly or it stops responding, the battery may need replacement. Follow the battery installation steps outlined in the "Setup" section to replace the CR2032 battery.
Cleaning
To clean the remote control, use a soft, dry cloth. Do not use abrasive cleaners, solvents, or immerse the remote in water.
Storage
Store the remote control in a dry place, away from direct sunlight and extreme temperatures. Avoid placing heavy objects on it or exposing it to impacts.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Remote control not working. | Dead or low battery. | Replace the CR2032 battery. |
| Remote control not working. | Remote not programmed to the receiver. | Refer to your gate/garage opener manual for programming instructions. |
| Reduced operating range. | Low battery. | Replace the CR2032 battery. |
| Reduced operating range. | Obstructions between remote and receiver. | Ensure a clear line of sight or reduce distance to the receiver. |
| Gate/door not responding. | Receiver unit issues or power loss. | Check the power supply and status of your gate/garage door opener receiver. |
Specifications
- Model: FLO2RE
- Brand: NICE
- Frequency: 433.92 MHz
- Number of Buttons: 2
- Battery Type: CR2032 (Alkaline)
- Battery Included: Yes (1 A - included)
- Dimensions (L x W x H): 0.8 x 0.6 x 0.2 cm (0.31 x 0.24 x 0.08 inches)
- Weight: 20 grams (0.71 ounces)
- Maximum Range: 10 meters (32.8 feet)
- Special Feature: Ergonomic design
- Color: Black
Warranty
The NICE FLO 2RE remote control comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
Support
For further assistance, technical support, or warranty inquiries, please contact your retailer or the manufacturer directly. You may also find additional resources on the official NICE website.
When contacting support, please have your product model (FLO2RE) and purchase information ready.
