ProBasics TCA1916BG Transport Wheelchair User Manual

Introduction

This manual provides essential instructions for the safe and effective use, assembly, maintenance, and troubleshooting of your ProBasics Transport Wheelchair. Please read this manual thoroughly before initial use and retain it for future reference.

The ProBasics Transport Wheelchair with a 19-inch seat is designed for individuals requiring assistance with mobility. It features a lightweight, foldable aluminum frame, padded armrests, a seat positioning belt, and swing-away footrests for user comfort and convenience. The chair is intended to be guided by a caregiver.

Image: The ProBasics Transport Wheelchair in its fully assembled state, showcasing its burgundy frame, black seat, and footrests.

Setup and Assembly

Your ProBasics Transport Wheelchair is designed for quick and easy setup. Follow these steps to prepare your chair for use:

1. Unfolding the Chair: Carefully remove the wheelchair from its packaging. Place the chair on a flat, stable surface. Grasp the armrests and pull them apart until the chair fully opens and the seat is flat. Ensure all frame components are securely locked into place.
2. Attaching Footrests: The footrests are designed to swing away for easy entry and exit. To attach, align the footrest pins with the corresponding holes on the chair frame. Push down firmly until they click into place. Ensure they are securely locked before use.
3. Adjusting Footrests: The footrests can be adjusted for height. Locate the adjustment pins on the footrest hangers. Press the pins and slide the footrest up or down to the desired height. Release the pins to lock the footrest in position.

Image: A side view of the transport wheelchair with its backrest partially folded, illustrating the compact folding mechanism.

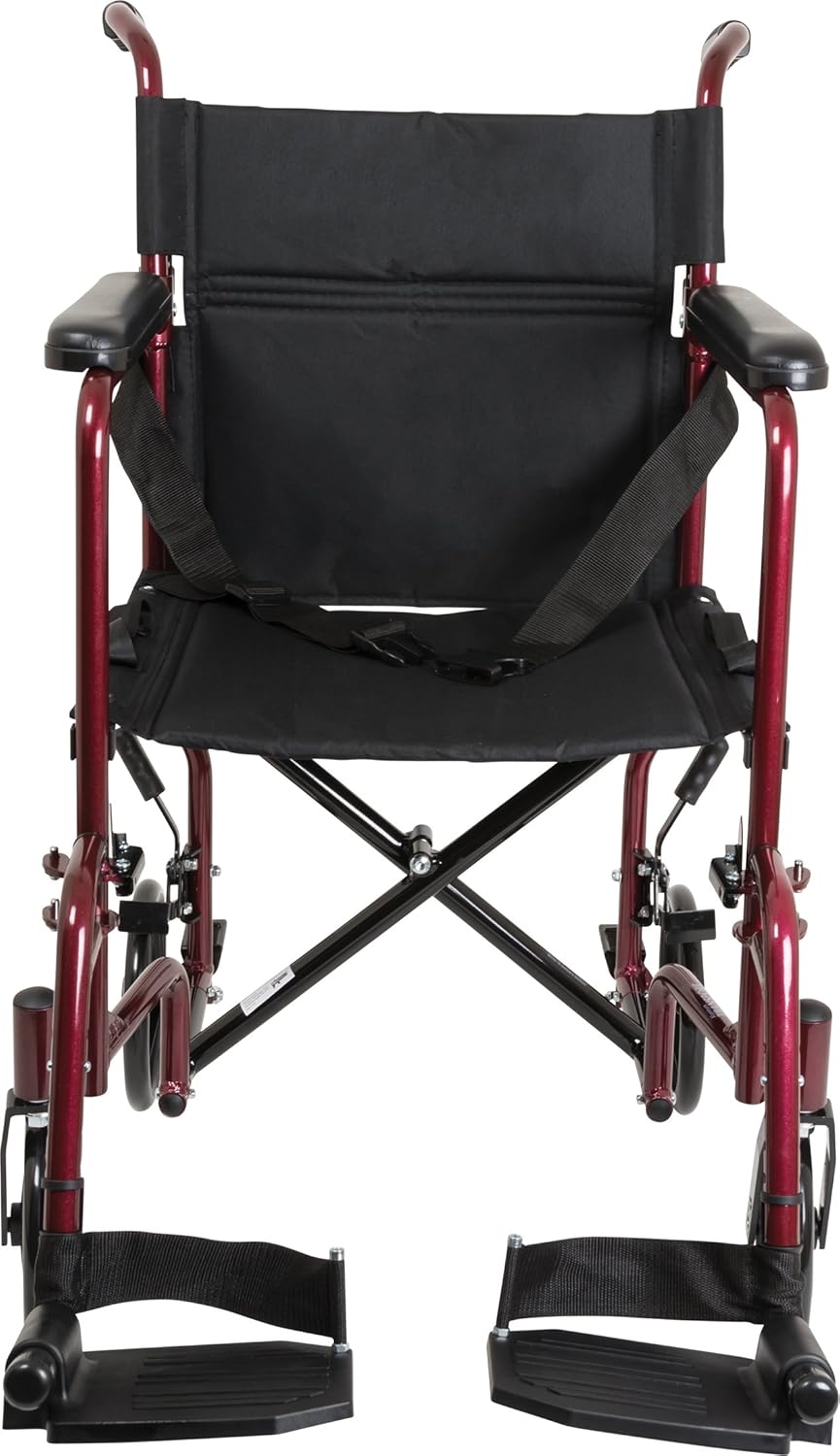

Image: A front view of the transport wheelchair, highlighting the adjustable swing-away footrests.

Folding for Storage and Transport

To fold the chair for storage or transport, first remove the footrests by pulling the release levers and swinging them outwards, then lifting them off. Next, locate the back-release hinge on the backrest and fold the backrest down. Finally, grasp the center of the seat and pull upwards to collapse the chair into a compact form.

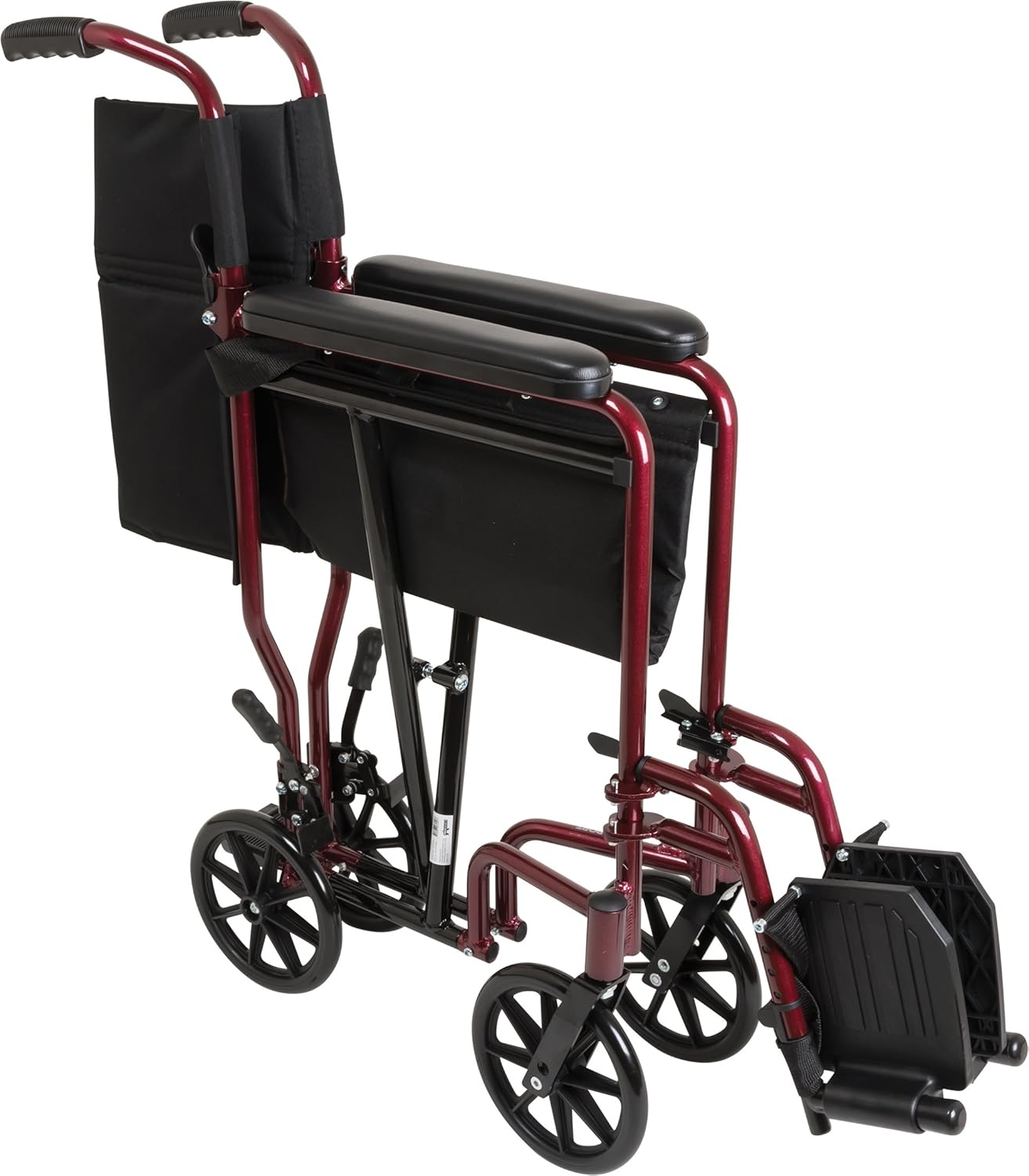

Image: The transport wheelchair in its folded state, viewed from the side, demonstrating its compact profile for storage.

Image: The transport wheelchair in its folded state, viewed from the front, showing how it collapses for easy transport.

Image: A detailed view of the back-release hinge, which facilitates the folding of the wheelchair's backrest.

Operating Instructions

The ProBasics Transport Wheelchair is designed for safe and comfortable transport when guided by a caregiver.

Caregiver Operation

• Always ensure the user is properly seated and the seat belt is fastened before moving the chair.
• Use the flared handles for an ergonomic grip and comfortable pushing.
• Navigate smoothly, avoiding sudden stops or turns that could dislodge the user.
• Be mindful of uneven surfaces, thresholds, and inclines. Approach obstacles carefully.

Image: A rear view of the transport wheelchair, highlighting the flared handles designed for caregiver comfort and control.

Wheel Locks

The transport wheelchair is equipped with user-engaged, push-to-lock rear wheel brakes. These brakes are essential for ensuring stability when the user is entering or exiting the chair, or when the chair needs to remain stationary.

• To engage the brakes, push the lever down firmly until it locks the wheel.
• To release the brakes, pull the lever upwards.
• Always engage both wheel locks when the chair is stationary and before transferring a user.

Image: A close-up of the rear wheel and its integrated push-to-lock brake mechanism.

Official Product Videos

Maintenance

Regular maintenance ensures the longevity and safe operation of your transport wheelchair.

• Cleaning: The nylon upholstery can be cleaned with a damp cloth and mild soap. Avoid abrasive cleaners. Wipe the frame with a damp cloth.
• Wheel Inspection: Periodically check the 8-inch solid rubber wheels for any signs of wear or damage. Ensure they rotate freely and the wheel locks engage properly.
• Frame and Fasteners: Regularly inspect the aluminum frame for cracks or bends. Check all bolts, screws, and fasteners to ensure they are tight. Do not overtighten.
• Footrests: Ensure the swing-away footrests attach and detach smoothly and securely. Check heel loops for wear.

Troubleshooting

If you encounter issues with your ProBasics Transport Wheelchair, refer to the following common solutions:

• Chair does not fold/unfold smoothly: Check for any obstructions in the folding mechanism. Ensure the back-release hinge is fully disengaged when folding.
• Wheels are stiff or do not roll: Inspect wheels for debris or hair accumulation. Ensure wheel locks are fully disengaged.
• Footrests are loose: Re-attach footrests, ensuring the pins are fully engaged. If adjustable, ensure the height adjustment pins are securely locked.
• Brakes not holding: Ensure the brake levers are pushed down completely. If the issue persists, inspect the brake mechanism for wear or damage.

For issues not resolved by these steps, please contact customer support.

Specifications

Warranty and Support

For information regarding the product warranty, please refer to the documentation included with your purchase or visit the official ProBasics website. For customer support, technical assistance, or to order replacement parts, please contact Roscoe Medical directly.
