ANKARSRUM Grain and Spice Mill User Manual

1. Introduction

This manual provides detailed instructions for the safe and efficient use of your ANKARSRUM Grain and Spice Mill, Model MC. This accessory is designed to attach to your Ankarsrum, Verona, DLX, or Electrolux Assistent machine, transforming it into a versatile mill for various dry ingredients.

The mill is engineered to grind a wide range of grains, beans, and spices, offering fresh ingredients for your culinary needs. Please read this manual thoroughly before first use to ensure proper operation and maintenance.

Figure 1.1: The ANKARSRUM Grain and Spice Mill, Model MC.

2. Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.

• Read all instructions before using the appliance.
• Ensure the appliance is unplugged from the power outlet before assembling, disassembling, or cleaning.
• Keep hands, hair, clothing, and utensils away from moving parts during operation to prevent injury.
• Do not use the mill for grinding wet, oily, or excessively moist ingredients, as this can damage the mechanism and affect performance.
• Never immerse the main unit of your Ankarsrum Assistent or the mill attachment in water or other liquids.
• Supervise children closely when the appliance is in use.
• Use only genuine ANKARSRUM accessories and parts.

3. Components of the Mill

The ANKARSRUM Grain and Spice Mill consists of the following main parts:

• Hopper: The top opening where ingredients are fed into the mill.
• Grinding Mechanism: Internal burrs that process the ingredients.
• Fineness Adjustment Knob: Located on the front, allows you to select the desired grind consistency from coarse to fine.
• Attachment Shaft: Connects the mill to the power unit of your Ankarsrum Assistent.

4. Setup and Assembly

Before first use, ensure your Ankarsrum Assistent machine is unplugged from the power outlet.

1. Position your Ankarsrum Assistent on a stable, flat surface.
2. Locate the accessory port on your Ankarsrum Assistent.
3. Align the attachment shaft of the Grain and Spice Mill with the accessory port.
4. Gently push and twist the mill until it securely locks into place. Ensure it is firmly attached and does not wobble.
5. Place a bowl or container beneath the mill's output spout to collect the ground ingredients.

Figure 4.1: The mill attached to the Ankarsrum Assistent, ready for grinding.

5. Operating Instructions

5.1 Preparing Ingredients

• Ensure all ingredients are dry and free from foreign objects (stones, metal, etc.).
• The mill is suitable for grinding various dry grains (e.g., wheat, rye, oats, rice, corn), beans, and spices (e.g., coffee beans, peppercorns).
• Do not attempt to grind wet, oily, or very soft ingredients as this can clog the mill.

5.2 Adjusting Grind Fineness

The fineness adjustment knob on the front of the mill allows you to select your desired grind:

• Turn the knob towards the larger dots for a coarser grind.
• Turn the knob towards the smaller dots for a finer grind.
• It is recommended to start with a coarser setting and gradually adjust to finer settings if needed.

5.3 Grinding Process

1. With the mill securely attached and a collection bowl in place, plug in your Ankarsrum Assistent.
2. Set the speed control of your Ankarsrum Assistent to a medium speed. Operating at excessively high speeds is not recommended for this attachment.
3. Slowly pour the ingredients into the hopper. Do not overload the hopper; feed ingredients gradually to ensure consistent grinding.
4. Allow the mill to process the ingredients. The grinding time will vary depending on the type of ingredient and desired fineness.
5. Once grinding is complete, turn off your Ankarsrum Assistent and unplug it from the power outlet.

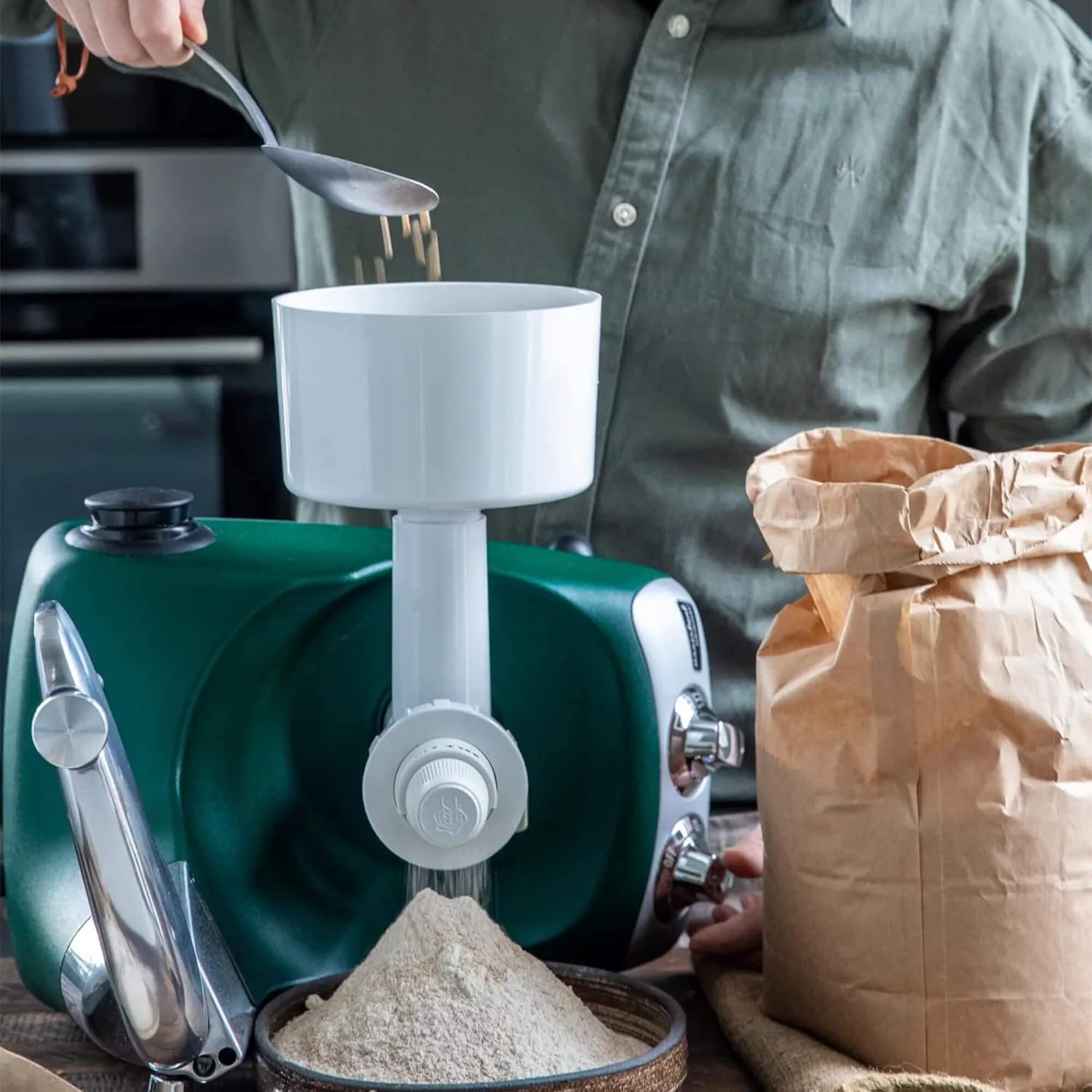

Figure 5.1: Adding ingredients to the mill's hopper.

Figure 5.2: Example of ground grain output.

Figure 5.3: The mill can also grind spices and coffee beans.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and longevity of your mill.

• Always unplug your Ankarsrum Assistent before cleaning the mill attachment.
• Detach the Grain and Spice Mill from the main unit.
• Disassemble the mill as per the instructions in your main Ankarsrum Assistent manual for accessory cleaning.
• The mill components should be hand washed only. Do not wash in a dishwasher.
• Use warm, soapy water and a soft brush to clean the grinding mechanism and other parts.
• Rinse thoroughly with clean water.
• Allow all parts to air dry completely before reassembling and storing. Ensure no moisture remains, especially in the grinding mechanism.

7. Troubleshooting

If you encounter issues with your Grain and Spice Mill, refer to the following common problems and solutions:

8. Product Specifications

9. Warranty and Support

For information regarding warranty coverage, technical support, or replacement parts, please refer to the documentation provided with your original Ankarsrum Assistent machine or visit the official ANKARSRUM website. Keep your purchase receipt as proof of purchase for warranty claims.
