Quorum International 159725-65 Dragonfly Patio Ceiling Fan Instruction Manual

1. Product Overview

The Quorum International 159725-65 Dragonfly 72-Inch Patio Ceiling Fan is designed for covered outdoor locations, offering both style and functionality. This fan features a satin nickel finish and five water-resistant gray canvas blades, providing a 72-inch blade span suitable for larger patio areas.

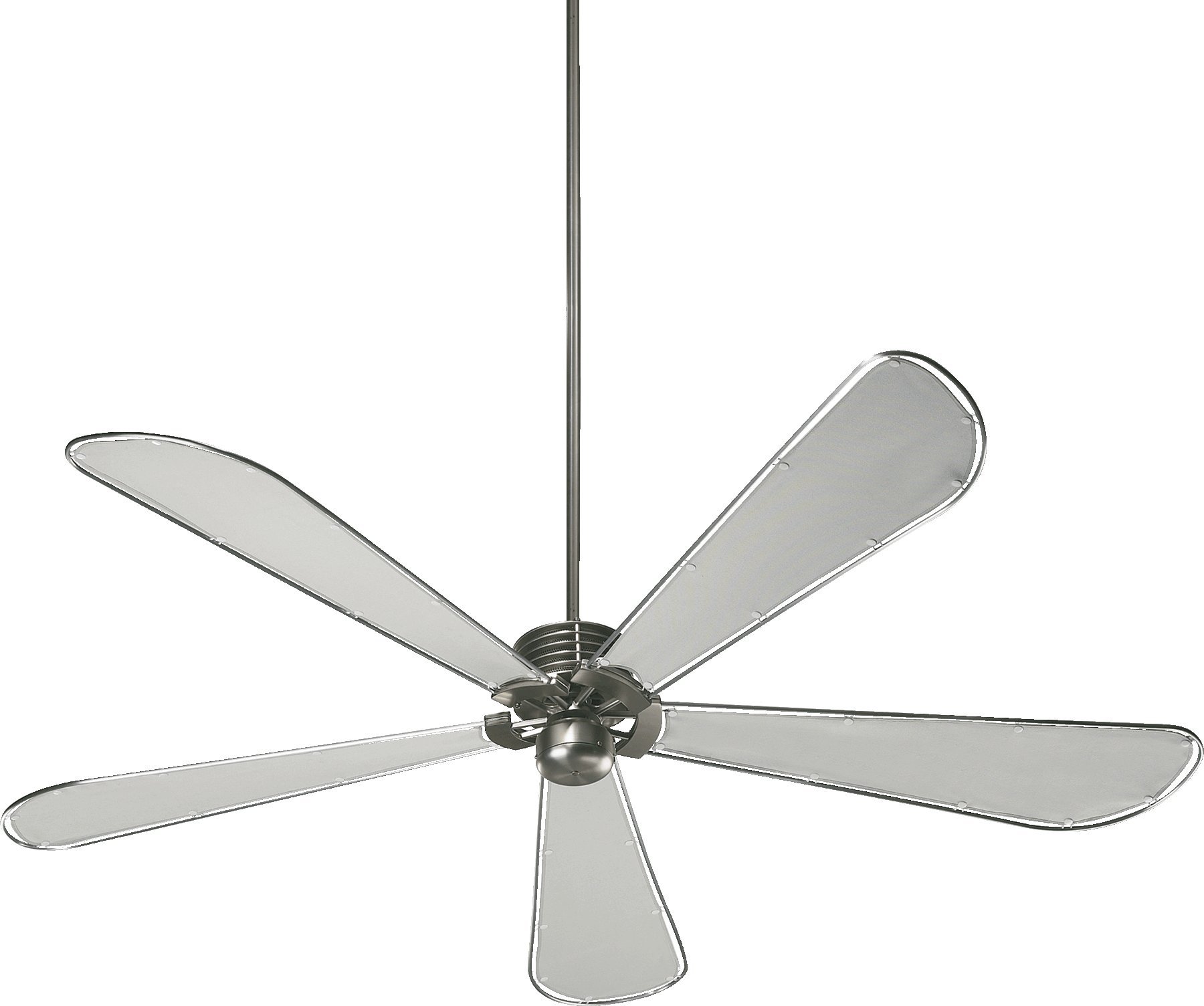

An image of the Quorum International 159725-65 Dragonfly Patio Ceiling Fan. It features a satin nickel finish motor housing and five gray canvas water-resistant blades, designed for covered outdoor spaces.

Key Features:

• 72-inch blade span with five water-resistant gray canvas blades.
• Satin nickel finish motor housing.
• Durable 28mm motor.
• UL listed for covered, damp locations.
• 13.5-inch height using the shortest included down rod.
• 12-degree blade pitch for optimal airflow.
• Light kit compatible (light kit not included, sold separately).

2. Setup and Installation

Before beginning installation, ensure all power to the installation location is disconnected at the circuit breaker. This fan is designed for downrod mounting in covered, damp locations.

2.1 Safety Precautions

• Always disconnect power before installation or servicing.
• Ensure the mounting structure can support the weight of the fan (approximately 3 lbs, plus accessories).
• Follow all local electrical codes and ordinances.
• Use only UL-listed components for wiring.

2.2 Unpacking and Inspection

1. Carefully remove all components from the packaging.
2. Inspect all parts for any damage. Do not proceed with installation if any parts are damaged.
3. Verify that all listed components are present.

2.3 Mounting the Fan

1. Install the mounting bracket to a suitable ceiling junction box rated for ceiling fan support.
2. Assemble the downrod to the motor housing, ensuring all screws are securely tightened.
3. Carefully lift the fan assembly and hang it from the mounting bracket.

2.4 Electrical Wiring

1. Connect the fan's electrical wires to the household supply wires according to the wiring diagram provided in the full installation guide (not included here).
2. Ensure all wire connections are secure and properly insulated.

2.5 Attaching the Blades

1. Attach each of the five gray canvas blades to the blade arms.
2. Secure the blade arms to the motor housing using the provided screws. Ensure all screws are tightened evenly to prevent wobbling.

3. Operating Instructions

The Dragonfly Patio Ceiling Fan is operated via a pull chain control, offering three distinct speed settings and a reverse function.

3.1 Fan Speed Control

The fan features a 3-speed pull chain control. Pull the chain repeatedly to cycle through the speed settings:

• First Pull: High Speed (approx. 100 watts, 4690 CFM airflow)
• Second Pull: Medium Speed
• Third Pull: Low Speed
• Fourth Pull: Off

3.2 Reverse Function

A separate switch on the motor housing controls the fan's direction (forward/reverse). This allows for seasonal optimization:

• Summer Operation: Set the switch for downward airflow to create a cooling effect.
• Winter Operation: Set the switch for upward airflow to circulate warm air trapped near the ceiling.

Note: Always turn off the fan and allow the blades to stop completely before changing the direction of rotation.

3.3 Optional Controls

For added convenience, optional remote controls and wall controls are available for separate purchase. Compatible models include:

• 7-3000 Hand-Held remote
• 7-1401-0 Hand-Held remote
• 7-1305-0 Wall Control

Refer to the instructions provided with the optional control for pairing and operation.

4. Maintenance

Regular maintenance ensures optimal performance and extends the life of your ceiling fan.

4.1 Cleaning

• General Cleaning: Periodically wipe the motor housing and blades with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish.
• Blade Cleaning: The gray canvas blades are water-resistant. For deeper cleaning, they can be gently wiped with a mild soap and water solution, then thoroughly dried.
• Dusting: Use a soft brush or vacuum cleaner with a brush attachment to remove dust from the blades and motor housing.

4.2 Annual Inspection

• Tighten Screws: Annually, check all screws on the motor housing, blade attachments, and mounting bracket to ensure they are secure. Loose screws can cause wobbling and noise.
• Electrical Connections: With power disconnected, visually inspect electrical connections for any signs of wear or loosening.

5. Troubleshooting

If you experience issues with your ceiling fan, consult the following common troubleshooting steps:

5.1 Fan Does Not Start

• Check Power: Ensure the circuit breaker is on and the wall switch (if applicable) is in the 'ON' position.
• Pull Chain: Verify the pull chain is fully engaged and has cycled through all speeds.
• Wiring: With power off, check all electrical connections for proper contact.

5.2 Fan Wobbles

• Blade Screws: Ensure all blade attachment screws are tight.
• Mounting: Verify the mounting bracket and downrod are securely fastened to the ceiling and motor housing.
• Blade Balance: Unevenly weighted blades can cause wobbling. Consider using a blade balancing kit (sold separately) if necessary.

5.3 Noisy Operation

• Loose Screws: Check and tighten all screws on the fan.
• Mounting: Ensure the fan is securely mounted and not touching any part of the ceiling.
• Motor Noise: A slight humming sound is normal for motors. If the noise is excessive, ensure all internal components are secure.

6. Specifications

7. Warranty Information

This Quorum International ceiling fan is covered by a Manufacturer Limited Lifetime Motor Warranty. For specific terms, conditions, and claim procedures, please refer to the warranty documentation included with your purchase or contact Quorum International directly.

8. Customer Support

For further assistance, technical support, or to inquire about replacement parts, please contact Quorum International customer service. You can find contact information on the official Quorum International website or through your product's packaging.
