1. Introduction
This manual provides comprehensive instructions for the safe and efficient installation, operation, and maintenance of your CATA Centrifugal Extraction System GS-600 Plus 2V. Please read this manual thoroughly before using the appliance and keep it for future reference. This extractor fan is designed to effectively remove humidity, steam, and unwanted odors from your kitchen environment, ensuring a fresh and comfortable cooking space.
2. Safety Information
To prevent personal injury or damage to the appliance, always observe the following safety precautions:
- Ensure the power supply voltage matches the rating label on the appliance.
- Disconnect the appliance from the main power supply before any cleaning, maintenance, or installation procedures.
- Installation must be performed by a qualified technician in accordance with local regulations and standards.
- Do not obstruct the air outlets or inlets of the extractor fan.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Do not use the appliance if the power cord or plug is damaged. Contact authorized service personnel for repair.
3. Product Features
The CATA GS-600 Plus 2V Centrifugal Extraction System offers the following key features:
- High Extraction Capacity: Moves up to 480 m³/h of air, effectively clearing kitchen air.
- Quiet Operation: Operates at a sound level of approximately 50 dB, minimizing noise disturbance.
- Energy Efficient: Maximum power consumption of 105 W, with an energy efficiency class C rating.
- Compact Design: Measures 37.5 cm in width, making it suitable for various kitchen layouts.
- Durable Construction: Made from high-quality stainless steel with a metallic white exterior.
- Ergonomic Plastic Turbine: Designed for cleaner steam output and enhanced extraction performance.
- Easy to Use: Features tactile controls for simple speed selection.
- Wall Mount Installation: Designed for secure and straightforward wall mounting.
4. Setup & Installation
The CATA GS-600 Plus 2V is designed for easy wall-mounted installation. Ensure you select an appropriate location in your kitchen that allows for proper ventilation and access for maintenance.
Figure 4.1: Technical drawing showing the dimensions of the CATA GS-600 Plus 2V extractor fan. The drawing indicates a width of 355mm, height of 312mm, and depth of 127mm, with specific measurements for the outlet and mounting points.
Before beginning installation, verify that the mounting surface is strong enough to support the weight of the unit. Refer to the technical drawing for precise measurements and mounting hole locations. Connect the unit to a suitable exhaust ducting system that leads to the outside. All electrical connections should be made by a qualified electrician.
5. Operating Instructions
The CATA GS-600 Plus 2V features tactile controls for simple operation. Once installed and connected to power, you can select the desired ventilation speed to effectively manage kitchen air quality.

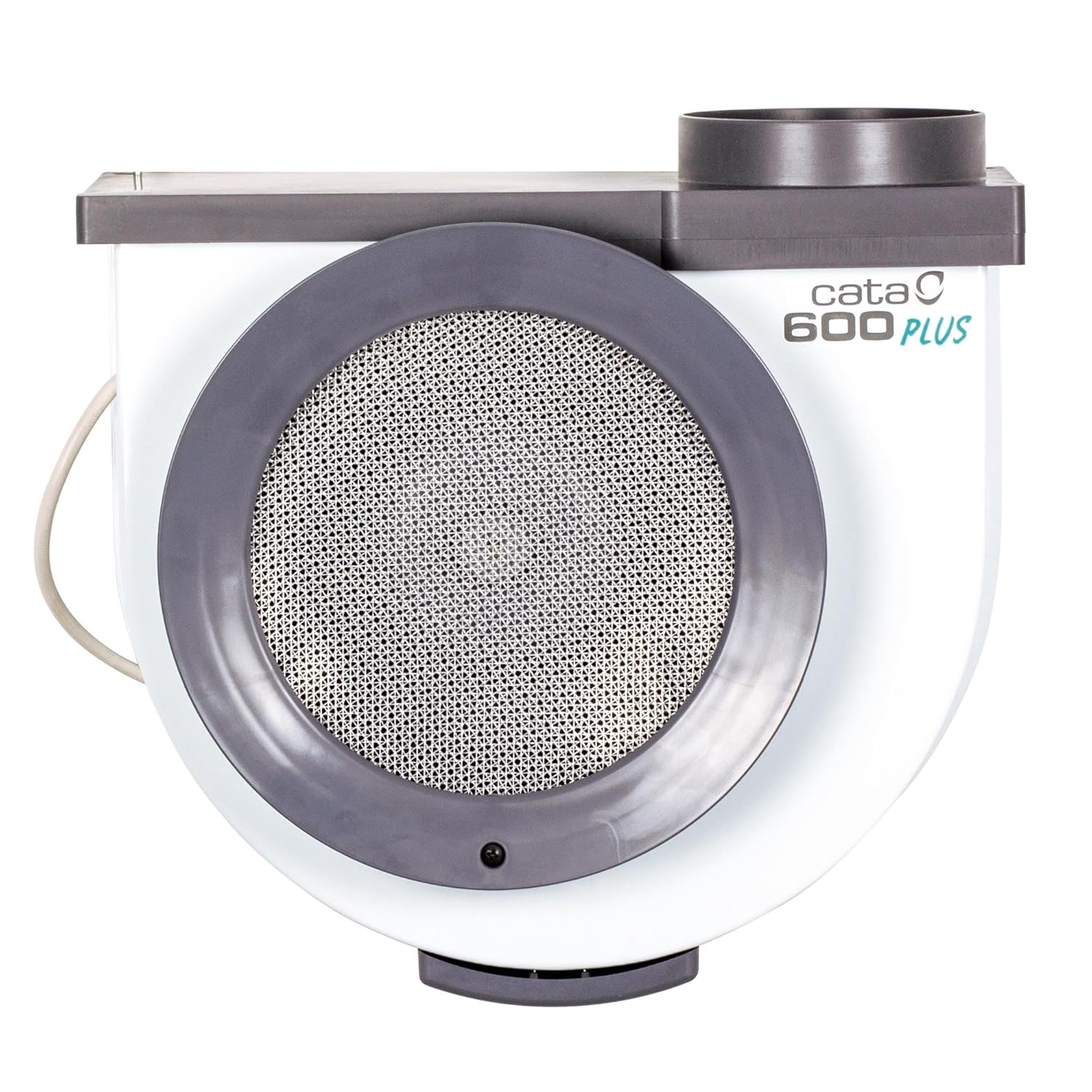

Figure 5.1: The CATA GS-600 Plus 2V extractor fan shown alongside its external control unit. The control unit features a rotary dial for speed selection and indicator lights, allowing users to adjust the extraction power.
- Power On/Off: Use the designated control to switch the unit on or off.
- Speed Selection: Adjust the speed setting based on the amount of steam, humidity, or odors present. Higher settings provide greater extraction power.
- Quiet Operation: The unit is designed to operate quietly, even at higher speeds, ensuring minimal disruption in your kitchen.
It is recommended to turn on the extractor fan a few minutes before cooking and leave it running for a short period after cooking to ensure all airborne particles and odors are effectively removed.
6. Maintenance & Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your CATA extractor fan. The unit is designed for easy cleaning.
Figure 6.1: A hand demonstrating how to interact with the removable filter cover of the CATA GS-600 Plus 2V extractor fan. This shows the mechanism for accessing the internal components for cleaning or maintenance.
Figure 6.2: A hand in the process of removing the circular filter cover from the CATA GS-600 Plus 2V extractor fan, revealing the mesh filter underneath. This illustrates the ease of access for cleaning the filter.
- Exterior Cleaning: Wipe the exterior surfaces with a soft, damp cloth and a mild detergent. Avoid abrasive cleaners or solvents that could damage the finish.
- Filter Cleaning: The mesh filter should be cleaned regularly, depending on usage. To clean, carefully remove the filter cover as shown in the figures above. Wash the filter in warm, soapy water or in a dishwasher. Ensure the filter is completely dry before re-installing.
- Internal Cleaning: Periodically, the internal components may require cleaning. This should only be performed after disconnecting the power and by following the instructions in this manual or by a qualified technician.
7. Troubleshooting
If you encounter any issues with your CATA GS-600 Plus 2V extractor fan, refer to the following common troubleshooting steps:
- Appliance does not turn on:
- Check if the appliance is properly plugged into a working power outlet.
- Verify that the circuit breaker has not tripped.
- Ensure the control unit is set to an 'On' position or a speed setting.
- Low extraction power:
- Check if the filter is clean and not clogged with grease or debris.
- Ensure the exhaust ducting is not obstructed.
- Verify that the selected speed setting is appropriate for the current cooking conditions.
- Excessive noise during operation:
- Check for any loose parts or foreign objects inside the unit.
- Ensure the unit is securely mounted to the wall.
- Verify that the ducting is properly installed and not vibrating.
If the problem persists after performing these checks, please contact CATA customer support or a qualified service technician.
