1. Product Overview
This document provides instructions and information for the Exmark 109-8007 Deck Lift Adjust Link. This component is a genuine Exmark factory replacement part designed for specific Exmark Lazer Z series lawn mowers. It plays a crucial role in the deck lift adjustment mechanism of compatible equipment, allowing for precise control over cutting height.
2. Compatibility
The Exmark 109-8007 Deck Lift Adjust Link is compatible with the following Exmark Lazer Z series models:
- Lazer Z
- Lazer Z AS
- Lazer Z Diesel
- Lazer Z S-Series
- Lazer Z X-Series
- Lazer Z Z-Series
Note: Fitment can vary by sub-model, serial number, and/or production date of your equipment. Always refer to your original equipment owner's manual to verify the correct part for your machine before installation.
3. Specifications
| Feature | Detail |
|---|---|
| Part Number | 109-8007 |
| Manufacturer | Exmark |
| Product Dimensions | 10 x 6 x 1 inches |
| Item Weight | 6.4 ounces |
| ASIN | B00CSBRWQE |
4. Installation and Setup
The Exmark 109-8007 Deck Lift Adjust Link is a replacement component. Installation should be performed by individuals familiar with lawn mower maintenance and repair. Always prioritize safety during installation.
Before You Begin:
- Ensure the equipment is turned off, the engine is cool, and the spark plug wire is disconnected to prevent accidental starting.
- Refer to your specific Exmark Lazer Z series owner's manual for detailed, model-specific installation instructions and safety precautions.
- Gather necessary tools for the task.
General Installation Steps (Consult your equipment manual for specifics):
- Safely raise and support the mower deck to access the deck lift mechanism.
- Locate the existing deck lift adjust link.
- Carefully remove the old link, noting its orientation and connection points.
- Install the new Exmark 109-8007 link, ensuring it is securely fastened at both ends.
- Verify proper deck height adjustment after installation according to your mower's manual.
- Lower the mower deck and reconnect the spark plug wire.
Improper installation can lead to equipment malfunction or injury. If you are unsure about any step, consult a qualified service technician.
5. Maintenance
This deck lift adjust link is designed for durability. Regular inspection of the link and surrounding components is recommended as part of your routine mower maintenance to ensure optimal performance and safety.
- Check for signs of wear, bending, corrosion, or other damage.
- Ensure all fasteners connecting the link are tight and secure.
- Keep the area around the link free from debris and obstructions.
Replace the link if any damage or excessive wear is observed to maintain proper deck function and prevent potential issues.
6. Troubleshooting
If you experience issues with your mower deck's height adjustment after replacing the link, consider the following common troubleshooting steps:
- Incorrect Deck Height: Re-check the installation of the link and ensure it is properly seated and adjusted according to your mower's manual. Verify that other deck lift components (e.g., springs, pins, other links) are not worn or damaged.
- Unusual Noises: Inspect the link and surrounding hardware for loose connections, signs of friction, or interference with other parts of the mower deck mechanism.
For persistent issues that cannot be resolved with these steps, consult your Exmark Lazer Z series owner's manual or contact an authorized Exmark service center for professional assistance.
7. Warranty and Support
As a genuine Exmark part, this product is covered by Exmark's standard warranty for replacement parts. Please refer to the warranty information provided with your original equipment or contact Exmark customer support for specific details regarding coverage and terms.
For technical assistance, product inquiries, or to locate an authorized Exmark dealer, please visit the official Exmark website or contact their customer service department directly.
8. Product Images

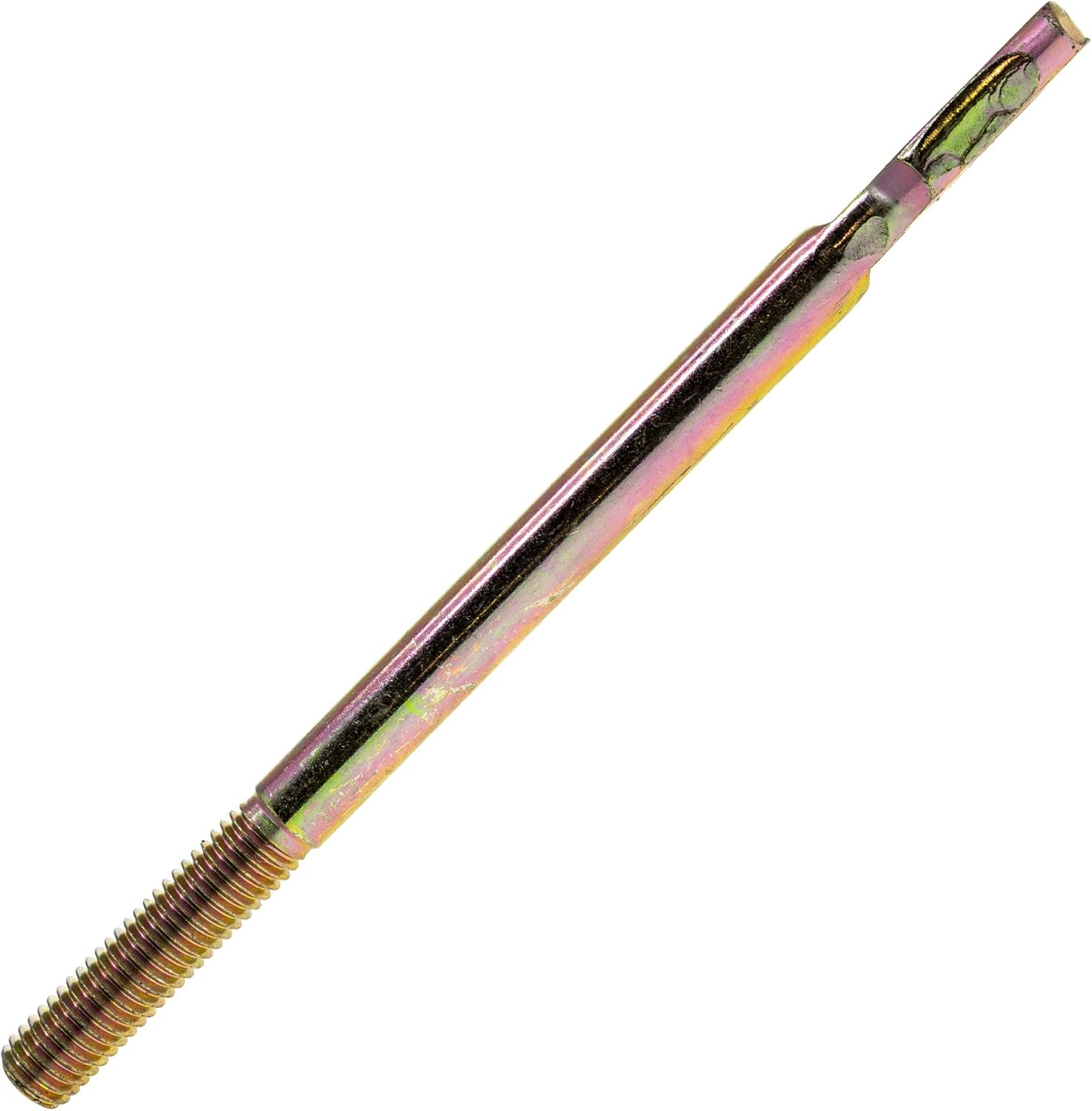

Top view of the Exmark 109-8007 Deck Lift Adjust Link, showing the threaded end and the eyelet.

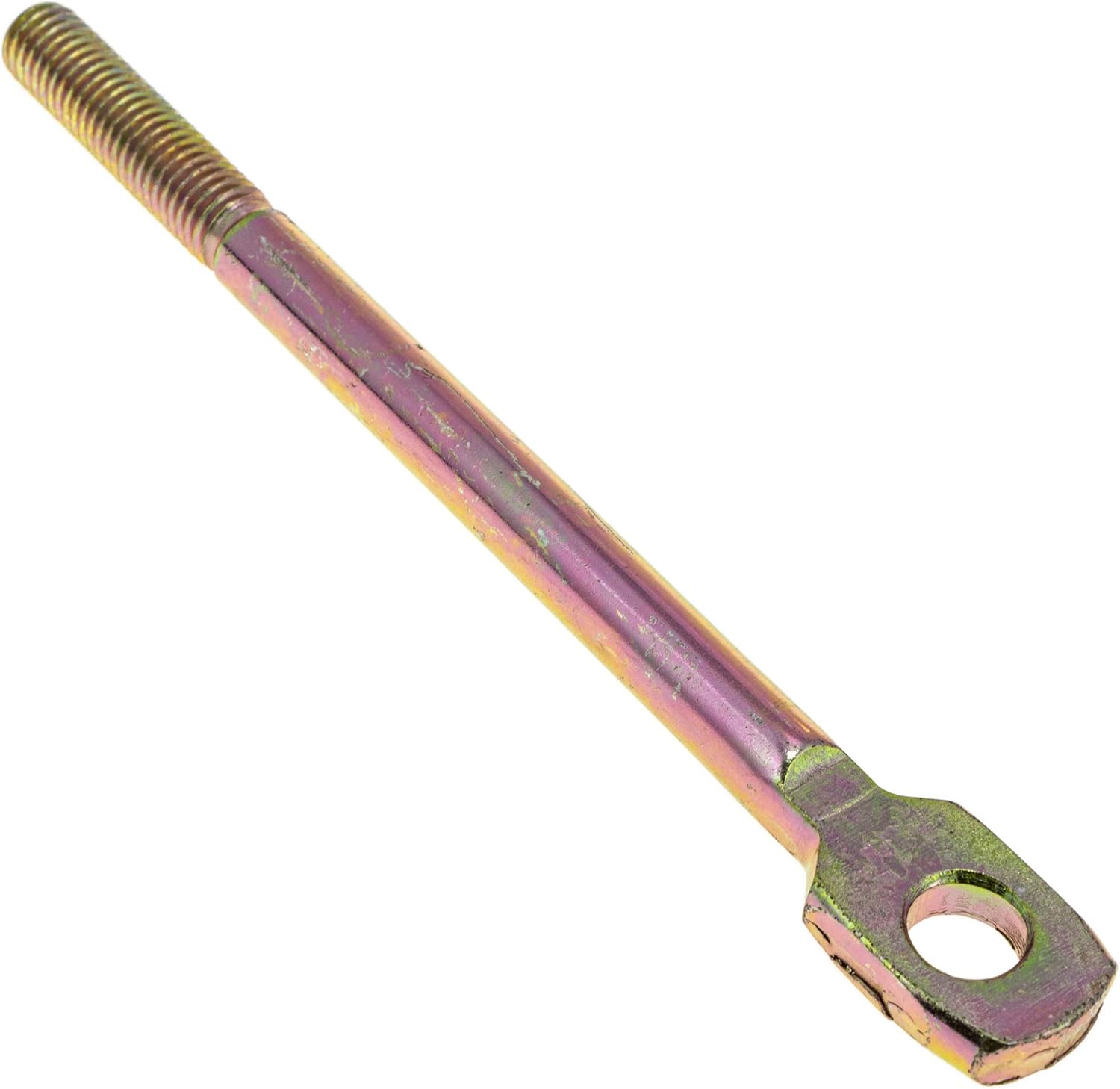

Angled view of the Exmark 109-8007 Deck Lift Adjust Link, highlighting the construction.
Side view of the Exmark 109-8007 Deck Lift Adjust Link, showing the full length.
9. Related Videos
Exmark Original Genuine Lawn & Garden Replacement Parts
This video from Exmark Manufacturing highlights the importance and range of genuine Exmark original parts for lawn and garden equipment, including various replacement and maintenance components.
