Vipack PINO Compact Bed with Slide (Model PIHSGB10) User Manual

1. Introduction

Thank you for choosing the Vipack PINO Compact Bed with Slide. This manual provides essential information for the safe assembly, use, and maintenance of your new bed. Please read these instructions carefully before assembly and retain them for future reference.

2. Safety Information

Your child's safety is paramount. Please adhere to the following guidelines:

• Maximum Weight Capacity: The bed is designed to support a maximum weight of 75 kilograms (165 lbs). Do not exceed this limit.
• Age Recommendation: Loft beds and beds with slides are generally recommended for children aged 6 years and older. Younger children may be at risk of injury from falls.
• Fall Prevention: Ensure guardrails are always securely in place. Do not allow children to jump on the bed.
• Slide Safety: Only one child should use the slide at a time. Always slide feet first. Ensure the area around the slide exit is clear of obstructions.
• Ladder Safety: Always use the ladder to access and exit the bed. Ensure the ladder is securely attached.
• Assembly: This product requires adult assembly. Ensure all parts are correctly assembled and all fasteners are tightened before use. Regularly check and tighten all bolts and screws.
• Choking Hazard: Keep small parts and hardware out of reach of children during assembly.
• Placement: Position the bed away from windows, cords, and other potential hazards.

3. Package Contents

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact your retailer.

• Bed frame components (posts, side rails, end panels)
• Bed slats
• Ladder components
• Slide components
• Hardware pack (screws, bolts, nuts, washers, Allen key)
• Assembly instructions (this manual)

4. Setup and Assembly Instructions

Assembly typically requires two adults. Clear a spacious area for assembly and lay out all components. Refer to the dimensional drawing for component identification and orientation.

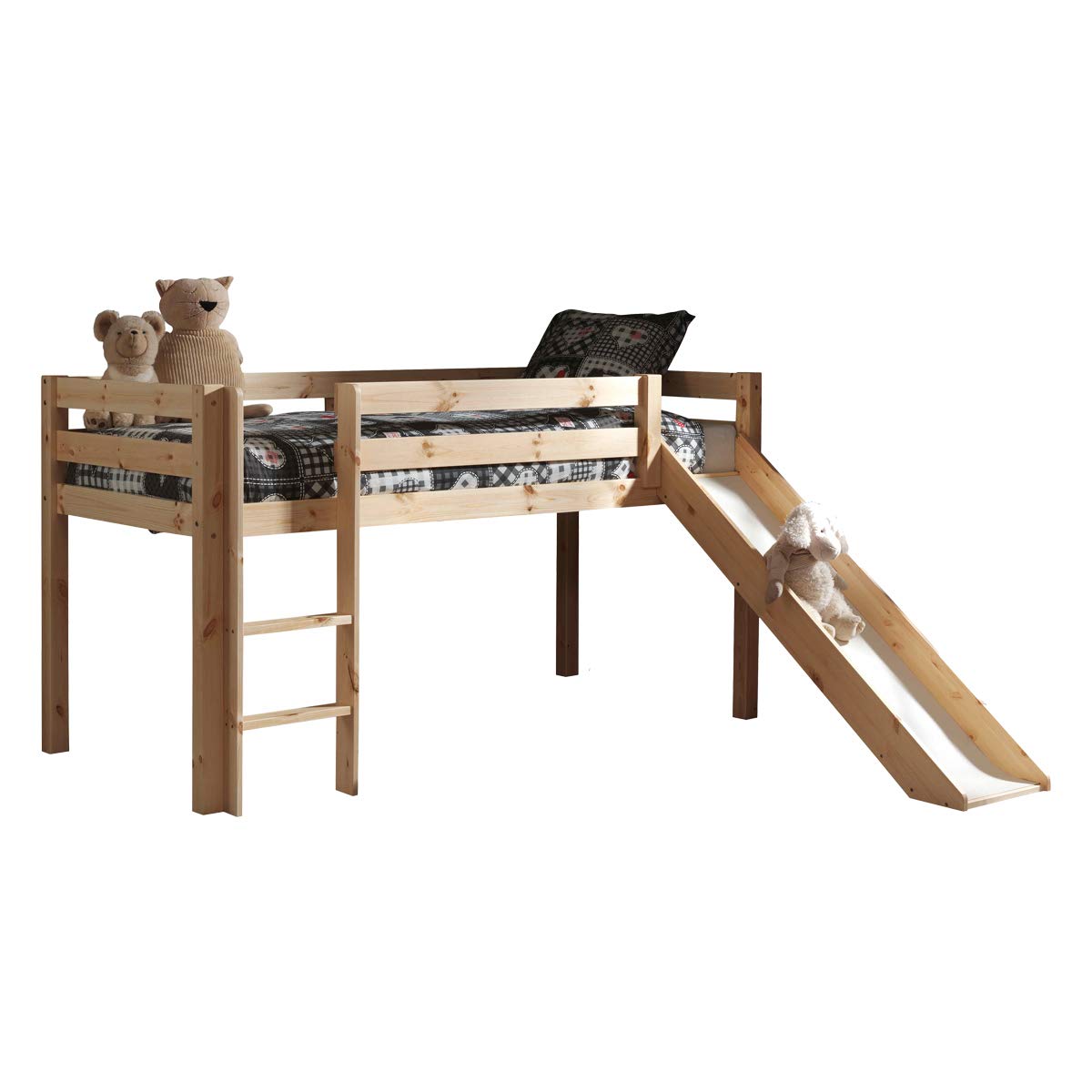

Figure 1: Overall view of the Vipack PINO Compact Bed with Slide, showcasing the natural pine finish, integrated ladder, and slide.

Figure 2: The Vipack PINO Compact Bed with Slide integrated into a child's room, demonstrating its functional and aesthetic appeal.

Figure 3: Detailed dimensional drawing of the Vipack PINO Compact Bed with Slide, showing all key measurements for assembly and space planning.

1. Step 1: Assemble the Bed Frame. Connect the bed posts to the side rails and end panels using the provided hardware. Ensure all connections are snug but do not overtighten until the frame is fully assembled.
2. Step 2: Attach the Ladder. Securely attach the ladder to the designated side of the bed frame using the specified bolts. Verify it is stable and does not wobble.
3. Step 3: Attach the Slide. Mount the slide to the opposite side of the bed frame, following the instructions for secure attachment. Ensure all fasteners are tight and the slide is stable.
4. Step 4: Install Bed Slats. Place the bed slats across the bed frame. Secure them if required by the design (e.g., with screws or plastic caps).
5. Step 5: Final Tightening. Once the entire bed is assembled, go back and firmly tighten all bolts and screws. Do not overtighten to avoid stripping threads or damaging wood.
6. Step 6: Mattress Placement. Place a suitable mattress on the bed slats. Ensure the mattress height does not compromise the effectiveness of the guardrails.

5. Operating and Usage Instructions

To ensure safe and enjoyable use of the Vipack PINO Compact Bed with Slide:

• Always use the ladder for climbing up and down from the bed.
• The slide is for single-person use only. Always slide down feet first.
• Do not allow children to play underneath the bed without supervision, especially if the space is enclosed.
• Regularly inspect the bed for any loose parts or signs of wear.

6. Maintenance

Proper maintenance will extend the life of your Vipack PINO bed:

• Cleaning: Wipe the bed frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the lacquered pine finish.
• Hardware Check: Periodically (e.g., monthly) check all bolts, screws, and fasteners to ensure they are tight. Retighten as necessary.
• Wood Care: Protect the wood from extreme temperature changes and direct sunlight to prevent warping or fading.

7. Troubleshooting

If you encounter any issues with your bed, consider the following:

• Bed feels wobbly: Re-check all assembly steps. Ensure all bolts and screws are fully tightened.
• Squeaking noises: Identify the source of the squeak. Often, it's a loose connection. Tighten the relevant hardware.
• Parts don't fit: Double-check the part numbers against the assembly diagram. Ensure parts are oriented correctly. Do not force parts together.

8. Specifications

9. Warranty and Support

Specific warranty information is not provided in the product data. For details regarding warranty coverage, spare parts availability, or customer support, please contact your retailer or the manufacturer, Vipack, directly. Keep your proof of purchase for any warranty claims.
