1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your D-Link Pan & Tilt Wi-Fi Camera (DCS-5020L). This camera offers advanced surveillance capabilities, allowing you to monitor your home or business remotely with ease.

Key features include ultra-smooth pan and tilt functionality, digital zoom, night vision, and motion/sound detection with instant alerts via the mydlink Lite app.

2. Product Overview and Package Contents

Before you begin, ensure all components are present in the package:

D-Link Pan & Tilt Wi-Fi Camera (DCS-5020L)
Power Adapter
Ethernet Cable
Mounting Kit (screws and wall anchors)
Quick Installation Guide

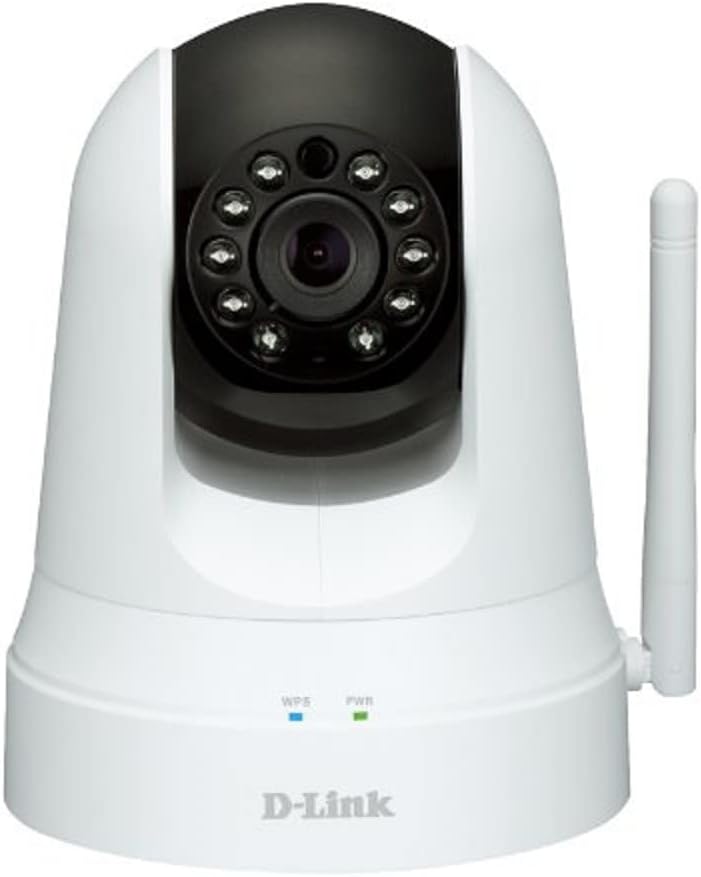

D-Link Pan & Tilt Wi-Fi Camera (DCS-5020L) showing the front view with lens, infrared LEDs, WPS and Power indicators, and antenna.

Figure 2.1: Front view of the D-Link DCS-5020L camera. It features a white dome-shaped body with a black pan/tilt head. The camera lens is surrounded by infrared LEDs for night vision. Below the head, on the base, are indicators for WPS and Power, and a detachable antenna is visible on the right side.

3. Setup and Installation

3.1. Placement

Choose a location that provides the desired viewing angle and is within range of your Wi-Fi network. The camera can be placed on a flat surface or mounted to a wall or ceiling using the provided mounting kit.

3.2. Powering On

Connect the power adapter to the camera's power port.
Plug the power adapter into a wall outlet. The Power LED will illuminate.

3.3. Network Connection (Wi-Fi)

There are two primary methods to connect your camera to your Wi-Fi network:

3.3.1. WPS (Wi-Fi Protected Setup) Method

Ensure your Wi-Fi router supports WPS.
Press the WPS button on your D-Link camera. The WPS LED will blink.
Within two minutes, press the WPS button on your Wi-Fi router.
Wait for the WPS LED on the camera to turn solid blue, indicating a successful connection.

3.3.2. Manual Setup via mydlink Lite App

Download the free mydlink Lite app from the App Store (iOS), Google Play (Android), or Windows Phone Store.
Open the app and create a mydlink account if you don't have one.
Follow the on-screen instructions in the app to add your new camera. You will typically scan a QR code on the camera or manually enter its setup information.
The app will guide you through connecting the camera to your Wi-Fi network.

4. Operating Instructions

4.1. Accessing Your Camera

The primary way to operate your D-Link camera is through the mydlink Lite app or the mydlink web portal (www.mydlink.com).

4.2. Pan & Tilt Control

Within the mydlink app, you can remotely control the camera's pan (horizontal) and tilt (vertical) movements to view different areas. The camera offers 340° pan and 120° tilt capability.

4.3. Digital Zoom

Use the digital zoom feature (up to 4x) in the app to get a closer look at specific details within the camera's view.

4.4. Night Vision

The camera automatically switches to night vision mode in low-light conditions, providing clear black-and-white video up to 26 feet (8 meters).

4.5. Motion and Sound Detection

Configure motion and sound detection settings in the mydlink app. When motion or sound is detected, the camera can send instant push notifications to your connected device, allowing you to stay informed of events.

Video 4.1: An overview of D-Link Wi-Fi Cameras, demonstrating their use for home security and monitoring. The video highlights features like remote viewing via mobile app, instant alerts for motion/sound detection, and ease of DIY installation. It shows scenarios such as monitoring children arriving home and receiving alerts about pets.

5. Maintenance

To ensure optimal performance and longevity of your D-Link camera, follow these maintenance guidelines:

Cleaning: Gently wipe the camera lens and body with a soft, dry, lint-free cloth. Do not use liquid cleaners or aerosol sprays.
Firmware Updates: Regularly check for and install firmware updates through the mydlink app or web portal. Updates often include performance improvements and security enhancements.
Network Stability: Ensure your Wi-Fi network is stable and strong to prevent connection drops and ensure continuous monitoring.
Power Supply: Use only the original power adapter provided with the camera.

6. Troubleshooting

Problem	Possible Solution
Camera not connecting to Wi-Fi.	Ensure the camera is within range of your Wi-Fi router. Verify your Wi-Fi password is correct. Try using the WPS method if your router supports it. Restart both the camera and your router.
No video feed in mydlink app.	Check if the camera's Power LED is solid green. Ensure your mobile device has an active internet connection. Log out and log back into the mydlink app. Restart the camera.
Motion/Sound alerts not received.	Verify detection settings are enabled in the mydlink app. Check your phone's notification settings for the mydlink app. Ensure the camera has a stable internet connection.
Pan/Tilt control is unresponsive.	Ensure the camera is powered on and connected to the network. Check for any physical obstructions preventing movement. Restart the camera.

7. Specifications

Feature	Detail
Model Name	DCS-5020L
Brand	D-Link
Video Capture Resolution	480p
Pan/Tilt Capability	340° Pan, 120° Tilt
Digital Zoom	4x
Night Vision Range	26 Feet (8 meters)
Connectivity Technology	Wireless (Wi-Fi)
Power Source	AC/DC Adapter (12 Volts, 1 Watt)
Compatible Devices	Smartphone, Tablet (iOS, Android, Windows Phone)
Special Features	Motion Sensor, Sound Detection, Night Vision, Wi-Fi Extender
Dimensions (L x W x H)	4.03 x 4.54 x 5.26 inches
Item Weight	0.64 Pounds (10.2 ounces)
Color	White
International Protection Rating	IP65

8. Warranty and Support

For warranty information and technical support, please refer to the D-Link official website or contact D-Link customer service. Keep your purchase receipt for warranty claims.

D-Link Support Website: support.dlink.com
