Hecht 553 Lawn Mower User Manual

1. Introduction

Thank you for choosing the Hecht 553 Lawn Mower. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new lawnmower. Please read this manual thoroughly before operating the machine and keep it for future reference.

The Hecht 553 is a robust lawnmower designed for efficient grass cutting in various garden conditions. It features a powerful Briggs and Stratton engine, a 53 cm cutting width, and a large 72-liter grass catcher, making it suitable for medium to large-sized lawns.

Overall view of the Hecht 553 lawnmower, showcasing its red and black design with the grass catcher attached.

2. Safety Instructions

WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Personal Protective Equipment (PPE): Always wear appropriate eye protection, hearing protection, sturdy footwear, and long trousers while operating the lawnmower.
• Area Preparation: Before mowing, clear the area of objects such as rocks, sticks, wires, and toys that could be thrown by the blade.
• Children and Bystanders: Keep children, pets, and bystanders at a safe distance (at least 15 meters) from the operating lawnmower.
• Engine Shutdown: Always turn off the engine and disconnect the spark plug wire before performing any adjustments, cleaning, or maintenance.
• Slope Operation: Exercise extreme caution when mowing on slopes. Mow across the face of slopes, never up and down. Avoid mowing excessively steep slopes.
• Fuel Handling: Refuel outdoors only. Do not smoke while refueling. Allow the engine to cool before adding fuel.
• Blade Safety: Never place hands or feet near rotating parts. The blade continues to rotate for a short period after the engine is switched off.

3. Setup and Assembly

3.1 Unpacking

Carefully remove all components from the packaging. Check for any damage during transit. Ensure all parts listed in the packing list are present.

3.2 Handlebar Assembly

Attach the lower and upper handlebars to the main unit using the provided bolts and knobs. Ensure all connections are secure. The handlebar features ergonomic controls for comfortable operation.

The ergonomic handlebar of the Hecht 553 lawnmower with control levers for operation and safety.

3.3 Grass Catcher Assembly

Assemble the fabric grass catcher onto its frame. Attach the grass catcher to the rear of the lawnmower, ensuring it is securely hooked into place. The 72-liter capacity allows for extended mowing sessions without frequent emptying.

The large 72-liter grass catcher of the Hecht 553 lawnmower, designed for efficient collection of clippings.

3.4 Adding Engine Oil and Fuel

Before first use, fill the engine with the recommended type and amount of engine oil (refer to the Briggs and Stratton engine manual for specifics). Fill the fuel tank with fresh, unleaded gasoline. Do not overfill.

Detailed view of the Briggs & Stratton engine on the Hecht 553 lawnmower, showing key components like the air filter cover and fuel cap.

3.5 Adjusting Cutting Height

The Hecht 553 allows for easy adjustment of cutting height. Locate the height adjustment levers on each wheel or a central lever (depending on model variation). Adjust all wheels to the desired cutting height before starting the engine. For best results, avoid cutting more than one-third of the grass blade length at a time.

Side view of the Hecht 553 lawnmower, illustrating the wheel and deck design, potentially showing the cutting height adjustment lever.

4. Operating Instructions

4.1 Starting the Engine

1. Ensure the spark plug wire is securely connected.
2. Push the primer bulb (if equipped) 3-5 times until fuel is visible.
3. Hold the engine brake lever (safety bail) against the handlebar.
4. Pull the starter rope with a firm, steady motion until the engine starts.

Another perspective of the lawnmower's handlebar, highlighting the safety bail and drive engagement lever.

4.2 Mowing Techniques

For best results, mow when the grass is dry. Overlap cutting swaths slightly to ensure an even cut. For thick or tall grass, consider making two passes, raising the cutting height for the first pass.

4.3 Stopping the Engine

To stop the engine, release the engine brake lever (safety bail). The engine will automatically shut off.

5. Maintenance

WARNING: Always ensure the engine is off and the spark plug wire is disconnected before performing any maintenance or cleaning.

5.1 Cleaning

After each use, clean the underside of the mower deck to prevent grass buildup, which can affect cutting performance. Use a hose to rinse off grass clippings, but avoid spraying water directly into the engine or electrical components.

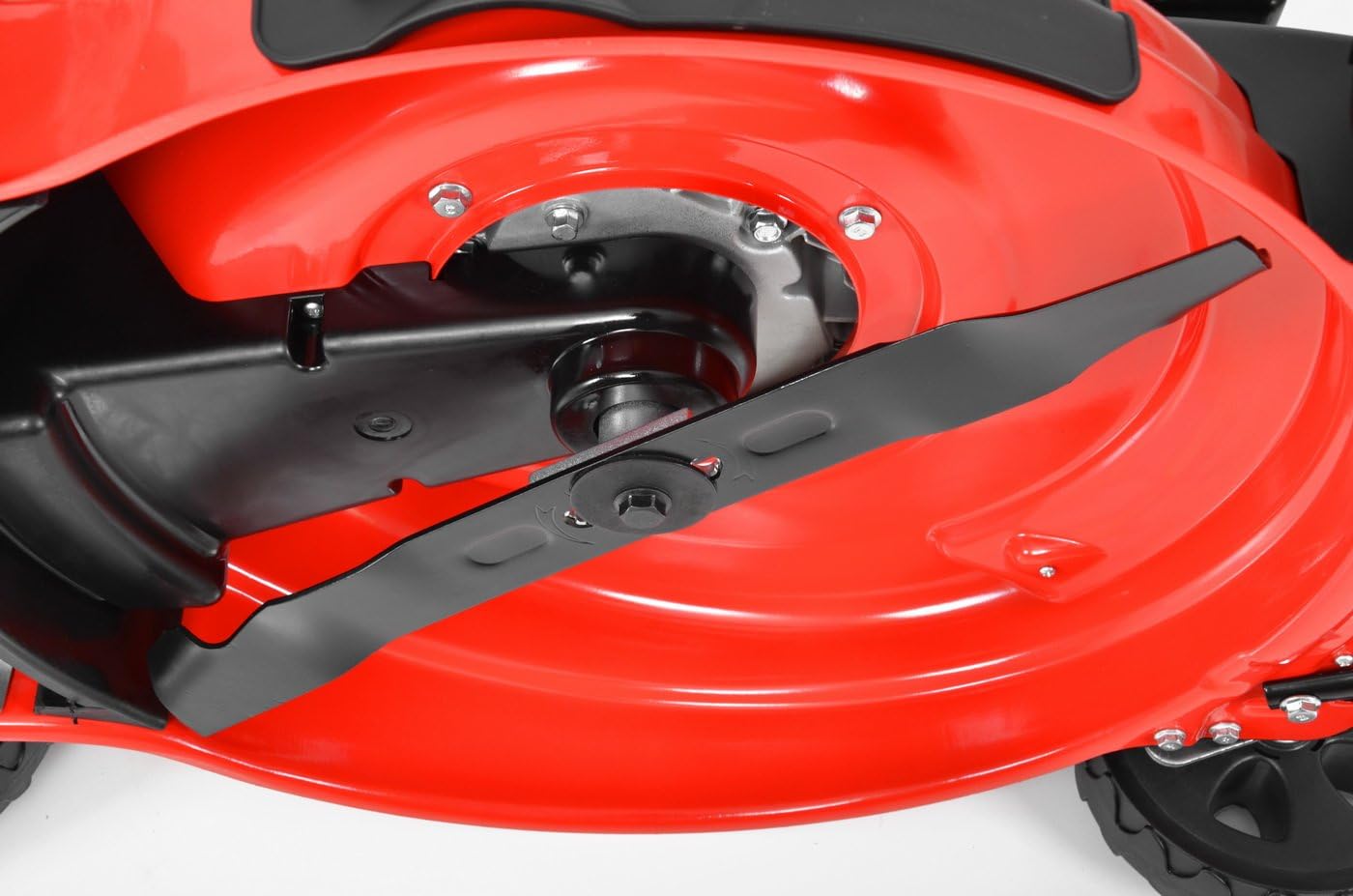

Underside view of the Hecht 553 lawnmower deck, clearly showing the cutting blade and its mounting.

5.2 Blade Care

Regularly inspect the cutting blade for sharpness and damage. A dull blade tears grass, leading to an unhealthy lawn. Sharpen or replace the blade as needed. Always use genuine Hecht replacement parts.

5.3 Engine Maintenance

Refer to the separate Briggs and Stratton engine manual for detailed maintenance schedules, including oil changes, air filter cleaning/replacement, and spark plug inspection/replacement. Regular engine maintenance ensures optimal performance and longevity.

5.4 Storage

For long-term storage, clean the lawnmower thoroughly. Drain the fuel or add a fuel stabilizer. Store in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.

6. Troubleshooting

7. Specifications

• Brand: Hecht
• Model: 553
• Engine: Briggs and Stratton
• Cutting Width: 53 Centimeter
• Grass Catcher Capacity: 72 Liter
• Operating Mode: Manual (referring to manual start, self-propelled via wheel drive)
• ASIN: B00CKI0I2U
• First Available Date: August 31, 2020

8. Warranty Information

Hecht products are manufactured to high-quality standards and are guaranteed against manufacturing defects. Please refer to the warranty card included with your product for specific terms, conditions, and duration of the warranty. Keep your proof of purchase for any warranty claims.

9. Customer Support

For technical assistance, spare parts, or service inquiries, please contact your authorized Hecht dealer or visit the official Hecht website. When contacting support, please have your model number (Hecht 553) and serial number ready.
