Introduction
This manual provides instructions for the installation, operation, and maintenance of the Barkan Swivel and Tilt TV/PC Monitor Wall Mount, model BAR-E120. This mount is designed to securely hold flat and curved screens ranging from 13 to 29 inches, with a maximum weight capacity of 15 kg (33 lbs). It supports VESA mounting patterns of 75x75mm and 100x100mm. The mount offers flexible viewing angles with 160-degree swivel, 0-15 degree tilt, and a +/-3 degree post-installation leveling adjustment.

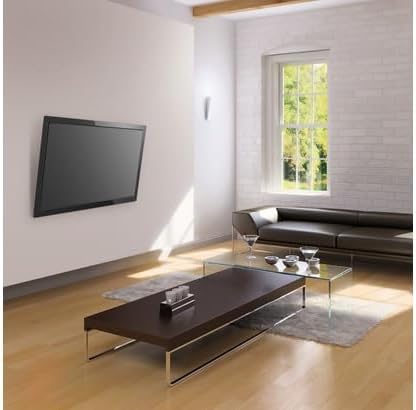

Image: The Barkan wall mount securely holding a television in a modern living room setting.
Safety Information
- Weight Capacity: Do not exceed the maximum weight capacity of 15 kg (33 lbs). Exceeding this limit can result in serious injury or equipment damage.
- Wall Structure: Ensure the wall structure can safely support the combined weight of the mount and the display. Consult a professional if unsure about wall integrity.
- Wall Types: This mount is suitable for installation on solid concrete walls, brick walls, or solid wood walls. Do not install on plasterboard, hollow walls, or soft walls without proper reinforcement.
- Tools: Use appropriate tools for installation and follow all instructions carefully. Wear safety glasses during drilling.
- Children: Keep children away from the installation area.
- Tightening: Do not overtighten screws, as this may cause damage.
Package Contents
Verify that all components are present before beginning installation.
- Wall Mount Support
- Wall Anchors for Solid Walls
- Mounting Screws (various sizes for TV connection)
- Metal Washers
- Plastic Spacers
- Installation Guide
Image: Detailed view of the Barkan Hardware Kit, illustrating various screws, wall anchors, metal washers, and plastic spacers provided for installation.
Note: If your screen requires different connection screws than those provided, please purchase them from your local hardware store or contact Barkan support.
Setup and Installation
Follow these steps for a secure and proper installation of your Barkan wall mount.
Step 1: Prepare the Wall
- Choose a suitable location on a solid concrete, brick, or solid wood wall. Avoid plasterboard or hollow walls.
- Use a stud finder to locate wall studs if installing on a wood wall.
- Mark the drilling points for the wall bracket. Ensure the marks are level.
- Drill pilot holes at the marked locations using an appropriate drill bit for your wall type.
Step 2: Install the Wall Bracket
- Insert the wall anchors (if required for your wall type) into the drilled holes.
- Position the wall bracket over the holes and secure it to the wall using the provided wall screws. Tighten firmly but do not overtighten.
Step 3: Attach Adapter to Display
- Identify the VESA mounting holes on the back of your TV or monitor. This mount supports 75x75mm and 100x100mm patterns.
- Select the correct screws, washers, and spacers from the hardware kit that fit your display's mounting holes.
- Attach the adapter plate (the part that connects to the display) to the rear of your TV/monitor. Ensure it is securely fastened.
Step 4: Mount the Display
- Carefully lift the display with the attached adapter plate.
- Align the adapter plate with the wall bracket and snap the electronic device onto the bracket. Ensure it is fully engaged and secure. The mount's inner structure is designed to prevent accidental disengagement.
Image: Product benefits diagram showing the simple 1-2-3 assembly process and features like screen leveling and tool-free tilt.
Operating Instructions
The Barkan BAR-E120 mount allows for flexible positioning of your screen to achieve the optimal viewing angle.
- Swivel Adjustment: The mount allows for a 160-degree swivel movement. Gently push or pull the screen to adjust its horizontal angle.
- Tilt Adjustment: The mount features a tool-free tilt adjustment from 0 to 15 degrees. Apply gentle pressure to the top or bottom of the screen to adjust its vertical angle. The automotive friction brake-pads ensure smooth and stable positioning.
- Screen Leveling: After installation, a built-in mechanism allows for a +/-3 degree leveling adjustment to ensure your screen is perfectly horizontal.
Image: Technical drawing detailing the dimensions, 160-degree swivel, and 0-15 degree tilt capabilities of the mount.
Maintenance
- Regular Checks: Periodically inspect all mounting screws and connections to ensure they remain tight and secure.
- Cleaning: Clean the mount with a soft, dry cloth. Do not use abrasive cleaners, solvents, or chemical-based cleaning products, as these may damage the finish.
- Lubrication: No lubrication is required for the moving parts.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Screen is not level. | Minor misalignment during installation. | Use the built-in +/-3 degree leveling mechanism to adjust the screen's horizontal position. |
| Mount feels loose or unstable. | Screws may have loosened over time or were not tightened sufficiently during installation. | Carefully re-tighten all wall mounting screws and display attachment screws. Do not overtighten. Ensure the wall structure is sound. |
| Display does not fit the mount. | Incorrect VESA pattern or screen size/weight. | Verify your display's VESA pattern (75x75mm or 100x100mm) and ensure its size (13-29 inches) and weight (max 15kg) are within the mount's specifications. |
Specifications
| Model Number | BAR-E120 |
| Screen Sizes Supported | 13 - 29 inches (33 - 74 cm) |
| Maximum TV Weight | 15 kg (33 lbs) |
| VESA Compatibility | 75x75mm, 100x100mm |
| Distance from Wall | 9.4 cm (3.7 inches) |
| Swivel Range | 160 degrees |
| Tilt Range | 0 to 15 degrees (tool-free) |
| Leveling Adjustment | +/-3 degrees (post-installation) |
| Material | Alloy Steel |
| Color | Black |
| Country of Origin | Netherlands |
Image: Official specifications table for the Barkan Swivel and Tilt TV/Monitor Wall Mount.
Warranty and Support
The Barkan Swivel and Tilt TV/PC Monitor Wall Mount (BAR-E120) comes with a Lifetime Limited Warranty.
For product support, technical assistance, or warranty claims, please visit the official Barkan support website: https://www.barkanmounts.com/support.
