1. Introduction
This manual provides essential information for the safe installation, operation, and maintenance of your Zoeller Mighty Mate M53 Sump Pump. Please read all instructions carefully before proceeding to ensure proper function and to prevent injury or damage.

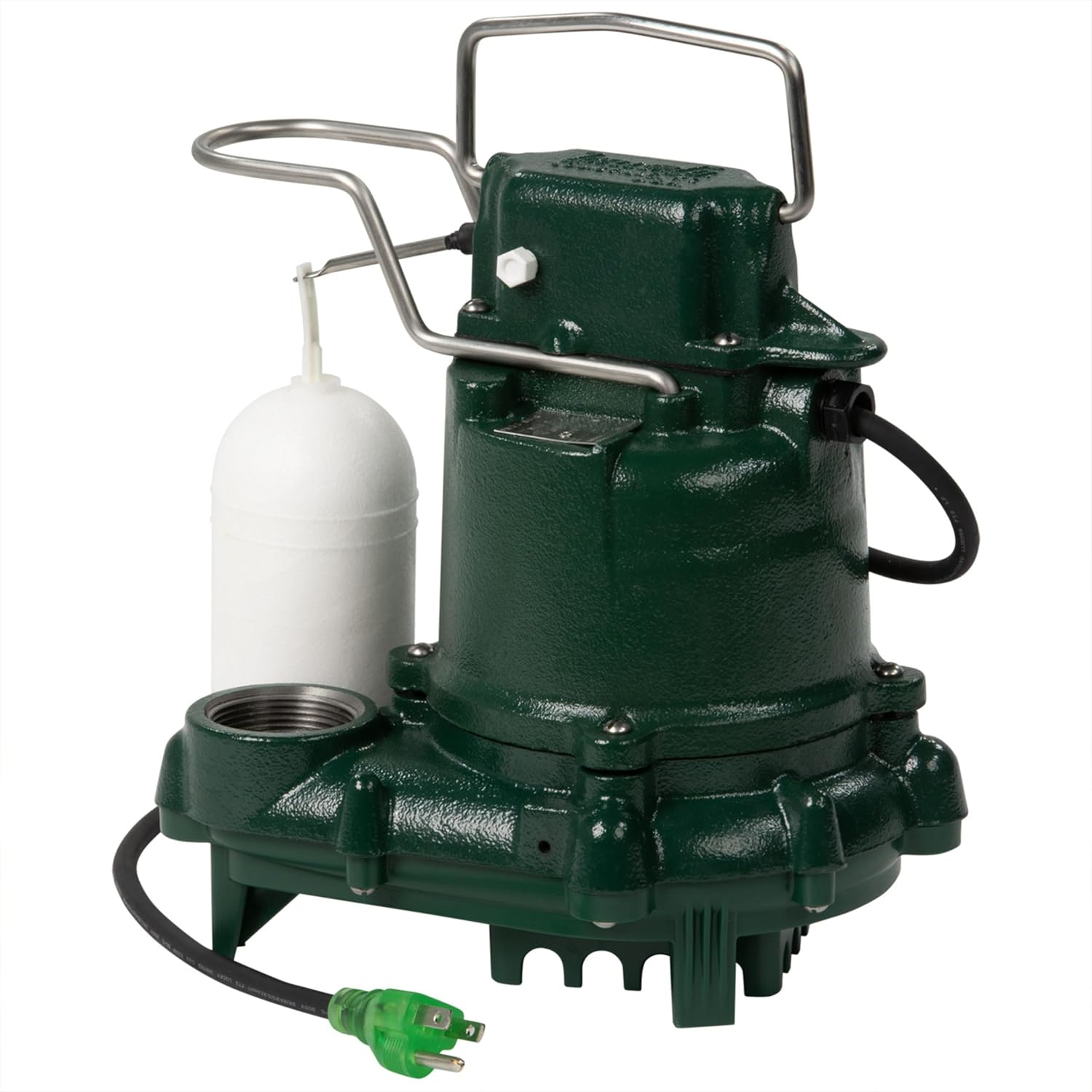

Image 1.1: The Zoeller Mighty Mate M53 Sump Pump, a submersible pump designed for efficient water removal.
2. Safety Information
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. This pump is designed for use with clear water only. Do not use for flammable or corrosive liquids.
- Electrical Safety: Ensure the power supply matches the pump's voltage (115V). Always disconnect power before servicing.
- Grounding: The pump must be properly grounded to prevent electric shock.
- Installation: Installation should comply with all local electrical and plumbing codes.
- Children: Keep children away from the pump and sump pit.
3. Key Components
The Zoeller Mighty Mate M53 features robust construction and reliable components:
- Cast Iron Housing: Provides durability and superior heat dissipation.
- Oil-Filled Motor: Enhances motor cooling and extends pump life.
- Automatic Float Switch: Activates the pump automatically when water levels rise.
- Vortex Impeller: Non-clogging design made from corrosion-resistant plastic, capable of handling 1/2 inch spherical solids.
- Stainless Steel Hardware: Resists rust and corrosion in harsh conditions.
- LED Power Plug: Provides visual confirmation of power supply.
Image 3.1: Diagram highlighting key features such as the cast iron housing, float switch, and LED plug.
4. Installation
Proper installation is crucial for the efficient operation of your sump pump. If you are unsure about any step, consult a qualified professional.
4.1 Pre-Installation Check
- Inspect the pump for any shipping damage.
- Ensure the sump pit is clean and free of debris.
- Verify that the electrical outlet is a grounded 115V, 60Hz, 3-prong receptacle.
4.2 Placement in Sump Pit
Place the pump on a solid, level surface at the bottom of the sump pit. Ensure the float switch can move freely without obstruction from the pit walls or other components.
Image 4.1: The M53 sump pump correctly positioned within a sump pit, demonstrating adequate clearance for the float.
4.3 Plumbing Connection
Connect a 1-1/2 inch NPT discharge pipe to the pump's outlet. It is recommended to install a check valve in the discharge line to prevent water from flowing back into the sump pit when the pump turns off.
Image 4.2: An example of a check valve, recommended for installation in the discharge line.
4.4 Electrical Connection
Plug the pump's 9-foot cord into a properly grounded 115V electrical outlet. The LED on the plug will illuminate to indicate power is supplied to the pump.
Image 4.3: The LED power plug, indicating active power to the sump pump.
4.5 Product Overview Video
For a visual guide on the product and its features, please watch the official overview video:
Video 4.1: Official product overview of the Zoeller M53 Sump Pump, provided by Ohio Supply.
5. Operation
The Zoeller Mighty Mate M53 Sump Pump operates automatically. When the water level in the sump pit rises and lifts the float switch, the pump will activate and begin to discharge water. Once the water level drops and the float switch returns to its lower position, the pump will turn off.
- LED Indicator: The LED on the power plug provides a quick visual check that the pump is receiving power.
- Quiet Operation: The pump is designed for quiet operation, minimizing disturbance.
6. Maintenance
Regular maintenance ensures the longevity and reliable performance of your sump pump. Always disconnect power before performing any maintenance.
- Monthly Check: Pour water into the sump pit to raise the water level and activate the pump. Ensure it turns on, pumps water out, and turns off correctly.
- Clean Sump Pit: Periodically remove any debris, dirt, or sediment from the sump pit that could interfere with the float switch or clog the pump intake.
- Inspect Float Switch: Ensure the float switch moves freely and is not obstructed.
- Check Discharge Line: Verify that the discharge pipe and check valve are free of obstructions.
7. Troubleshooting
If your pump is not operating as expected, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not run | No power to pump | Check power outlet, circuit breaker, and LED plug indicator. |
| Float switch obstructed | Clear any debris around the float switch. | |
| Pump runs continuously | Float switch stuck in 'on' position | Check for obstructions preventing the float from dropping. |
| Check valve faulty or missing | Install or replace check valve to prevent water recirculation. | |
| Pump runs but no water discharges | Discharge pipe clogged or frozen | Inspect and clear the discharge line. |
| Impeller clogged | Disconnect power and inspect impeller for debris. |
8. Specifications
Detailed technical specifications for the Zoeller Mighty Mate M53 Sump Pump:
Image 8.1: Visual representation of the product specifications.
| Feature | Detail |
|---|---|
| Model Number | M53 |
| Horsepower | 0.3 HP (3/10 HP) |
| Voltage | 115 Volts |
| Phase | 1 Ph |
| Amps | 9.7 A |
| Hertz | 60 Hz |
| Maximum Flow Rate | 43 Gallons Per Minute (2580 GPH) |
| Maximum Lifting Height | 19.25 Feet |
| Discharge Size | 1-1/2" NPT |
| Solids Handling | 1/2" (12 mm) spherical solids |
| Impeller Type | Vortex Impeller |
| Impeller Material | Engineered Plastic |
| Material | Cast Iron |
| Product Dimensions | 10"L x 8"W x 11"H |
| Item Weight | 22.6 pounds |
| Cord Length | 9' (2.7 m) |
| On/Off Points | 7-1/4" (18.4 cm) / 3" (7.6 cm) |
9. Warranty and Support
The Zoeller Mighty Mate M53 Sump Pump comes with a 3-Year Limited Warranty. This warranty covers defects in material and workmanship under normal use and service.
Image 9.1: Zoeller branding highlighting the 3-year limited warranty.
For warranty claims, technical assistance, or to purchase replacement parts, please contact Zoeller Customer Service or visit the official Zoeller website. Ensure you have your model number (M53) and date of purchase available.
