Philips Saeco CA6706/48 Maintenance Kit User Manual

Introduction

This manual provides essential instructions for using the Philips Saeco CA6706/48 Maintenance Kit. This kit is designed to help prevent breakdowns and ensure the smooth operation and optimal performance of your full automatic Saeco Espresso Machine by addressing common maintenance needs such as descaling, water filtration, and lubrication.

Package Contents

Image: The complete Saeco CA6706/48 Maintenance Kit, showing the packaging, two bottles of decalcifier, two water filters, and a small service kit containing lubricating grease and O-rings.

The Philips Saeco CA6706/48 Maintenance Kit includes the following items:

• 2 Special Philips Saeco Decalcifiers (250ml each)
• 2 Mavea INTENZA+ Water Filter Cartridges
• 1 Service Kit, which contains:
  • Lubricating Grease
  • O-ring Gaskets (various sizes)
  • Cleaning Brush

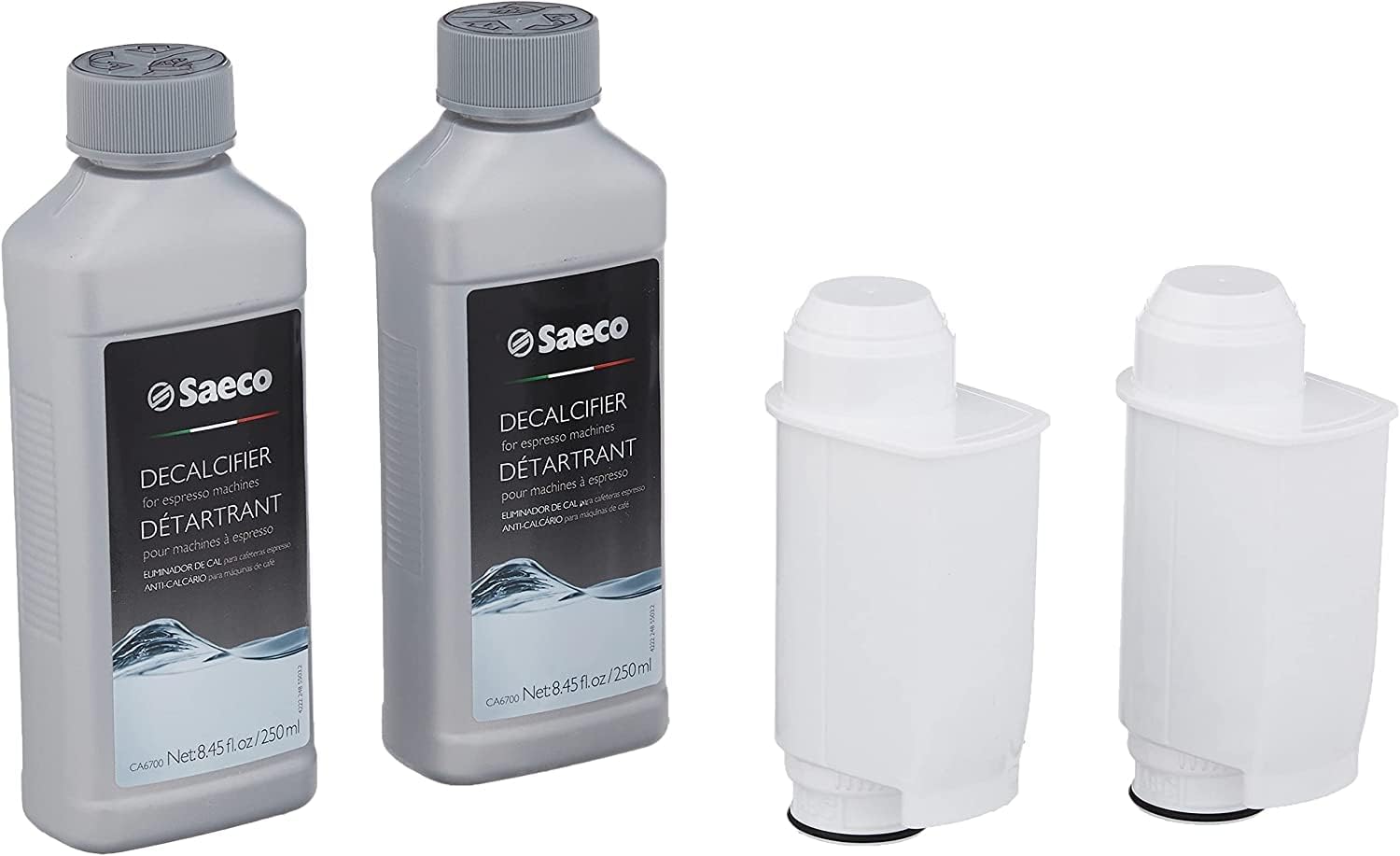

Image: Close-up view of the two Saeco decalcifier bottles and two Mavea INTENZA+ water filter cartridges included in the kit.

Setup and Installation

Installing the Water Filter

1. Remove the old water filter from your espresso machine's water tank, if present.
2. Take a new Mavea INTENZA+ water filter cartridge from the kit.
3. Submerge the new filter in a sink full of water and gently squeeze it to remove any trapped air. This primes the filter for use.
4. Locate the water-intake spot at the bottom of your machine's water tank.
5. Set the dial on the filter to the letter corresponding to your local water hardness (A for soft, B for medium, C for hard). Refer to your espresso machine's manual for guidance on water hardness settings.
6. Gently seat the filter into the water-intake spot until it is securely in place.
7. After installation, perform the "filter replacement" procedure in your Saeco machine's menu. This resets the filter counter and initiates a rinse cycle.

Operating and Maintenance

Regular maintenance is crucial for the longevity and performance of your Saeco espresso machine. This kit provides the necessary components for comprehensive care.

Descaling Procedure

Limescale buildup is a natural occurrence in espresso machines and can significantly impact performance and taste. The Saeco Decalcifier protects your appliance from this buildup.

1. Ensure your espresso machine is turned off and cooled down.
2. Empty the water tank and remove any water filter.
3. Pour one bottle of Saeco Decalcifier into the water tank.
4. Fill the water tank with fresh water up to the indicated descaling level (refer to your machine's manual).
5. Place a large container under the coffee spout and steam wand to collect the descaling solution.
6. Initiate the descaling program on your espresso machine. Follow the on-screen prompts or instructions in your machine's manual carefully. The process typically takes 35-40 minutes.
7. Once the descaling cycle is complete, thoroughly rinse the water tank and refill it with fresh water.
8. Run several rinse cycles (usually 2-3 full tanks of water) through the machine to ensure all decalcifier residue is removed.
9. Reinstall the water filter if applicable.

Frequency: Descaling frequency depends on your water hardness and usage. Generally, it is recommended every 2-3 months or as prompted by your machine.

Lubricating the Brew Group

The brew group is a critical moving part of your espresso machine and requires regular lubrication to function smoothly and prevent wear.

1. Turn off and unplug your espresso machine.
2. Remove the brew group from the machine. Refer to your machine's manual for specific instructions on brew group removal.
3. Clean the brew group thoroughly with warm water, ensuring no coffee residue remains. Allow it to air dry completely.
4. Apply a thin, even layer of the provided lubricating grease to the moving parts of the brew group, specifically the O-rings and the guides where the brew group slides. A cotton swab can be useful for precise application.
5. Reinsert the brew group into the machine until it clicks into place.

Frequency: Lubricate the brew group at least as frequently as recommended in your machine's manual, typically every 1-2 months or when you notice increased noise during operation.

Replacing O-ring Gaskets

The kit includes replacement O-ring gaskets. These seals can wear out over time, leading to leaks or pressure loss. Replace them as needed.

1. Identify the worn or damaged O-ring on your brew group or other components.
2. Carefully remove the old O-ring using a small, non-abrasive tool or your fingers.
3. Select the correct size replacement O-ring from the service kit.
4. Apply a small amount of lubricating grease to the new O-ring before installing it.
5. Gently stretch and roll the new O-ring into its groove, ensuring it is seated correctly and not twisted.

Frequency: Replace O-rings when you observe leaks, reduced pressure, or visible signs of wear and tear.

Troubleshooting

This maintenance kit is designed to prevent common issues. If you encounter problems with your espresso machine, consider the following:

• Poor Coffee Flow or Taste: This often indicates limescale buildup. Perform a descaling cycle as described in the "Descaling Procedure" section. Ensure your water filter is correctly installed and not expired.
• Machine Noisy During Operation: The brew group may require lubrication. Follow the "Lubricating the Brew Group" instructions.
• Leaks or Water Under Machine: Check the O-ring gaskets on the brew group and water tank connections. Replace any worn or damaged O-rings as per the "Replacing O-ring Gaskets" section.
• Filter Not Working: Ensure the filter is properly primed (air removed) and correctly seated in the water tank. Verify the machine's menu recognizes the filter replacement.

For issues not resolved by these steps, consult your specific Saeco espresso machine's user manual or contact Philips Saeco customer support.

Specifications

Important Safety Information

• Always unplug your espresso machine before performing any maintenance, especially when handling internal components like the brew group.
• Keep decalcifying solutions out of reach of children and pets. Avoid contact with skin and eyes. In case of contact, rinse thoroughly with water.
• Use only genuine Philips Saeco maintenance products to ensure compatibility and optimal performance.
• Dispose of used filters and decalcifying solution according to local regulations.
• Refer to your specific Saeco espresso machine's user manual for detailed safety warnings and instructions.
