Dualit 3-in-1 Espressivo Coffee Machine (Models DCM2X / 84440) Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your Dualit 3-in-1 Espressivo Coffee Machine. This appliance is designed to prepare espresso using ground coffee, ESE (Easy Serving Espresso) pods, and NX capsules.

Please read all instructions carefully before first use and retain this manual for future reference.

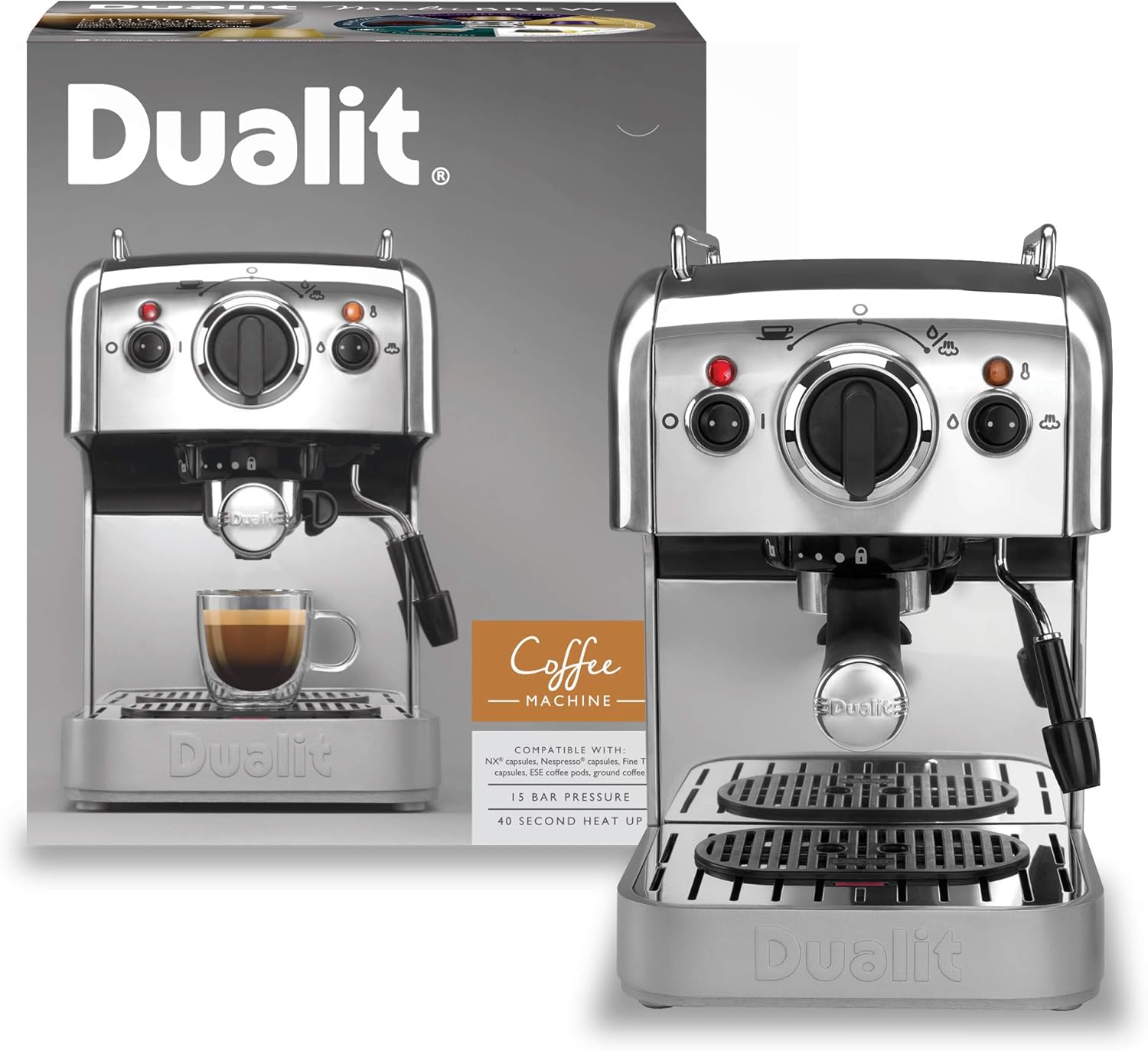

Image 1.1: The Dualit 3-in-1 Espressivo Coffee Machine, showcasing its polished finish and versatility with different coffee formats.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Scalding may occur if the filter holder is removed during the brewing cycle.
• Ensure the water reservoir is filled to the appropriate level before operation.

3. Product Overview and Components

Familiarize yourself with the various parts of your Dualit Espressivo Coffee Machine before operation.

Image 3.1: Overview of the Dualit Espressivo Coffee Machine and its included accessories, highlighting the versatility for different coffee types.

Main Components:

• Water Reservoir: Removable 1.5-liter tank for water.
• Control Dial: For selecting functions (Standby, Coffee, Steam).
• Power Button: To turn the machine on/off.
• Coffee Button: Initiates coffee brewing.
• Steam Button: Activates steam function for frothing milk.
• Portafilter: Handle for holding filter baskets.
• Filter Baskets:
  • Single Shot Ground Coffee Filter
  • Double Shot Ground Coffee Filter
  • ESE Pod Filter
  • NX Capsule Filter
• Steam Wand: For frothing milk.
• Drip Tray: Collects excess liquid.
• Cup Warming Tray: Located on top of the machine.
• Measuring Scoop/Tamper: For ground coffee.
• Cleaning Tool: For clearing blockages.

4. Setup and First Use

4.1 Unpacking

Carefully remove all packaging materials. Ensure all components listed in Section 3 are present. Dispose of packaging responsibly.

4.2 Initial Cleaning

• Wash the water reservoir, portafilter, filter baskets, drip tray, and measuring scoop in warm, soapy water. Rinse thoroughly and dry.
• Wipe the exterior of the machine with a damp cloth. Do not immerse the main unit in water.

4.3 Filling the Water Reservoir

• Remove the water reservoir from the back of the machine.
• Fill with fresh, cold filtered water up to the MAX mark.
• Replace the reservoir securely.

4.4 Priming the Machine (First Use)

Before making coffee, the machine needs to be primed to fill the internal system with water.

• Ensure the water reservoir is filled.
• Place a large cup or container under the portafilter spout and the steam wand.
• Plug the machine into a grounded power outlet. Press the Power button. The indicator light will illuminate.
• Turn the Control Dial to the "Coffee" position. Press the Coffee button. Water will start to flow from the portafilter. Let approximately 200ml of water run through.
• Turn the Control Dial to the "Steam" position. Open the steam valve by turning the steam knob. Let steam and hot water flow for about 30 seconds. Close the steam valve.
• Turn the Control Dial back to the "Standby" position. The machine is now primed and ready for use.

5. Operating Instructions

Your Dualit Espressivo offers three ways to make espresso: using ground coffee, ESE pods, or NX capsules.

Image 5.1: The three types of coffee preparation supported by the Dualit Espressivo: ground coffee, ESE pods, and NX capsules.

5.1 Making Espresso with Ground Coffee

• Ensure the machine is powered on and the "Coffee Ready" indicator light is solid.
• Insert the appropriate ground coffee filter basket (single or double shot) into the portafilter.
• Add finely ground espresso coffee to the filter basket. For a single shot, use one level scoop (approx. 7g); for a double shot, use two level scoops (approx. 14g).
• Lightly tamp the coffee with the flat end of the measuring scoop. Ensure the coffee is level and not over-tamped.
• Wipe any excess coffee from the rim of the portafilter.
• Attach the portafilter to the group head by aligning it and twisting firmly to the right until secure.
• Place one or two espresso cups on the drip tray beneath the portafilter spouts.
• Turn the Control Dial to the "Coffee" position. Press the Coffee button. Espresso will begin to flow.
• Once the desired volume of espresso is reached (typically 25-30ml per shot), press the Coffee button again to stop the flow.
• Turn the Control Dial back to the "Standby" position.
• Carefully remove the portafilter by twisting it to the left. Dispose of the used coffee grounds.

5.2 Making Espresso with ESE Pods

• Ensure the machine is powered on and the "Coffee Ready" indicator light is solid.
• Insert the ESE pod filter basket into the portafilter.
• Place one ESE pod centrally into the filter basket. Do not use two pods.
• Attach the portafilter to the group head by aligning it and twisting firmly to the right until secure.
• Place an espresso cup on the drip tray beneath the portafilter spout.
• Turn the Control Dial to the "Coffee" position. Press the Coffee button. Espresso will begin to flow.
• Once the desired volume of espresso is reached, press the Coffee button again to stop the flow.
• Turn the Control Dial back to the "Standby" position.
• Carefully remove the portafilter. Dispose of the used ESE pod.

5.3 Making Espresso with NX Capsules

• Ensure the machine is powered on and the "Coffee Ready" indicator light is solid.
• Insert the NX capsule filter basket into the portafilter.
• Place one NX capsule into the filter basket.
• Attach the portafilter to the group head by aligning it and twisting firmly to the right until secure.
• Place an espresso cup on the drip tray beneath the portafilter spout.
• Turn the Control Dial to the "Coffee" position. Press the Coffee button. Espresso will begin to flow.
• Once the desired volume of espresso is reached, press the Coffee button again to stop the flow.
• Turn the Control Dial back to the "Standby" position.
• Carefully remove the portafilter. Dispose of the used NX capsule.

5.4 Frothing Milk

Image 5.2: Demonstrating the milk frothing process using the integrated steam wand.

• Fill a stainless steel frothing jug with cold milk (dairy or non-dairy) to just below the spout.
• Ensure the machine is powered on. Turn the Control Dial to the "Steam" position. The steam indicator light will flash while heating, then become solid when ready.
• Position the steam wand just below the surface of the milk in the jug.
• Slowly open the steam valve by turning the steam knob. Steam will be released.
• Move the jug slowly up and down, keeping the steam wand just below the surface to create foam, then deeper to heat the milk.
• Once the milk reaches the desired temperature and consistency (approximately 60-70°C), close the steam valve and turn the Control Dial back to "Standby".
• Immediately wipe the steam wand with a damp cloth to prevent milk residue from drying. Purge a small amount of steam to clear any internal blockages.

6. Cleaning and Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your coffee machine.

6.1 Daily Cleaning

• Drip Tray: Empty and rinse the drip tray after each use or when the indicator floats up.
• Portafilter and Filter Baskets: Remove and rinse thoroughly after each use. Use the cleaning tool to clear any coffee residue from the filter holes.
• Steam Wand: Wipe immediately after frothing milk. Purge steam to clear internal residue.
• Exterior: Wipe the machine's exterior with a soft, damp cloth.

6.2 Descaling

Descaling is essential to remove mineral buildup and maintain machine performance. The frequency depends on water hardness and usage, but generally every 2-3 months.

• Use a descaling solution specifically designed for coffee machines. Follow the manufacturer's instructions for the descaling solution.
• Fill the water reservoir with the descaling solution mixed with water according to instructions.
• Place a large container under the portafilter and steam wand.
• Run half of the solution through the coffee spout by turning the Control Dial to "Coffee" and pressing the Coffee button. Stop the flow.
• Run the remaining half of the solution through the steam wand by turning the Control Dial to "Steam" and opening the steam valve. Close the valve.
• Turn off the machine and let it sit for 15-20 minutes.
• Rinse the water reservoir and fill it with fresh water.
• Repeat the process of running water through both the coffee spout and steam wand to thoroughly rinse the machine. Repeat rinsing with fresh water at least twice.

7. Troubleshooting

Refer to this section for common issues and their solutions.

8. Specifications

Technical details for the Dualit 3-in-1 Espressivo Coffee Machine.

Image 8.1: Dimensional overview of the Dualit Espressivo Coffee Machine.

9. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please refer to the official Dualit website or contact Dualit customer service directly. Keep your proof of purchase for warranty claims.

Website: www.dualit.com

Contact details may vary by region. Please check the Dualit website for local support information.
