Introduction
This manual provides instructions for the installation, operation, and maintenance of your RAM Mounts Tab-Tite Tablet Holder, model RAM-HOL-TAB3U. This holder is designed to securely accommodate various tablets, including Apple iPad generations 1-4, and other compatible devices, utilizing a spring-loaded mechanism for easy insertion and removal.
Product Overview
The RAM Tab-Tite holder features a spring-loaded, quick-release design that ensures a secure fit while allowing easy access to your mounted tablet. Its custom end cups are engineered to optimize tablet functionality, providing access to all buttons, ports, and features.
Key Features:
- Spring-loaded mechanism for secure tablet retention and quick release.
- Compatible with B and C size RAM round ball bases for versatile mounting options.
- Constructed from high-strength composites for durability.
- Designed with custom end cups for full access to tablet functions.
Compatible Devices:
- Apple iPad (1st, 2nd, 3rd, and 4th Gen)
- ASUS MeMO Pad FHD 10, Transformer Pad
- Dell Venue 10 7000, Venue 11 Pro 7000
- HP ElitePad 900, ElitePad 900 G1, Pro 610
- Lenovo S6000, Tab A10, ThinkPad 10, Yoga Tablet 10, 10 HD+, 2 (10 inch)
- And other tablets within the specified dimensions.
Image: The RAM Mounts Tab-Tite Tablet Holder securely holding an Apple iPad.Package Contents
Your RAM Mounts Tab-Tite Tablet Holder package typically includes:
- 1x RAM Tab-Tite Tablet Holder (RAM-HOL-TAB3U)
- 4x Nuts and Bolts for attachment to RAM components with the AMPS hole pattern.

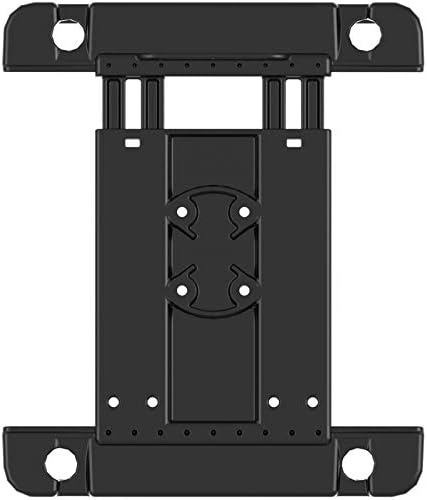

Image: Rear view of the RAM Tab-Tite holder, illustrating the universal AMPS hole pattern for attachment.Setup and Installation
Attaching the Holder to a RAM Mount System:
- Identify the universal AMPS hole pattern on your desired RAM mounting component (e.g., a RAM B or C size round ball base).
- Align the four pre-drilled holes on the back of the Tab-Tite holder with the AMPS pattern on your RAM component.
- Use the provided four nuts and bolts to securely fasten the holder to the RAM component. Ensure all connections are tightened to prevent movement during use.
- Connect the assembled holder to a compatible RAM double socket arm and ball base system. The ball and socket technology allows for extensive adjustability.
Image: An angled view of the RAM Tab-Tite holder, ready for integration with a RAM mounting system.Operation
Inserting Your Tablet:
- Gently pull back the spring-loaded arm of the Tab-Tite holder.
- Carefully position your tablet into the holder, ensuring it sits flush against the fixed end cups.
- Release the spring-loaded arm, allowing it to securely grip your tablet. Verify that the tablet is firmly held in place and cannot easily shift.
Removing Your Tablet:
- While holding the tablet, gently pull back the spring-loaded arm.
- Carefully lift the tablet out of the holder.
Adjusting the Viewing Angle:
If your Tab-Tite holder is connected to a RAM ball and socket system, loosen the knob on the double socket arm to adjust the tablet's position and viewing angle. Tighten the knob firmly once the desired angle is achieved.
Image: Front view of the RAM Tab-Tite holder with an iPad, demonstrating secure placement.Maintenance
To ensure the longevity and optimal performance of your RAM Mounts Tab-Tite Tablet Holder:
- Regularly inspect the holder for any signs of wear or damage, especially the spring mechanism and end cups.
- Keep the holder clean by wiping it with a damp cloth. Avoid harsh chemicals or abrasive cleaners.
- Periodically check that all nuts and bolts securing the holder to your RAM mounting system are tight.
- For use in off-road environments or open cockpits, it is recommended to use a tether (not included) to provide additional security for your device.
Troubleshooting
Tablet Does Not Fit Securely:
- Ensure your tablet is within the specified dimensions for the RAM-HOL-TAB3U holder. Refer to the "Compatible Devices" section.
- Verify that the spring-loaded mechanism is fully engaging and holding the tablet firmly.
- If using a tablet case, confirm that the case does not interfere with the holder's grip. Some thicker cases may not be compatible.
Holder Feels Loose:
- Check all connection points, including the nuts and bolts attaching the holder to the RAM component and the double socket arm's knob. Tighten as necessary.
- Ensure the RAM ball bases are properly secured to their mounting surface.
Specifications
| Feature | Detail |
|---|---|
| Brand | RAM MOUNTS |
| Model Number | RAM-HOL-TAB3U |
| Item Weight | 7.8 ounces |
| Product Dimensions | 6 x 2 x 12 inches |
| Material | High-strength Composites |
| Compatible RAM Ball Sizes | B and C size |
| Mounting Pattern | Universal AMPS |
| Color | Black |
Warranty and Support
Warranty Information:
The RAM Mounts Tab-Tite Tablet Holder (RAM-HOL-TAB3U) is backed by a lifetime warranty, ensuring quality and durability.
Customer Support:
For technical assistance, warranty claims, or product inquiries, please contact RAM MOUNTS customer support. Visit the official RAM MOUNTS website for contact details.
