Armor All VOM205P 0901 Portable Vacuum Cleaner

1. Introduction

1.1 Product Overview

The Armor All VOM205P 0901 Portable Wet/Dry Utility Vacuum Cleaner is designed for versatile cleaning tasks. Featuring a powerful 2 Peak HP motor, it is suitable for both wet and dry messes. Its compact and wall-mountable design allows for easy storage. The unit also includes a blower function for clearing debris or inflating items.

Image: The Armor All VOM205P 0901 Portable Wet/Dry Vacuum Cleaner, showcasing its compact design and integrated hose and accessory storage.

1.2 What's Included

Your Armor All VOM205P 0901 Portable Wet/Dry Vacuum Cleaner package includes the following components:

• 1 x VOM205P 0901 Portable Vacuum Cleaner Unit
• 1 x 10 Foot Cord
• 1 x 4 Ft. X 1-1/4 In. Hose
• 1 x 2-in-1 Utility Nozzle W/ Brush
• 1 x 6-Piece Detail Kit
• 1 x Crevice Tool
• 1 x Deluxe Car Nozzle
• 1 x Reusable Cloth Filter
• 1 x Reusable Foam Sleeve
• 1 x Storage Pouch

Image: All included accessories for the Armor All VOM205P 0901 Portable Wet/Dry Vacuum Cleaner, including various nozzles, brushes, filters, and storage pouch.

2. Safety Information

Please read and understand all safety instructions before operating the vacuum cleaner. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always disconnect the power cord from the electrical outlet before performing any maintenance or cleaning.
• Do not use the vacuum cleaner near flammable liquids, gases, or explosive dusts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not immerse the vacuum cleaner in water or other liquids.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. Setup

3.1 Assembly

1. Unpack all components from the packaging.
2. Attach the hose to the intake port on the front of the vacuum unit by twisting it clockwise until secure.
3. Select the desired nozzle or accessory and firmly attach it to the end of the hose.

3.2 Filter Installation

The vacuum cleaner uses two types of filters: a reusable cloth filter for dry pickup and a foam sleeve filter for wet pickup.

• For Dry Pickup: Ensure the reusable cloth filter is securely installed over the filter cage inside the tank. This filter is essential for capturing fine dust and debris.
• For Wet Pickup: Remove the reusable cloth filter. Install the reusable foam sleeve filter over the filter cage. This filter protects the motor during wet vacuuming.

Always ensure the correct filter is installed for the type of debris you are collecting to prevent damage to the motor and ensure optimal performance.

4. Operating Instructions

4.1 Dry Pickup

1. Ensure the reusable cloth filter is properly installed.
2. Connect the power cord to a suitable electrical outlet.
3. Turn the vacuum ON using the large dust-sealed switch.
4. Begin vacuuming dry debris. The crevice tool is ideal for tight spaces, and the 2-in-1 utility nozzle with brush is effective for general surfaces and upholstery.

Image: A person using the Armor All portable vacuum cleaner to clean the interior of a car, demonstrating its effectiveness for automotive detailing.

4.2 Wet Pickup

1. Remove the reusable cloth filter and install the reusable foam sleeve filter.
2. Connect the power cord to a suitable electrical outlet.
3. Turn the vacuum ON.
4. Begin vacuuming liquids. The auto shut-off feature will activate when the tank is full to prevent overflow.
5. After wet pickup, empty the tank and clean the foam filter thoroughly.

4.3 Blower Function

The vacuum cleaner can be easily converted into a blower for clearing debris from surfaces or inflating items.

1. Disconnect the hose from the intake port.
2. Locate the blower port on the unit (typically on the back or side).
3. Firmly insert the hose into the blower port.
4. Turn the vacuum ON to activate the blower function.

5. Maintenance

5.1 Cleaning the Unit

• After each use, especially after wet pickup, empty the tank and rinse it with water.
• Wipe down the exterior of the unit with a damp cloth. Do not use harsh chemicals or abrasive cleaners.

5.2 Filter Care

• Reusable Cloth Filter: For dry pickup, tap off excess dust. If heavily soiled, wash with mild soap and water, then allow to air dry completely before reinstallation.
• Reusable Foam Sleeve Filter: For wet pickup, rinse thoroughly with water after each use. Squeeze out excess water and allow to air dry completely before storage or next use.

Note: Always ensure filters are completely dry before using the vacuum for dry pickup to prevent motor damage.

5.3 Storage

The Armor All VOM205P 0901 is designed for convenient storage, including a wall-mountable option.

• Wrap the 10-foot power cord around the integrated cord wrap for neat storage.
• Utilize the on-board accessory and hose storage to keep all attachments organized with the unit.
• For long-term storage, consider using the wall mount bracket (included) to hang the vacuum, saving floor space.

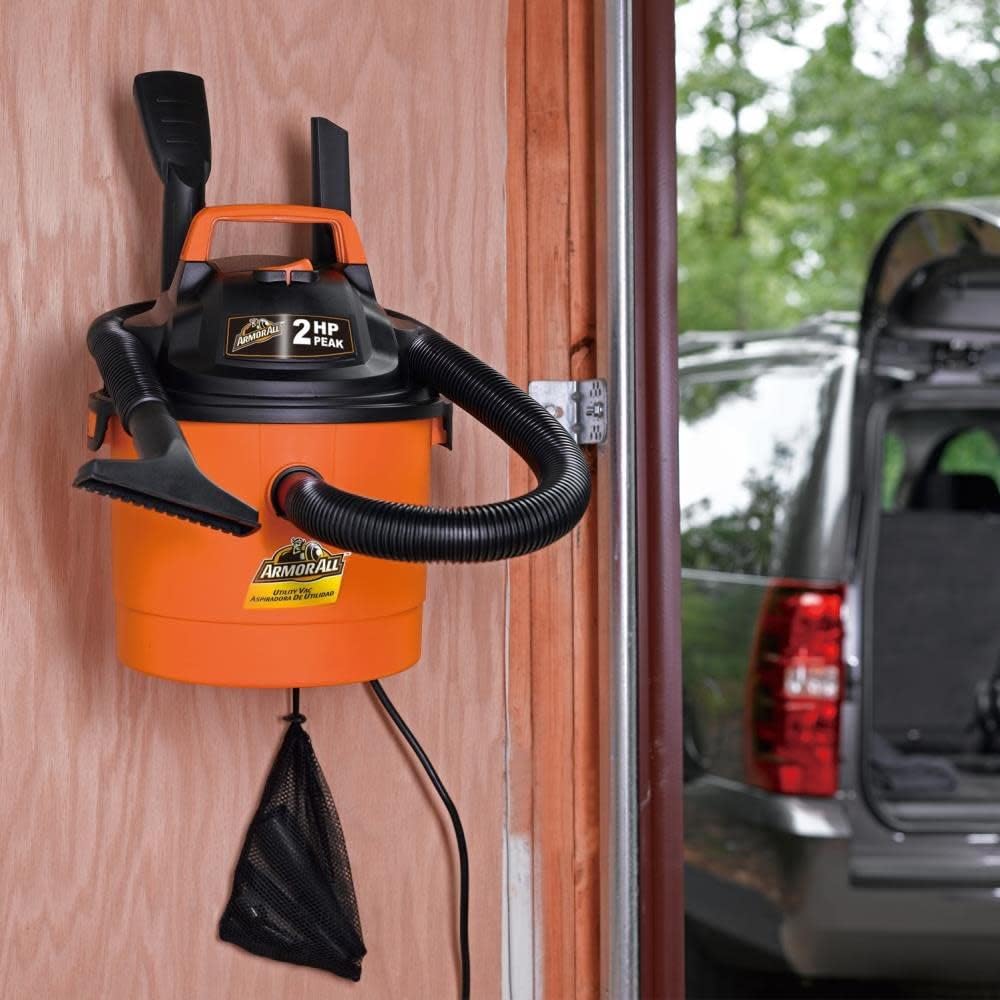

Image: The Armor All VOM205P 0901 Portable Wet/Dry Vacuum Cleaner mounted on a wall, demonstrating its space-saving storage capability.

6. Troubleshooting

7. Specifications

8. Warranty and Support

Armor All products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official Armor All website. For technical support or assistance with your product, please contact Armor All customer service.

You can find more information and support resources on the Armor All Store.
