Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the White-Rodgers 36H32-423 24V Redundant Gas Valve. This combination multi-function control is designed for use with intermittent ignition systems, including Direct Ignition, Proven Pilot, and Hot Surface Ignition (HSI).
Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury, or loss of life. Read and understand these instructions completely before proceeding. Installation and service must be performed by a qualified installer, service agency, or gas supplier.
- Gas Safety: Ensure all gas connections are tight and leak-free. Use appropriate leak detection methods.
- Electrical Safety: Disconnect all electrical power to the appliance before installing or servicing this valve. Ensure proper grounding.
- Ventilation: Ensure adequate ventilation in the work area.
- Qualified Personnel: This device operates with natural gas or LP gas and 24V electrical power. Only qualified technicians should handle installation and service.
Product Overview
The White-Rodgers 36H32-423 is a versatile combination gas control valve featuring a redundant design for enhanced safety and reliability. It is suitable for a wide range of applications in HVAC systems.
Key Features:
- Adjustable regulator for precise control.
- Quiet operation.
- Redundant design for safety.
- Inlet/outlet screens to prevent debris entry.
- Tamper-resistant screws.
- Fast opening, one-stage operation.
- Compatible with Natural or LP Gas.

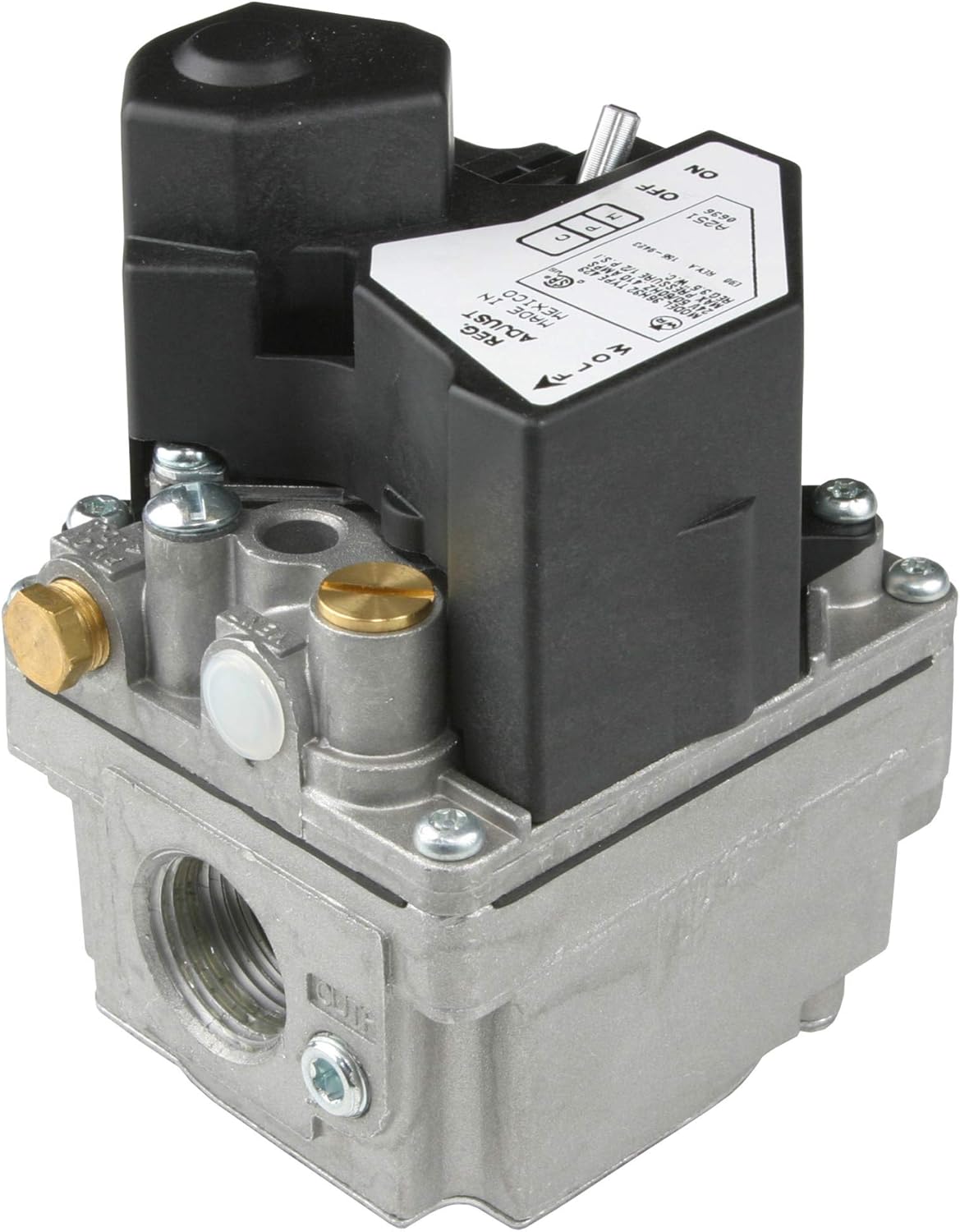

Figure 1: A close-up view of the White-Rodgers 36H32-423 gas valve, showing its metallic body, black control unit, and various connection points. The label on the control unit indicates 'OFF' and 'ON' positions, 'REG. ADJUST', and model specifications.
Specifications
| Specification | Detail |
|---|---|
| Model Number | 36H32-423 (W36H32423) |
| Brand | White-Rodgers |
| Material | Metal |
| Exterior Finish | Stainless Steel |
| Voltage | 24V |
| Frequency | 50/60 Hz |
| Max Pressure | 1/2 PSI |
| Regulator Setting | 3.5" W.C. (Water Column) |
| Amperage | 410 mA |
| Inlet/Outlet Connection Size | 3/4 inch x 3/4 inch |
| Outlet Connection Type | NPT |
| Number of Ports | 2 |
| Specification Met | UL |
| Item Weight | 8 ounces |
| Package Dimensions | 6 x 4.4 x 3.5 inches |
| UPC | 786710525933 |
Installation
Installation of this gas valve must be performed by a qualified and licensed HVAC technician or gas professional. Adherence to all local codes and regulations is mandatory.
General Steps:
- Preparation: Turn off the main gas supply and electrical power to the appliance.
- Removal of Old Valve: Carefully disconnect and remove the existing gas valve, if applicable.
- Mounting: Mount the new White-Rodgers 36H32-423 valve in the correct orientation, ensuring secure attachment.
- Gas Connections: Connect the gas lines to the 3/4 inch NPT inlet and outlet ports. Use appropriate pipe sealant on all threaded connections.
- Electrical Connections: Connect the 24V electrical wiring according to the appliance manufacturer's instructions and the valve's wiring diagram.
- Leak Test: After all connections are made, turn on the main gas supply and perform a thorough leak test using a non-corrosive leak detection solution.
- System Check: Restore electrical power and test the appliance for proper operation.
Operation
The White-Rodgers 36H32-423 gas valve features a simple ON/OFF control and an adjustable regulator.
Gas Flow Control:
- ON Position: Allows gas to flow through the valve when called for by the appliance's control system.
- OFF Position: Shuts off the gas supply to the appliance. This position should be used for servicing or extended periods of non-use.
Regulator Adjustment:
The gas pressure regulator is factory set to 3.5" W.C. (Water Column). If adjustment is necessary, it should only be performed by a qualified technician using a manometer to measure outlet pressure. The 'REG. ADJUST' screw on the valve allows for fine-tuning of the gas pressure.
Maintenance
The White-Rodgers 36H32-423 gas valve is designed for reliable operation with minimal maintenance. However, periodic checks by a qualified technician are recommended as part of routine appliance servicing.
- Annual Inspection: Have a qualified technician inspect the valve and gas connections annually for signs of wear, leaks, or corrosion.
- Cleaning: Ensure the inlet/outlet screens remain clear of debris. Do not attempt to clean internal components.
- Operational Check: Verify that the ON/OFF switch operates smoothly and that the valve opens and closes correctly.
Troubleshooting
If you experience issues with your gas appliance, consult a qualified technician. Do not attempt to repair the gas valve yourself.
Common Issues (Technician Only):
- No Gas Flow: Check if the valve is in the 'ON' position. Verify gas supply to the appliance. Inspect electrical connections and control signals.
- Pilot Light Issues: If the pilot light fails to ignite or stay lit, the valve's pilot section or associated controls may require inspection.
- Irregular Burner Operation: Fluctuations in gas pressure or flow can indicate a regulator issue or obstruction within the valve.
Warranty Information
For specific warranty details regarding the White-Rodgers 36H32-423 gas valve, please refer to the documentation provided with your purchase or contact White-Rodgers directly. Warranty terms typically cover manufacturing defects under normal use and service.
Support
If you require technical assistance, service, or have questions regarding the White-Rodgers 36H32-423 gas valve, please contact a qualified HVAC professional or the White-Rodgers customer support team. Always provide the model number (36H32-423) when seeking support.
