1. Introduction and Product Overview

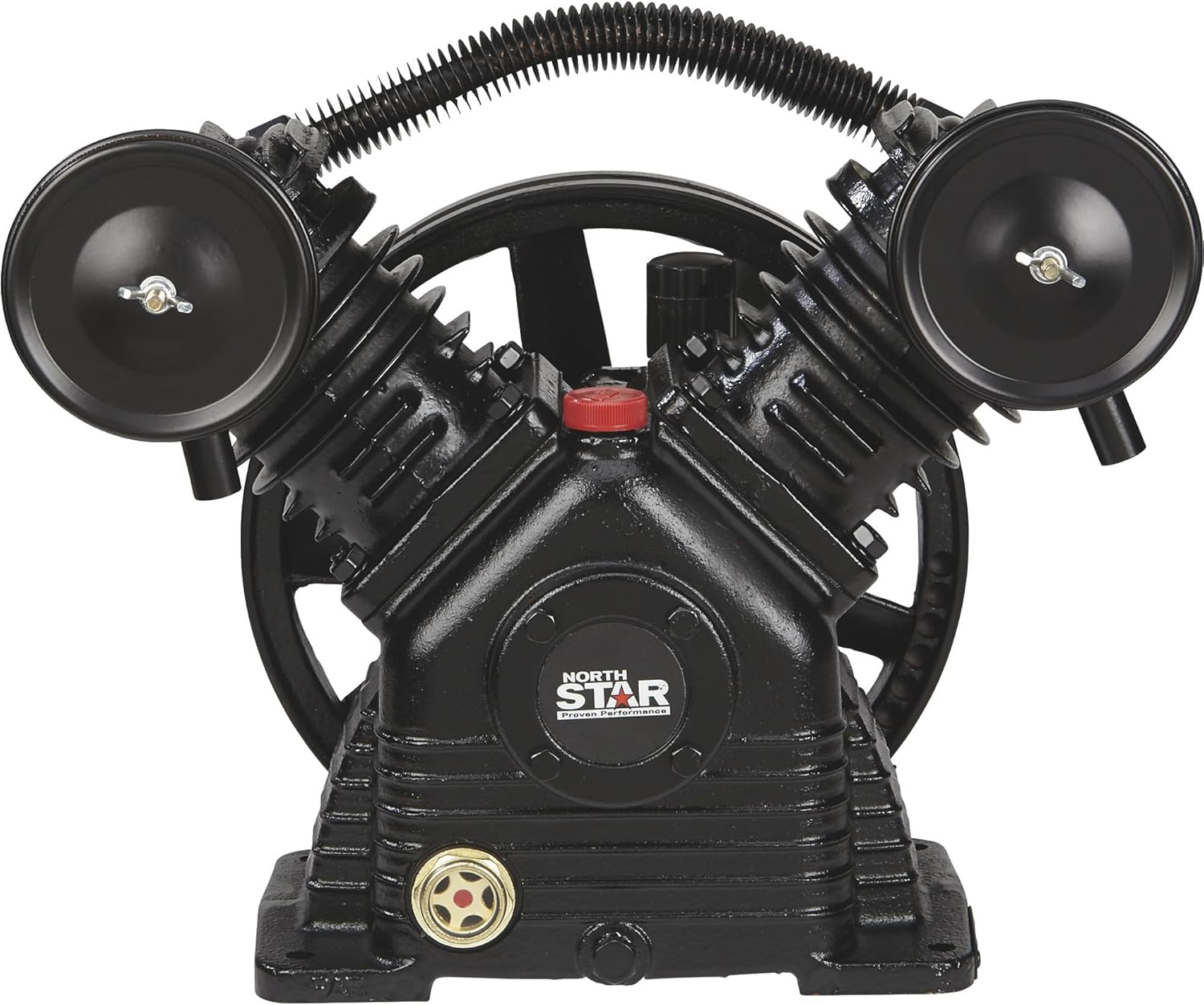

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your NorthStar Air Compressor Pump, Model 4592900. This 1-stage, 2-cylinder pump is designed for reliable performance in various applications.
Key Features:
- Full cast iron pump construction for extended service life.
- V-style cylinder design for superior cooling efficiency.
- Pump head made of FC35 Grade cast iron for durability.
- Floating-type Swedish steel valves for prolonged valve life.
- Operates at a slower RPM, contributing to cooler running temperatures and increased longevity.
- Low Vibration Technology (LVT) for smooth operation.
- One-piece cast iron crankcase with bearings on both ends of the crankshaft for superior support.
- Produces 13.7 CFM at 90 PSI.
- Maximum pressure of 130 PSI.
- 100% duty cycle.
- 10.5-inch diameter oversized flywheel for cooler operation.
- Heavy cast iron flywheel provides extra momentum.
- Step-type piston rings ensure optimal compression.
- Sight glass for convenient oil level monitoring.
- Replaceable crank journals and wrist pin journal/needle bearings.
- Two-piece connecting rods for enhanced serviceability.
2. Safety Information
Read and understand all safety warnings and instructions before operating this air compressor pump. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
General Safety Warnings:
- Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents.
- Electrical Safety: Ensure the power source (motor) is properly grounded and rated for the pump's requirements (e.g., 100 Volts). Do not expose the pump to rain or wet conditions.
- Personal Safety: Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and gloves. Do not overreach; maintain proper footing and balance at all times.
- Product Use and Care: Do not force the pump. Use the correct pump for your application. Disconnect the power source before making any adjustments, changing accessories, or storing the pump.
- Maintenance: Maintain the pump according to the instructions in this manual. Keep all guards and safety features in place and in working order.
- Hot Surfaces: The pump and associated components can become very hot during operation. Avoid contact with hot surfaces to prevent burns.
- Pressurized Air: Never direct compressed air at people or animals. Always wear eye protection when using compressed air.
3. Setup and Installation
Proper setup is crucial for the performance and longevity of your air compressor pump. This pump requires a separate motor (4 HP electric or 5.5 HP gas) and a single A-groove belt for operation.
Installation Steps:
- Mounting: Securely mount the air compressor pump to a stable, level surface or air tank. Ensure adequate ventilation around the pump.
- Motor Connection: Connect the appropriate 4 HP electric or 5.5 HP gas motor to the pump. Ensure the motor's horsepower rating meets or exceeds the pump's requirements.
- Belt Installation: Install a single A-groove belt between the motor pulley and the pump's flywheel. Ensure proper belt tension; it should be tight enough to prevent slippage but not so tight as to cause excessive strain on bearings.
- Air Intake: Ensure the air intake filters are clean and securely attached.
- Oil Fill: Before first use, fill the crankcase with the recommended compressor oil to the proper level, indicated by the sight glass. Refer to the Maintenance section for oil specifications.
- Electrical Connection (if applicable): If using an electric motor, ensure it is correctly wired to a 100 Volt power source and properly grounded according to local electrical codes.
- Pressure Line Connection: Connect the 5/8-inch compression outlet to your air tank or system.
4. Operating Instructions
Once properly installed and filled with oil, your NorthStar Air Compressor Pump is ready for operation.
Starting the Pump:
- Ensure all connections are secure and the oil level is correct.
- Turn on the power to the motor. The pump will begin to build air pressure.
- Monitor the pressure gauge (if connected to a tank with one) to ensure it reaches the desired operating pressure, up to a maximum of 130 PSI.
During Operation:
- The pump is designed for a 100% duty cycle, meaning it can run continuously.
- The V-style cylinder orientation and oversized flywheel contribute to cooler operation, but always ensure adequate airflow around the pump.
- Listen for any unusual noises or vibrations. The Low Vibration Technology (LVT) ensures smooth operation; excessive vibration may indicate an issue.
Stopping the Pump:
- Turn off the power to the motor.
- If connected to an air tank, drain any accumulated moisture from the tank after each use.
5. Maintenance
Regular maintenance is essential to ensure the long life and optimal performance of your NorthStar Air Compressor Pump.
Daily/Before Each Use:
- Check Oil Level: Verify the oil level using the sight glass. Add recommended compressor oil if necessary.
- Inspect Air Filters: Ensure air intake filters are clean and free of debris. Clean or replace if clogged.
- Check for Leaks: Inspect all air lines and connections for leaks.
Monthly/Every 50 Hours of Operation:
- Change Oil: Replace the compressor oil with the recommended type.
- Inspect Belt: Check the A-groove belt for wear, cracks, or proper tension. Adjust or replace as needed.
- Clean Cooling Fins: Ensure the cylinder cooling fins are free of dust and debris to maintain efficient cooling.
Annual/Every 200 Hours of Operation:
- Inspect Valves: Check the floating-type Swedish steel valves for wear or damage. Replace if necessary.
- Inspect Piston Rings: Verify the condition of the step-type piston rings for optimal compression.
- Check Bearings and Journals: Inspect crank journals, wrist pin journal, and needle bearings for wear. These components are replaceable for extended pump life.
- Connecting Rods: The two-piece connecting rods can be rebuilt for superior serviceability; inspect their condition.
6. Troubleshooting
This section addresses common issues you might encounter with your air compressor pump. For problems not listed here, contact customer support.
Common Issues and Solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start or runs slowly. | Insufficient motor power; loose or worn belt; low voltage (for electric motor). | Ensure motor meets specifications; check and adjust belt tension or replace; verify power supply. |
| Pump builds pressure slowly or not at all. | Clogged air filters; worn piston rings; faulty valves; air leaks in system. | Clean or replace air filters; inspect and replace piston rings; inspect and replace valves; check all connections for leaks. |
| Excessive noise or vibration. | Loose mounting bolts; worn bearings; unbalanced flywheel; worn belt. | Tighten mounting bolts; inspect and replace bearings; check flywheel for damage; inspect and replace belt. |
| Oil leakage. | Loose drain plug; damaged seals or gaskets; overfilled oil. | Check and tighten drain plug; inspect and replace seals/gaskets; ensure oil level is correct. |
| Overheating. | Insufficient ventilation; clogged cooling fins; low oil level. | Ensure adequate airflow; clean cooling fins; check and correct oil level. |
7. Specifications
Detailed technical specifications for the NorthStar Air Compressor Pump, Model 4592900.
| Specification | Value |
|---|---|
| Brand | NorthStar |
| Model Name | 4592900 |
| Part Number | 2762973 |
| Pump Type | 1-Stage, 2-Cylinder |
| Air Flow Capacity | 13.7 Cubic Feet Per Minute (CFM) at 90 PSI |
| Maximum Pressure | 130 PSI |
| Duty Cycle | 100% |
| Required Electric Motor Horsepower | 4 HP |
| Required Gas Motor Horsepower | 5.5 HP |
| Voltage (for electric motor) | 100 Volts |
| Flywheel Diameter | 10.5 inches |
| Belt Type | Single A-groove |
| Compression Outlet | 5/8 inch |
| Item Weight | 53.2 Pounds |
| Product Dimensions | 16"L x 16"W x 16"H |
| Color | Black |
| Special Feature | Low Vibration Technology (LVT) |
| Recommended Uses | Air Brushing, Drilling, Nailing, Spraying |
8. Warranty and Support
Warranty Information:
This NorthStar Air Compressor Pump is covered by a warranty of 12 months for parts and 12 months for labor from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use and service.
The warranty does not cover damage resulting from misuse, abuse, accident, neglect, unauthorized repairs or alterations, or failure to perform recommended maintenance.
Customer Support:
For technical assistance, parts, or warranty inquiries, please contact NorthStar customer support. Refer to the contact information provided with your product packaging or visit the official NorthStar website for current support details.
