1. Introduction
Thank you for purchasing the Ibiza Sound DISCO8B Speaker System. This manual provides essential information for the safe and efficient operation of your new speakers. Please read this manual thoroughly before use and retain it for future reference.
The Ibiza Sound DISCO8B is a pair of trapezoidal DJ speakers, also known as Cluster speakers, designed for enhanced bass performance. Each 2-way speaker features a 20 cm (8-inch) woofer and a 185 x 80 mm medium/tweeter. Constructed from durable wood and protected by a full metal grille, the speakers are finished with an anthracite carpet covering. They are equipped with two Marshall-type transport handles, a standard 35 mm pole mount slot, and four isolation pads for stability.
2. Safety Instructions
To prevent fire, electric shock, or product damage, always follow these basic safety precautions:
- Read all instructions before operating the speakers.
- Do not expose the speakers to rain or moisture.
- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Only use attachments/accessories specified by the manufacturer.
- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Ensure proper impedance matching with your amplifier to prevent damage to both the speakers and the amplifier.
- Avoid prolonged listening at high volume levels to prevent hearing damage.
3. Package Contents
Verify that all items are present and in good condition upon unpacking:
- 2 x Ibiza Sound DISCO8B Passive Speakers
- User Manual (this document)
4. Product Overview
Familiarize yourself with the key features and components of your Ibiza Sound DISCO8B speakers.
Figure 4.1: Front View of the Speaker
This image displays the front of the Ibiza Sound DISCO8B speaker, highlighting its robust full metal grille that protects the internal components, including the large woofer and the medium/tweeter. The speaker's trapezoidal shape is also visible.
Figure 4.2: Rear View and Connection Panel
The rear view of the speaker shows the connection panel. This panel includes both screw terminals and banana plug inputs, providing versatile options for connecting the speaker to an amplifier. The product label with specifications is also visible.

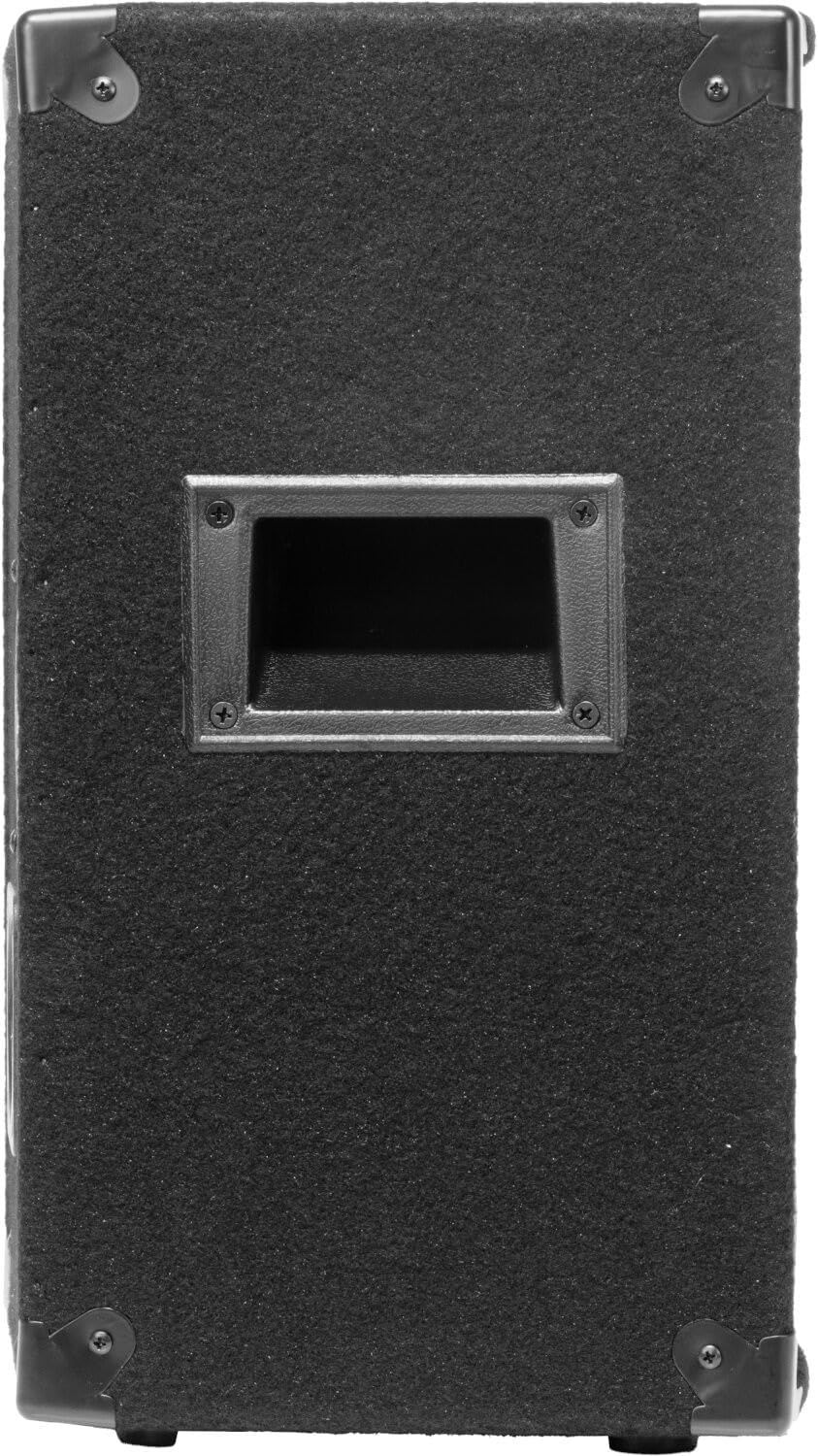

Figure 4.3: Side View with Transport Handle
This image illustrates the side of the speaker, featuring one of the two recessed Marshall-type transport handles. These handles are designed for easy and secure portability of the speaker.
Figure 4.4: Bottom View with Pole Mount and Isolation Pads
The bottom of the speaker is shown, revealing the standard 35 mm pole mount socket for stand installation. Also visible are the four sturdy isolation pads, which provide stability and help reduce vibrations when the speaker is placed on a surface.
5. Setup
Proper setup is crucial for optimal performance and safety.
5.1 Placement
- Place speakers on a stable, flat surface or mount them on compatible 35mm speaker stands.
- Ensure adequate ventilation around the speakers. Do not place them in enclosed spaces.
- For best sound dispersion, position speakers at ear level when possible.
5.2 Connections
The DISCO8B speakers are passive and require an external amplifier. Ensure your amplifier's output power and impedance match the speaker's specifications.
- Turn off your amplifier before making any connections.
- Connect speaker cables from the amplifier's speaker output terminals to the DISCO8B speaker's input terminals. You can use either screw terminals or banana plugs.
- Ensure correct polarity: connect the positive (+) terminal of the amplifier to the positive (+) terminal of the speaker, and the negative (-) terminal of the amplifier to the negative (-) terminal of the speaker. Incorrect polarity will result in poor sound quality.
- Secure all connections to prevent accidental disconnections or short circuits.
6. Operating Instructions
Once connected, follow these steps to operate your speaker system:
- Double-check all connections to ensure they are secure and correctly polarized.
- Set the volume control on your amplifier to its minimum level.
- Power on your amplifier.
- Gradually increase the volume to a comfortable listening level. Avoid pushing the amplifier into clipping (distortion), as this can damage the speakers.
- When finished, lower the volume on your amplifier before powering it off.
7. Maintenance
Regular maintenance will help prolong the life of your speakers.
- Cleaning: Use a soft, dry cloth to wipe down the exterior of the speakers. Do not use liquid cleaners or abrasive materials.
- Storage: If storing the speakers for an extended period, keep them in a cool, dry place, away from direct sunlight and extreme temperatures.
- Inspection: Periodically check speaker cables and connections for any signs of wear or damage.
- Protection: The metal grille and corners provide good protection, but avoid dropping or subjecting the speakers to heavy impacts.
8. Troubleshooting
If you encounter issues with your speakers, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from speakers |
|
|
| Distorted sound |
|
|
| Weak bass response |
|
|
9. Specifications
Detailed technical specifications for the Ibiza Sound DISCO8B Speaker System:
| Feature | Specification |
|---|---|
| Model | DISCO8B (S0020001B) |
| Type | 2-Way Passive DJ Speaker Pair, Bass Reflex |
| RMS Power (per speaker) | 150 W |
| Peak Power (per speaker) | 300 W |
| Woofer | 20 cm (8 inches) |
| Medium / Tweeter | 185 x 80 mm |
| Ports | 2 |
| Impedance | 8 ohms |
| Frequency Response | 55 Hz - 20 KHz |
| Sensitivity | 97 dB |
| Connections | Screw terminal, Banana plugs |
| Finish | Anthracite carpet |
| Protection | Full metal protective grille, Metal protective corners |
| Transport | 2 Marshall-type transport handles |
| Mounting | Standard 35 mm pole mount socket |
| Isolation | 4 isolation pads |
| Dimensions (W x H x D) | 285 x 420 x 225 mm |
| Unit Weight | 5.4 kg (11.9 lbs) |
10. Warranty and Support
The Ibiza Sound DISCO8B Speaker System comes with a 2-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For technical support, warranty claims, or service inquiries, please contact your retailer or the Ibiza Sound customer service. Please have your proof of purchase and product model number (S0020001B) ready when contacting support.
Note: This warranty does not cover damage caused by misuse, accident, unauthorized modification, or improper installation.
