Pioneer VSX-523 5.1-Channel A/V Receiver User Manual

1. Product Overview

The Pioneer VSX-523 is a 5.1-channel A/V receiver designed to enhance your home entertainment experience. It features advanced connectivity options and sound technologies to deliver clear audio reproduction and versatile integration with various devices.

Figure 1.1: Front view of the Pioneer VSX-523 A/V Receiver, showcasing its sleek black design and control knobs.

This receiver supports HDMI with 3D and 4K Ultra HD pass-through, ensuring compatibility with the latest display technologies. It also offers "Made for iPhone" compatibility and Pioneer's proprietary sound enhancements like Phase Control, Advanced Sound Retriever, and Auto Level Control for optimized audio performance.

1.1 Official Product Video

2. Setup Guide

This section guides you through the initial setup of your Pioneer VSX-523 A/V Receiver.

2.1 Unboxing and Placement

• Carefully remove the receiver and all accessories from the packaging.
• Place the receiver on a stable, flat surface with adequate ventilation to prevent overheating. Ensure there is sufficient space around the unit for airflow.

2.2 Connecting Your Speakers

The VSX-523 supports a 5.1 channel speaker configuration. Connect your speakers to the corresponding terminals on the rear panel of the receiver.

• Front Speakers (L/R): Connect your left and right front speakers.
• Center Speaker: Connect your center channel speaker.
• Surround Speakers (L/R): Connect your left and right surround speakers.
• Subwoofer: Connect your powered subwoofer to the "SUBWOOFER PRE OUT" port.

Figure 2.1: Rear panel of the Pioneer VSX-523, showing speaker terminals and various input/output ports, including HDMI.

2.3 Connecting Audio/Video Devices (HDMI)

The VSX-523 features four HDMI inputs for connecting your Blu-ray players, cable boxes, gaming consoles, and other HDMI-enabled devices. Connect your TV to the HDMI OUT port.

• Connect your Blu-ray player to the BD HDMI input.
• Connect your cable/satellite box to the SAT/CBL HDMI input.
• Connect your gaming console to the GAME HDMI input.
• Connect your DVD player or other device to the DVD HDMI input.
• Connect the HDMI OUT from the receiver to an HDMI input on your television.

2.4 MCACC Auto Room Calibration

Pioneer's Multi-Channel Acoustic Calibration System (MCACC) optimizes your speaker settings for your specific room environment. This ensures the best possible sound performance.

1. Plug the included MCACC setup microphone into the dedicated port on the front panel of the receiver.
2. Place the microphone at your primary listening position (e.g., on a tripod or cushion at ear level).
3. Follow the on-screen instructions (if available via composite video output) or the receiver's front panel display to initiate the MCACC calibration process. The receiver will emit test tones to measure speaker distances, levels, and equalization.
4. Once calibration is complete, remove the microphone.

3. Operating Instructions

Learn how to operate your Pioneer VSX-523 A/V Receiver for daily use.

3.1 Power On/Off and Input Selection

• Press the STANDBY/ON button on the front panel or remote control to power the receiver on or off.
• Use the INPUT SELECTOR knob on the front panel or the dedicated input buttons on the remote control (e.g., BD, SAT/CBL, GAME, DVD) to switch between connected devices.

3.2 Volume Control

• Adjust the master volume using the large MASTER VOLUME knob on the front panel or the VOLUME +/- buttons on the remote control.

3.3 Smartphone and USB Connectivity

The front USB port allows for direct digital connection and playback from compatible Apple devices and USB storage devices.

• "Made for iPhone" Compatibility: Connect your iPhone 5, iPad mini, or other compatible iPod/iPhone models using a USB cable to the front USB port. You can play music directly through the receiver, and your device will charge simultaneously.
• USB Media Playback: Insert a USB thumb drive containing MP3, WMA, or AAC audio files into the front USB port. The receiver will automatically detect the device and allow you to browse and play your music files.

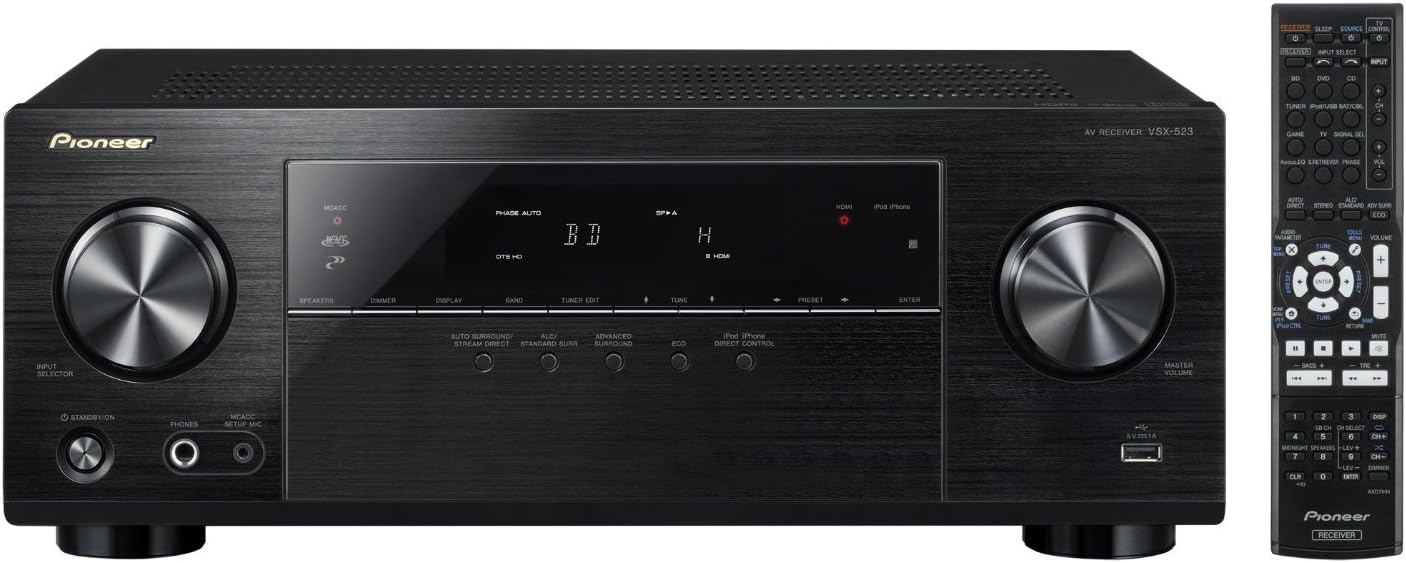

Figure 3.1: Front view of the Pioneer VSX-523 with its remote control, illustrating the accessible front USB port for device connectivity.

3.4 HDMI Features (3D and 4K Ultra HD Pass-Through)

The VSX-523 supports advanced HDMI features, allowing it to pass through high-quality video signals to your display.

• 3D Pass-Through: Enjoy 3D content from compatible sources (e.g., 3D Blu-ray players) when connected through the receiver to a 3D-compatible TV.
• 4K Ultra HD Pass-Through: The receiver can pass through 4K Ultra HD video signals (4096 x 2160 resolution) from 4K sources to a 4K-compatible display. This ensures future-readiness for higher resolution content.
• HDMI Audio Return Channel (ARC): If your TV supports ARC, audio from your TV's built-in tuner or smart apps can be sent back to the receiver via the HDMI cable, eliminating the need for a separate optical audio cable. Ensure the receiver is powered on before the TV for optimal ARC functionality.

3.5 ECO Mode

The energy-saving ECO Mode reduces power consumption in both on and standby modes without sacrificing performance or features.

• Activate ECO Mode via the remote control or front panel button (refer to your remote's specific button layout). This intelligent mode analyzes your sources in real-time and adjusts power consumption accordingly.

4. Maintenance

Proper care and maintenance will ensure the longevity and optimal performance of your Pioneer VSX-523 A/V Receiver.

4.1 Cleaning

• Before cleaning, ensure the receiver is powered off and unplugged from the wall outlet.
• Wipe the exterior surfaces with a soft, dry cloth. For stubborn smudges, slightly dampen the cloth with water and then wipe dry immediately.
• Do not use abrasive cloths, waxes, benzene, paint thinner, or other chemical solvents, as these may damage the finish.
• Avoid spraying cleaning solutions directly onto the unit.

4.2 Ventilation

• Ensure that the ventilation openings on the top, sides, and rear of the receiver are not blocked. Proper ventilation is crucial to prevent internal heat buildup.
• Do not place the receiver in an enclosed cabinet without adequate airflow.

5. Troubleshooting

If you encounter issues with your receiver, refer to the following common problems and solutions before seeking professional assistance.

5.1 No Power

• Ensure the power cord is securely plugged into both the receiver and a working wall outlet.
• Check if the power outlet is active by plugging in another device.

5.2 No Sound or Distorted Audio

• Volume Level: Increase the master volume. Ensure the mute function is not active.
• Input Selection: Verify that the correct input source is selected on the receiver (e.g., "BD" for your Blu-ray player).
• Speaker Connections: Check all speaker wire connections at both the receiver and the speakers. Ensure positive (+) and negative (-) terminals are correctly matched.
• HDMI Audio: If using HDMI, ensure your source device is configured to output audio via HDMI. For ARC, ensure the receiver is powered on before the TV.
• Speaker Settings: Run the MCACC Auto Room Calibration again to ensure optimal speaker settings.

5.3 No Video Output

• HDMI Connections: Ensure all HDMI cables are securely connected between your source device, the receiver's HDMI input, and the receiver's HDMI OUT to your TV.
• TV Input: Verify that your TV is set to the correct HDMI input that the receiver is connected to.
• Source Device: Ensure your source device (e.g., Blu-ray player) is powered on and outputting video.
• Power-On Order: Some users report that the receiver can be finicky about the power-on order. Try powering on the receiver first, then the TV, and then the source device.

5.4 On-Screen Display (OSD) Not Appearing on TV

• The VSX-523's on-screen configuration guide (OSG) is designed to display only via composite video output (yellow RCA cable), not via HDMI. If your TV does not have a composite video input, you will need to use the receiver's front panel display for menu navigation and settings adjustments.

6. Specifications

7. Warranty and Support

For detailed warranty information, please refer to the warranty card included with your product or visit the official Pioneer website. Keep your proof of purchase for warranty claims.

Important Note: This product manual provides essential setup and operating instructions. For comprehensive details, advanced settings, and a full list of features, please refer to the complete user manual provided on the included CD-ROM or available for download from the official Pioneer support website.

For technical support, service, or additional inquiries, please contact Pioneer customer support through their official channels.
