Linksys SD2005 5-Port Gigabit Ethernet Switch User Manual

1. Introduction

The Linksys SD2005 5-Port Gigabit Ethernet Switch is designed to expand your network capacity with minimal effort. This unmanaged switch provides five Gigabit Ethernet ports, allowing you to connect multiple devices such as computers, printers, and network-attached storage (NAS) to your network at high speeds. Its plug-and-play design ensures easy installation without the need for complex configuration.

2. Package Contents

Please verify that your package contains the following items:

• Linksys SD2005 5-Port Gigabit Ethernet Switch
• Power Adapter

3. Product Overview

The Linksys SD2005 switch features a compact design with essential ports for network expansion.

Figure 1: Top view of the Linksys SD2005 5-Port Gigabit Ethernet Switch, showing the device and its included power adapter.

The front panel includes five RJ45 Gigabit Ethernet ports, each with an LED indicator to show connection status and activity. The rear panel typically houses the power input port.

Figure 2: Side view of the Linksys SD2005 5-Port Gigabit Ethernet Switch, illustrating its ventilation design.

The bottom of the switch includes product information and rubber feet for stable placement.

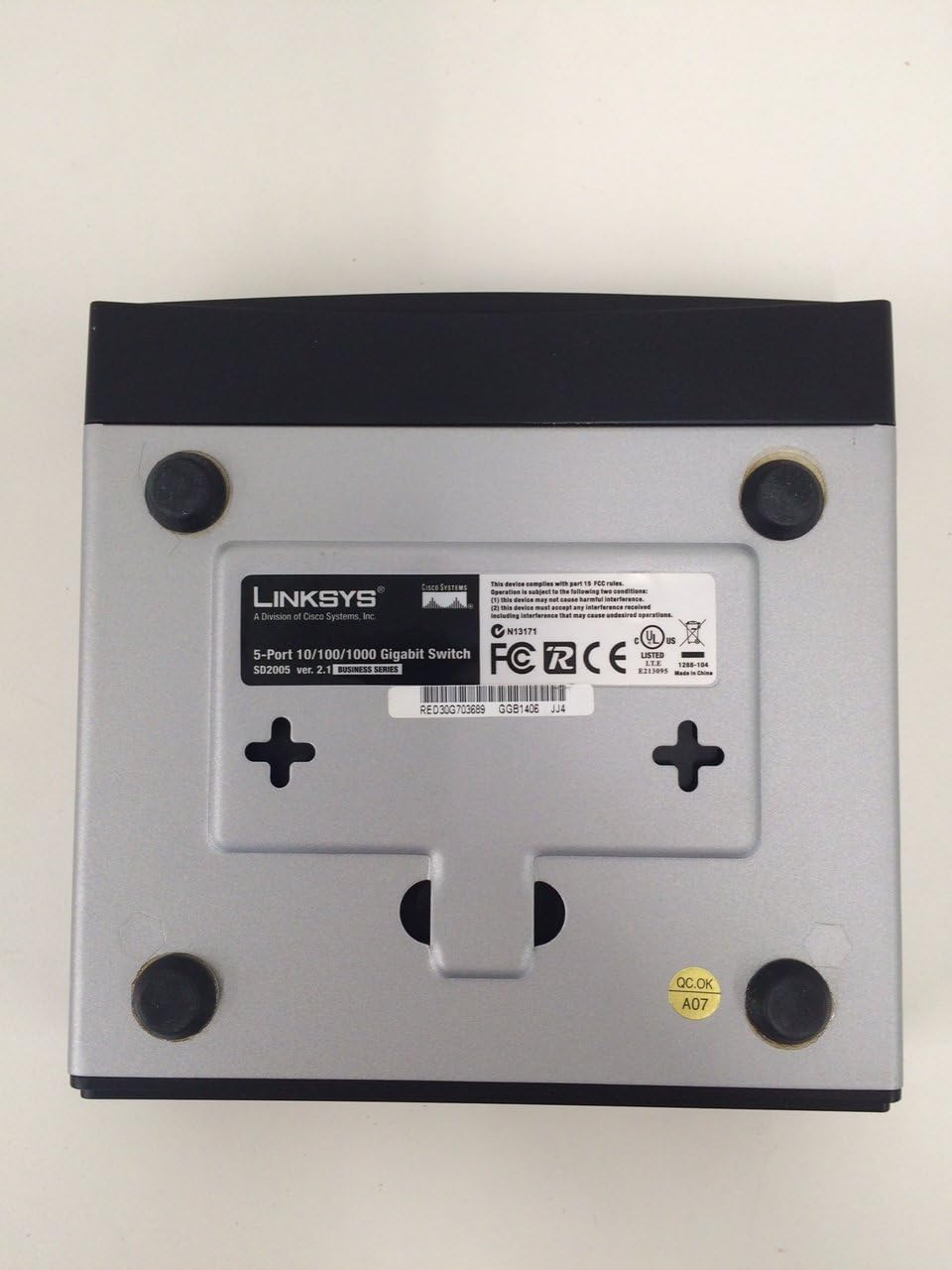

Figure 3: Bottom view of the Linksys SD2005 5-Port Gigabit Ethernet Switch, displaying the model number, serial number, and regulatory compliance information.

4. Setup

Follow these steps to set up your Linksys SD2005 Gigabit Ethernet Switch:

1. Connect the Power Adapter: Plug the included power adapter into the power input port on the switch and then into a standard electrical outlet. The power LED on the switch should illuminate.
2. Connect to Your Network: Connect an Ethernet cable from your main network device (e.g., router, modem) to any of the five Gigabit Ethernet ports on the SD2005 switch.
3. Connect Your Devices: Connect your network-enabled devices (e.g., computers, gaming consoles, smart TVs, network printers) to the remaining Ethernet ports on the switch using standard Ethernet cables.
4. Verify Connection: Once connected, the corresponding LED indicator for each active port on the switch should light up, indicating a successful connection. A blinking LED indicates network activity.

5. Operating the Switch

The Linksys SD2005 is an unmanaged switch, meaning it operates on a plug-and-play basis without requiring any software configuration. It automatically detects the speed and duplex mode of connected devices and adjusts accordingly. Simply connect your devices, and the switch will handle the data traffic efficiently.

6. Maintenance

To ensure optimal performance and longevity of your switch, consider the following maintenance tips:

• Placement: Place the switch in a well-ventilated area to prevent overheating. Avoid placing it near heat sources or in enclosed spaces.
• Cleaning: Periodically clean the exterior of the switch with a soft, dry cloth. Do not use liquid or aerosol cleaners.
• Cable Management: Ensure Ethernet cables are neatly organized and not excessively bent or kinked, which can affect performance.

7. Troubleshooting

If you encounter issues with your Linksys SD2005 switch, refer to the following common problems and solutions:

• No Power:
  Symptom: The power LED is off.
  Solution: Ensure the power adapter is securely connected to both the switch and a working electrical outlet. Try a different outlet if necessary.
• No Network Connection for a Device:
  Symptom: A device connected to the switch cannot access the network, and its corresponding port LED is off or amber.
  Solution: Check the Ethernet cable connecting the device to the switch. Ensure it is securely plugged in at both ends. Try a different Ethernet cable or a different port on the switch. Verify the device itself is functioning correctly.
• Slow Network Speed:
  Symptom: Connected devices experience slower than expected network speeds.
  Solution: Ensure all connected devices and Ethernet cables support Gigabit Ethernet (Cat5e or Cat6 cables are recommended for Gigabit speeds). Check for excessive network traffic or issues with your main router/modem.

8. Specifications

9. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your product or visit the official Linksys website. You can typically find support resources, FAQs, and contact information there.
