1. Product Overview

The Genuine Hyundai 96700-3S900-RY Steering Switch Assembly, Right, is an authentic Original Equipment Manufacturer (OEM) part designed to ensure high quality and effectiveness for your Hyundai vehicle. This component is an exact fit, matching the part that originally came with your car, providing reliable performance and seamless integration.

Key Features:

• Authentic OEM Part: Guarantees compatibility and performance as per manufacturer standards.
• OEM Quality: Manufactured to the highest quality standards for durability and reliability.
• Exact Fit: Designed to perfectly replace the original part in your vehicle.
• Direct Replacement: Simplifies installation with no modifications required.

Figure 1.1: The Hyundai 96700-3S900-RY Steering Switch Assembly, Right, shown alongside its original packaging. This image highlights the product's new condition and official branding, indicating it is a genuine OEM part.

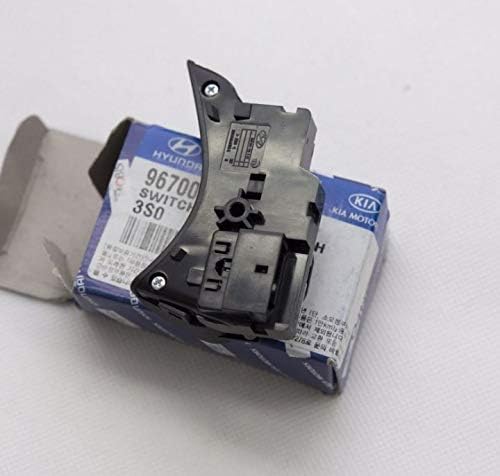

Figure 1.2: A rear view of the Hyundai 96700-3S900-RY Steering Switch Assembly. This perspective shows the mounting points and electrical connectors, crucial for proper installation and ensuring a direct fit within the vehicle's steering column.

2. Setup and Installation

This section provides general guidelines for the installation of the steering switch assembly. Professional installation is recommended due to the complexity of vehicle electrical systems and safety considerations. Always refer to your vehicle's specific service manual for detailed, model-specific instructions.

Required Tools (Typical):

• Screwdriver set (Phillips and flathead)
• Socket wrench set
• Plastic trim removal tools
• Multimeter (for testing, if necessary)

Installation Steps (General):

1. Safety First: Disconnect the vehicle's negative battery terminal to prevent accidental airbag deployment or electrical shorts. Wait at least 10 minutes after disconnecting.
2. Steering Wheel Access: Depending on your vehicle model, you may need to remove the airbag module and/or the steering wheel to access the switch assembly. Follow your vehicle's service manual for safe airbag removal procedures.
3. Remove Old Switch: Carefully disconnect any electrical connectors attached to the old steering switch. Unscrew or unclip the old switch from its mounting location.
4. Install New Switch: Align the new Genuine Hyundai 96700-3S900-RY switch assembly with the mounting points. Secure it with screws or clips as per the original setup.
5. Connect Electricals: Reconnect all electrical connectors to the new switch, ensuring they are firmly seated.
6. Reassemble: Reinstall the steering wheel, airbag module, and any trim pieces in reverse order of removal. Ensure all components are securely fastened.
7. Reconnect Battery: Reconnect the negative battery terminal. Test the functionality of the new switch.

Note: Improper installation can lead to vehicle malfunction or safety hazards. If you are unsure, consult a certified automotive technician.

3. Operating Instructions

The Genuine Hyundai 96700-3S900-RY Steering Switch Assembly, Right, typically controls various functions accessible from the steering wheel, such as cruise control, audio system controls, or multi-information display navigation. The specific functions depend on your vehicle's model and trim level.

Common Functions (Example):

• TRIP Button: Used to cycle through various trip computer displays (e.g., trip distance, average fuel economy, range).
• RESET Button: Typically used to reset trip computer values or confirm selections within the multi-information display.

Refer to your vehicle's owner's manual for detailed instructions on how to use each specific function controlled by this steering switch assembly.

4. Maintenance

As an electrical component, the Hyundai 96700-3S900-RY Steering Switch Assembly requires minimal maintenance. Its design as a sealed unit ensures long-term reliability under normal operating conditions.

General Maintenance Tips:

• Keep Clean: Periodically wipe the surface of the switch with a soft, dry cloth to remove dust and grime. Avoid using harsh chemicals or abrasive cleaners.
• Avoid Liquid Exposure: Prevent liquids from spilling onto or entering the switch assembly, as this can cause electrical damage.
• Gentle Operation: Operate the buttons and switches with gentle, firm presses. Avoid excessive force, which could damage the internal mechanisms.
• Regular Vehicle Checks: Ensure your vehicle's electrical system is in good working order, as voltage fluctuations or faulty wiring elsewhere can impact component longevity.

If the switch becomes loose or exhibits intermittent functionality, it may indicate a need for professional inspection or re-installation.

5. Troubleshooting

This section addresses common issues you might encounter with the steering switch assembly. If the problem persists after attempting these solutions, professional diagnosis is recommended.

6. Specifications

Detailed specifications for the Genuine Hyundai 96700-3S900-RY Steering Switch Assembly, Right.

7. Warranty and Support

As a Genuine Hyundai OEM part, this product is typically covered by Hyundai's standard parts warranty. The duration and terms of the warranty may vary based on your region and the specific purchase conditions. Please retain your proof of purchase for any warranty claims.

For Warranty Information:

• Consult your authorized Hyundai dealership.
• Refer to the warranty documentation provided with your vehicle or part.

Customer Support:

For technical assistance, installation queries, or support regarding this product, please contact your local authorized Hyundai service center or the seller from whom you purchased the part. They can provide specific guidance and professional assistance.

You can also visit the official HYUNDAI Store on Amazon for more information on genuine Hyundai parts and accessories.
