LEATHERMAN Raptor Emergency Response Shears (Model 831741) Instruction Manual

Introduction

The LEATHERMAN Raptor Emergency Response Shears are designed for medical professionals and first responders, offering a versatile toolset for critical situations. Developed with input from special operations medics, EMTs, and fire professionals, the Raptor provides a balance of essential features for medical-specific operations.

This manual provides detailed instructions for the proper use, care, and maintenance of your Raptor shears.

Product Overview

The Raptor is equipped with 6 essential tools:

• Folding Emergency Response Shears
• Strap Cutter
• Ring Cutter
• Ruler (5 cm)
• Oxygen Tank Wrench
• Carbide Glass Breaker

Figure 1: LEATHERMAN Raptor Emergency Response Shears in both folded and unfolded states.

Setup and Deployment

The Raptor shears feature a folding design for compact storage and quick deployment.

Unfolding the Shears

1. Hold the folded shears firmly.
2. Locate the two triangular release buttons on the side of the tool.
3. Press both buttons simultaneously and extend the handles until they lock into the open position.
4. Ensure both handles are securely locked before use.

Folding the Shears

1. Locate the two triangular release buttons on the side of the tool.
2. Press both buttons simultaneously and fold the handles inward until they lock into the closed position.
3. Ensure the shears are fully closed for safe storage.

Operating Instructions

1. Emergency Response Shears

The primary function of the Raptor is its robust medical shears. These shears are designed to cut through tough materials quickly and efficiently.

• Usage: Open the shears fully. Position the material to be cut between the blades. Apply firm, steady pressure to the handles to cut. The serrated lower blade helps grip materials.
• Application: Ideal for cutting clothing, bandages, and other materials in emergency situations.

Figure 2: The 420HC stainless steel folding medical shears in action, demonstrating their cutting capability on fabric.

2. Strap Cutter

The integrated strap cutter provides a safe and effective way to cut through seatbelts or other straps.

• Usage: With the shears folded or unfolded, deploy the strap cutter by rotating it out from the handle. Hook the strap into the cutter's opening and pull firmly to slice through.
• Application: Essential for quickly freeing individuals from seatbelts or other restraints.

Figure 3: Close-up of the strap cutter feature, showing it cutting through a thick strap.

3. Ring Cutter

The ring cutter is designed for safely removing rings from swollen fingers.

• Usage: With the shears open, position the ring within the small cutting notch on the back of one of the shear blades. Gently squeeze the handles to cut the ring.
• Application: Used to remove rings in medical emergencies where swelling prevents removal.

Figure 4: The ring cutter feature being used to cut a ring from a finger.

4. Oxygen Tank Wrench

A specialized wrench for opening standard oxygen tanks.

• Usage: With the shears folded, locate the oxygen tank wrench on the strap cutter tool. Align it with the valve of an oxygen tank and turn to open or close.
• Application: For quick access to oxygen in emergency medical situations.

Figure 5: The oxygen tank wrench being used to operate an oxygen tank valve.

5. Carbide Glass Breaker

A robust carbide tip for breaking vehicle windows or other glass in emergencies.

• Usage: With the shears folded, hold the tool firmly and strike the corner of the glass with the carbide tip.
• Application: Used for emergency egress or access through glass barriers.

Figure 6: The carbide glass breaker tip making contact with a glass surface, demonstrating its function.

6. Ruler

A 5 cm ruler is integrated into one of the shear blades for quick measurements.

• Usage: The ruler markings are visible on the side of the shear blade when the tool is open.
• Application: Useful for quick assessments or measurements in the field.

Carrying Options

The Raptor offers multiple carrying options to suit various preferences and operational needs.

• Pocket Clip: An integrated pocket clip allows for secure attachment to clothing or gear.
• Lanyard Hole: A lanyard hole is provided for attaching a lanyard or cord, preventing loss.
• MOLLE Compatible Holster: The included holster is designed for versatility, allowing the Raptor to be carried in either the folded or unfolded position. It is compatible with MOLLE webbing systems and standard utility belts.

Figure 7: The Raptor shears shown in their specialized holster, demonstrating how they can be carried both open and closed.

Figure 8: The versatile holster for the Raptor, highlighting its MOLLE compatibility and utility belt attachment options.

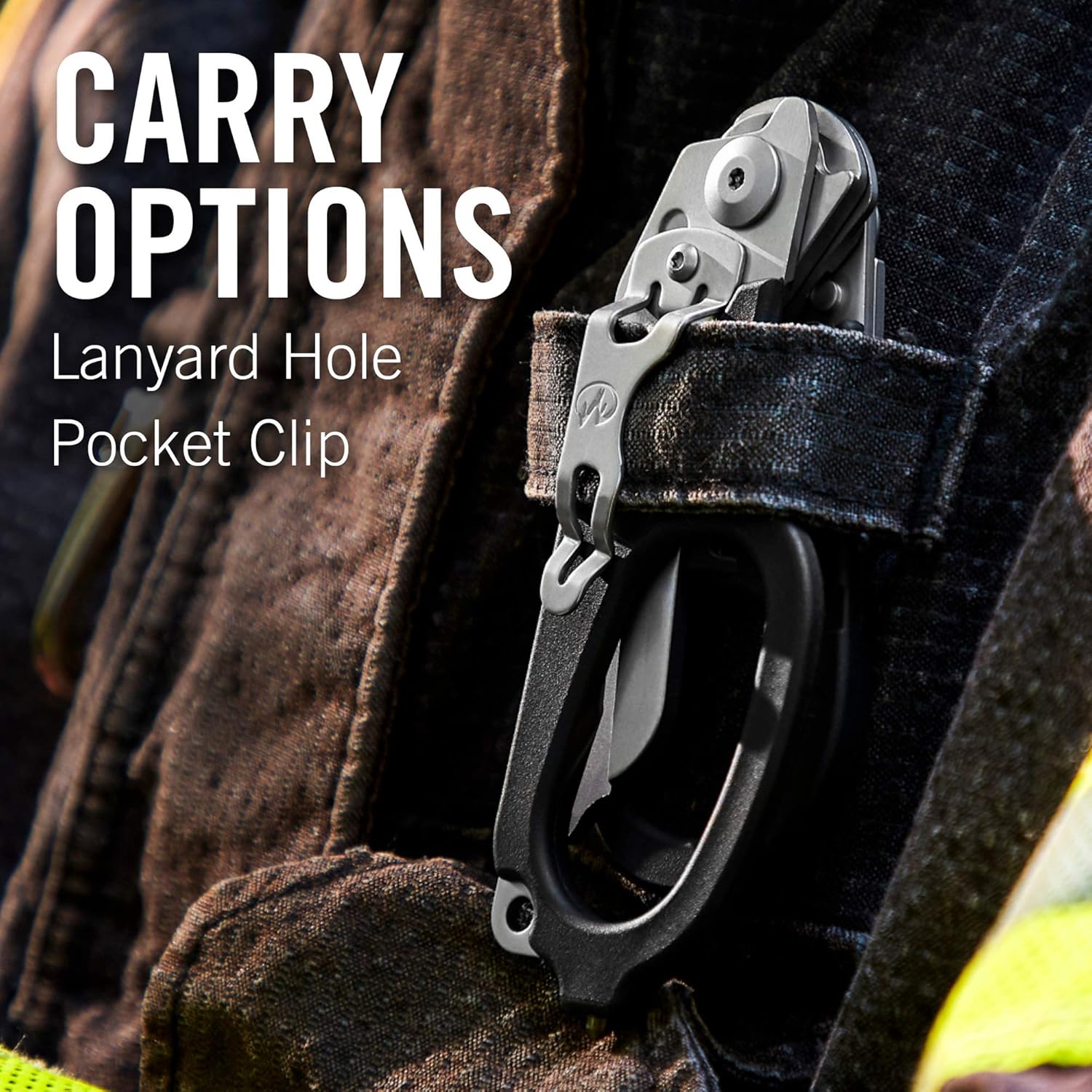

Figure 9: The Raptor shears secured to gear using both the integrated lanyard hole and the pocket clip.

Maintenance

To ensure the longevity and optimal performance of your LEATHERMAN Raptor shears, follow these maintenance guidelines:

• Cleaning: After each use, especially in harsh environments or after contact with bodily fluids, clean the shears thoroughly with soap and water. Rinse completely and dry immediately.
• Lubrication: Apply a light coat of high-quality lubricant to the pivot points and moving parts periodically to ensure smooth operation and prevent corrosion.
• Sharpening: The shears are made from 420HC stainless steel. If the blades become dull, they can be professionally sharpened. The serrated edge may require specialized sharpening tools.
• Storage: Store the Raptor in a dry environment, preferably in its holster, to protect it from damage and environmental elements.

Troubleshooting

Most issues with the LEATHERMAN Raptor can be resolved with basic care. If you encounter problems, consider the following:

• Stiff Operation: If the folding mechanism or shear action feels stiff, clean the tool thoroughly and apply lubricant to all pivot points.
• Dull Blades: If the shears are no longer cutting effectively, they may need sharpening. Refer to the Maintenance section.
• Corrosion: Although made of stainless steel, prolonged exposure to moisture or corrosive substances can lead to corrosion. Clean and dry the tool immediately after exposure and apply a rust preventative.

For persistent issues, contact LEATHERMAN customer support.

Specifications

Warranty and Support

LEATHERMAN offers a 25-year limited warranty on its products, ensuring many years of dependable service. For warranty claims or support, please contact the vendor directly.

For more information and to explore other LEATHERMAN products, visit the Official LEATHERMAN Store.
