Product Overview
The TELECO TVTXP-868-A02 is a compact and ergonomic remote control designed for gate systems. It operates on a frequency of 868.3 MHz and features two control buttons. This remote is engineered for simple programming and reliable operation with compatible TELECO gate receivers.
Key Features:
- Operating Frequency: 868.3 MHz
- Number of Buttons: 2
- Battery Type: CR2032 (included)
- Dimensions: 59mm x 33mm x 13mm
- Maximum Range: 10 meters
Figure 1: Front view of the TELECO TVTXP-868-A02 Remote Control, showing its two black control buttons on a grey casing.
Setup
Battery Installation
The remote control comes with a pre-installed CR2032 battery. If replacement is needed, follow these steps:
- Locate the battery compartment on the back of the remote control.
- Use a small coin or flat tool to gently pry open the battery cover.
- Remove the old CR2032 battery.
- Insert a new CR2032 battery with the positive (+) side facing upwards.
- Securely close the battery cover until it clicks into place.
Figure 2: The remote control with its back cover removed, illustrating the battery compartment for CR2032 battery replacement.
Programming the Remote Control
The TELECO TVTXP-868-A02 remote control is programmed by recording its signal directly into your gate receiver. The specific programming procedure may vary depending on your gate receiver model. Please refer to your gate receiver's instruction manual for detailed programming steps. Generally, the process involves:
- Accessing the programming mode on your gate receiver (often by pressing a 'Learn' or 'Prog' button).
- Pressing a button on the new TELECO TVTXP-868-A02 remote control to transmit its code.
- Confirming successful programming on the receiver (e.g., an LED indicator).
This remote control is compatible with TELECO 868, TV LINK, and DOMATEAM products that utilize the 868MHz frequency.
Operating Instructions
Once programmed, the TELECO TVTXP-868-A02 remote control operates by simply pressing one of its two buttons. Each button can be assigned a specific function, such as opening/closing a gate or activating a pedestrian mode, depending on your gate receiver's configuration.
- Button 1: Typically used for the primary gate function (e.g., full open/close).
- Button 2: Can be assigned to a secondary function (e.g., partial opening, light control).
Ensure you are within the maximum operating range of 10 meters for reliable signal transmission.
Maintenance
Battery Replacement
When the remote control's range decreases or it becomes unresponsive, it is likely time to replace the CR2032 battery. Follow the battery installation steps outlined in the 'Setup' section.
Cleaning
To clean the remote control, use a soft, dry cloth. Do not use abrasive cleaners, solvents, or immerse the device in water. Keep the remote control dry and away from extreme temperatures.
Troubleshooting
If you experience issues with your TELECO TVTXP-868-A02 remote control, consider the following:
- Remote not responding: Check the battery. Replace it if necessary.
- Reduced range: This often indicates a low battery. Replace the CR2032 battery. Ensure there are no obstructions between the remote and the receiver.
- Remote not programming: Ensure your gate receiver is in programming mode. Verify that the remote control is compatible with your receiver's frequency (868.3 MHz).
- Compatibility Issues:
- This remote control is not compatible with TELECO TXP-433-A02 or any other 433MHz transmitters.
- This remote control is not compatible with remotes labeled Elero, Tousek, or Crawford.

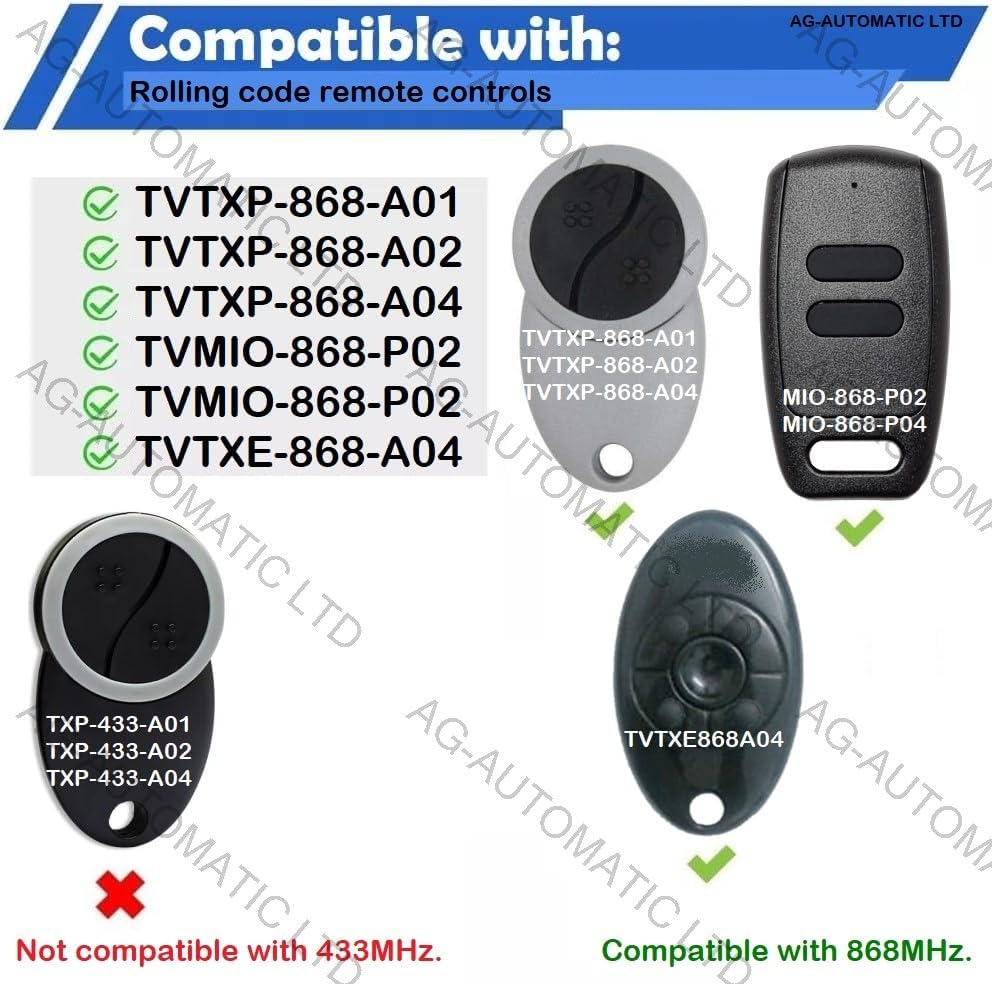

Figure 3: A visual guide illustrating compatibility with various TELECO 868MHz rolling code remote controls and incompatibility with 433MHz models.
Specifications
| Feature | Specification |
|---|---|
| Model Name | TELECO TVTXP-868-A02 |
| Item Model Number | TXP-868-A02 |
| Brand | Teleco |
| Frequency | 868.3 MHz |
| Number of Buttons | 2 |
| Battery Type | CR2032 (1 required) |
| Product Dimensions | 5.9 x 3.3 x 1.3 cm |
| Weight | 20 g |
| Maximum Range | 10 Meters |
| Connectivity Technology | Infrared |
| Color | Black |
Warranty Information
The TELECO TVTXP-868-A02 Remote Control comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
Support
For further assistance, technical support, or inquiries regarding your TELECO TVTXP-868-A02 remote control, please contact your retailer or the official TELECO customer service. Refer to the packaging or the manufacturer's website for contact details.
