1. Product Overview
The ELK Home 45042/1 Searsport Outdoor Post Light is a 15-inch high, 1-light fixture designed for outdoor use. It features a weathered charcoal finish and is constructed from durable cast aluminum with a glass shade. This traditional style post mount light accommodates one 100-watt medium base bulb, providing illumination for outdoor spaces.

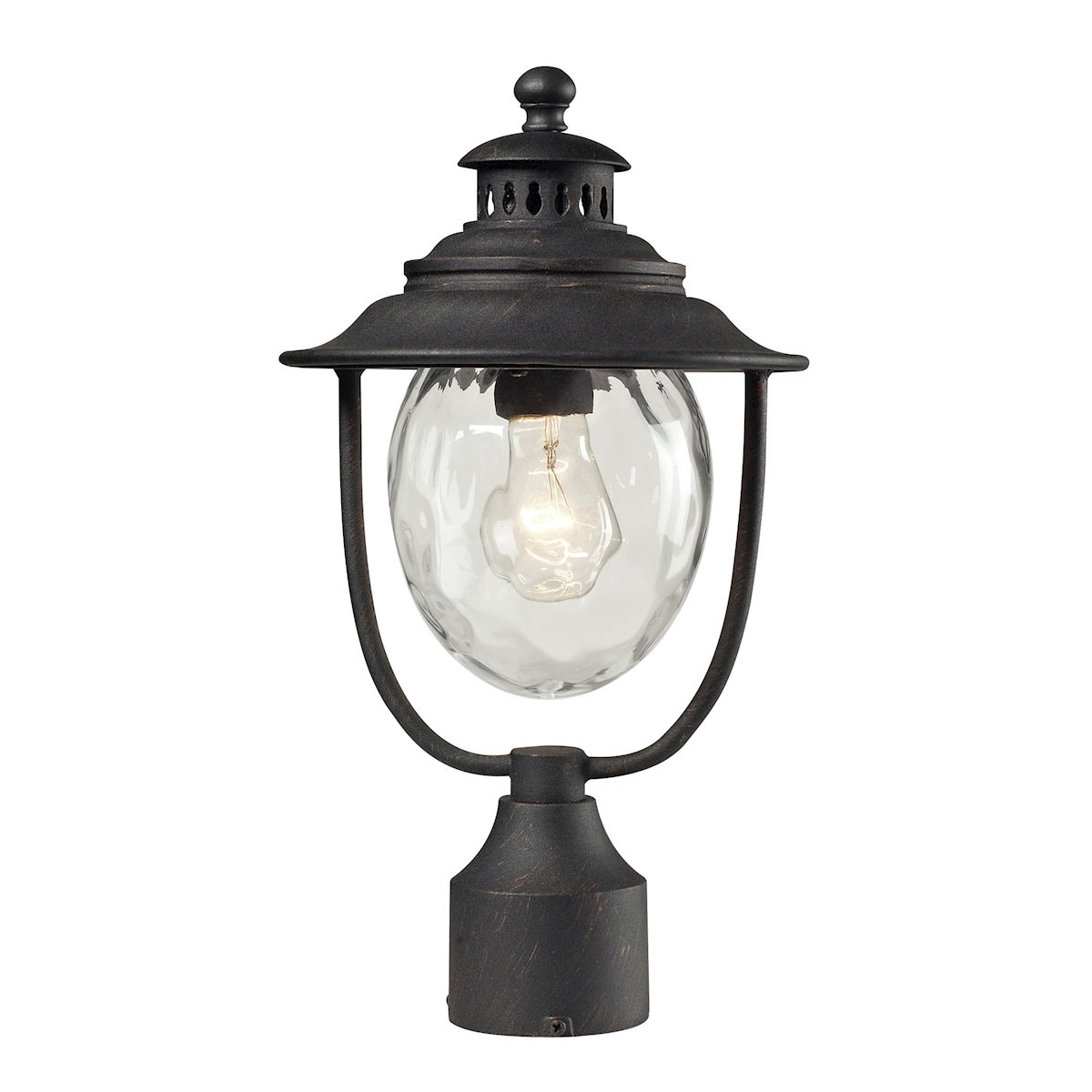

Figure 1: ELK Home Searsport Outdoor Post Light (Overall View)
2. Important Safety Information
WARNING: Risk of electric shock. Turn off power at the circuit breaker or fuse box before installation or servicing. Consult a qualified electrician if you are unsure about electrical wiring.
- Read all instructions carefully before beginning installation.
- Ensure all electrical connections comply with local codes and ordinances.
- This product is designed for outdoor use.
- Do not exceed the maximum wattage specified for the bulb.
- Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
3. Package Contents
Verify that all components are present before beginning installation:
- Searsport 1-Light Outdoor Post Light Fixture (Model 45042/1)
- Glass Shade
- Mounting Hardware (screws, wire nuts, etc. - specific items may vary)
- Instruction Sheet
Figure 2: Detail of the light fixture's glass shade and bulb socket.
4. Setup and Installation
This fixture requires assembly and is designed for semi-flush mount installation on an outdoor post. Professional installation is recommended for electrical wiring.
- Prepare the Installation Area: Ensure the power supply to the installation location is turned off at the main circuit breaker.
- Unpack Components: Carefully remove all parts from the packaging.
- Assemble the Fixture:
- Attach the glass shade to the fixture body using the provided hardware.
- Ensure all connections are secure.
- Mount the Fixture:
- The fixture is designed to mount onto a standard outdoor post (not included).
- Secure the fixture base to the post using appropriate mounting screws.
Figure 3: Base of the post light, illustrating the mounting area.
- Electrical Connection:
- Connect the fixture's wires to the main power supply wires according to local electrical codes. Typically, this involves connecting the black wire to the black (live) wire, the white wire to the white (neutral) wire, and the ground wire to the ground wire.
- Use approved wire connectors and ensure all connections are tight.
- Install Bulb: Insert one E26 medium base bulb (up to 100 watts) into the socket.
- Restore Power: Once installation is complete and all connections are secure, restore power at the circuit breaker.
Figure 4: Top section of the post light.
5. Operation
The ELK Home Searsport Outdoor Post Light is designed for straightforward operation once installed.
- Power On/Off: The light is typically controlled by an external switch connected to the power supply.
- Bulb Type: Use one E26 medium base bulb. Compatible with incandescent and compact fluorescent bulbs.
- Maximum Wattage: Do not exceed 100 watts for the bulb.
- Lighting Direction: The fixture provides up/down light, illuminating the surrounding area.
- Note: While some specifications mention "Touch" control, this typically refers to internal components or specific bulb types. For standard outdoor post light operation, an external wall switch or timer is used.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your outdoor post light.
- Cleaning:
- Turn off power before cleaning.
- Wipe the fixture with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish or glass.
- Clean the glass shade periodically to maintain light output.
- Bulb Replacement:
- Turn off power at the circuit breaker before replacing the bulb.
- Allow the old bulb to cool completely before removal.
- Unscrew the old bulb and screw in a new E26 medium base bulb, ensuring it does not exceed 100 watts.
- Inspection: Periodically check for loose connections, damaged wiring, or signs of wear. Address any issues promptly.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. |
|
|
| Light flickers. |
|
|
8. Product Specifications
| Model Number | 45042/1 |
| Brand | Elk Home |
| Dimensions (L x W x H) | 8"L x 8"W x 15"H |
| Weight | 3 Pounds |
| Material | Aluminum, Glass |
| Finish | Weathered Charcoal |
| Shade Color | Charcoal |
| Light Source | Incandescent, Compact Fluorescent |
| Bulb Base | E26 Medium |
| Max Wattage | 100 watts |
| Voltage | 120 Volts |
| Number of Lights | 1 |
| Indoor/Outdoor Usage | Outdoor |
| Installation Type | Semi Flush Mount |
| Water Resistance Level | Water Resistant |
| Required Assembly | Yes |
9. Warranty Information
This ELK Home product is covered by a 1-year manufacturer's limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications.
For warranty claims, please retain your proof of purchase and contact ELK Home customer support.
10. Customer Support
If you have any questions regarding the installation, operation, or maintenance of your ELK Home 45042/1 Searsport Outdoor Post Light, please contact ELK Home customer support.
For further assistance, visit the official ELK Home website or refer to your purchase documentation for contact details.
