WeatherX WR182R Instant NOAA Weatherband Radio

Introduction

The WeatherX WR182R is a versatile emergency tool designed to keep you informed and prepared. It combines an instant NOAA weather radio, AM/FM radio, and a bright LED flashlight. Multiple power options, including a dynamo hand crank and rechargeable battery, ensure reliability in any situation. This manual provides detailed instructions for setup, operation, and maintenance of your WR182R radio.

Package Contents

• WeatherX WR182R Instant NOAA Weatherband Radio
• DC Charging Cable with Connectors (USB, Micro-USB, Mini-USB)
• User's Guide (this manual)
• Warranty Card

Product Overview

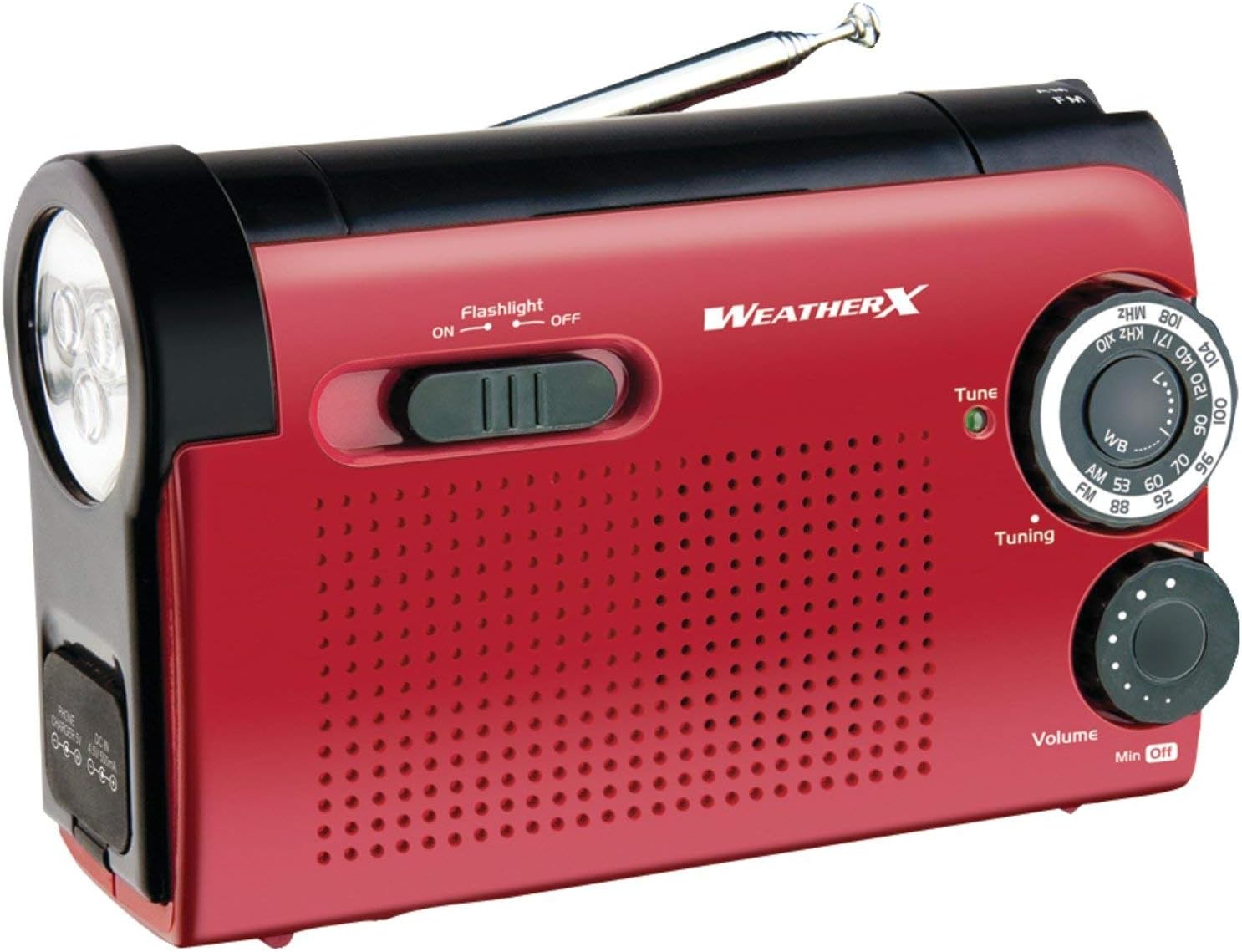

Figure 1: Front view of the WeatherX WR182R radio, showing the flashlight, speaker grille, tuning dial, and volume control.

Figure 2: Side view of the WeatherX WR182R radio, illustrating its compact dimensions (5.28" x 2.09" x 3.46") and the dynamo hand crank.

The WR182R features a robust design with intuitive controls. Key components include:

• LED Flashlight: Located on the left side for illumination.
• Tuning Dial: For selecting radio frequencies.
• Volume Control: Analog knob for adjusting audio output.
• Band Selector: Switch to choose between NOAA Weatherband (WB), AM, and FM radio.
• Dynamo Hand Crank: For manual power generation.
• Telescopic Antenna: Extendable for improved radio reception.
• USB Ports: Female USB, Micro-USB, and Mini-USB for charging and power input.
• Battery Compartment: For optional AA batteries.

Setup

Powering the Radio

The WeatherX WR182R offers multiple power options:

1. Built-in Rechargeable Battery: The radio contains an internal rechargeable battery. This battery can be charged via the dynamo hand crank or the included DC charging cable.
2. Dynamo Hand Crank: For emergency power, extend the hand crank from the side of the radio and rotate it clockwise or counter-clockwise. Continuous cranking will generate power to operate the radio and charge the internal battery.
3. AA Batteries (Not Included): For extended use, open the battery compartment and insert three (3) AA-size batteries, ensuring correct polarity. Switch the power source selector to "AA Batteries" if available, or ensure the internal battery is not selected.
4. DC Charging Cable: Connect the provided DC charging cable to the radio's DC input port and to a compatible power adapter (included) or USB power source.

Figure 3: The radio highlighting its built-in rechargeable battery feature, which can be charged via the hand crank or DC cable.

Operating Instructions

Radio Operation (AM/FM/NOAA Weatherband)

1. Turn On: Rotate the Volume control knob clockwise to turn on the radio and adjust the volume.
2. Select Band: Use the Band Selector switch (usually labeled WB/AM/FM) to choose your desired radio band.
3. Tune Station: Extend the telescopic antenna for optimal reception. Rotate the Tuning dial to find a station. For NOAA Weatherband, tune to the clearest signal.

Figure 4: The radio showcasing its AM/FM radio capabilities, with the tuning dial and band selector visible.

Flashlight Operation

Slide the flashlight ON/OFF switch located near the flashlight lens to activate or deactivate the LED flashlight.

Figure 5: Close-up view of the flashlight end of the radio, showing the LED light and charging ports.

Charging External Devices

The WR182R can act as a power bank for small electronic devices. Connect your device's charging cable to the appropriate USB port on the radio (Female USB, Micro-USB, or Mini-USB). Power will be drawn from the radio's internal rechargeable battery. For best results, ensure the radio's battery is fully charged or continuously crank the dynamo while charging.

Maintenance

• Cleaning: Wipe the radio with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the radio in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, remove AA batteries to prevent leakage.
• Battery Care: Regularly charge the internal rechargeable battery, especially if not used frequently, to maintain its lifespan.

Troubleshooting

Specifications

Warranty and Support

For warranty information and technical support, please refer to the included Warranty Card or visit the official WeatherX website. Keep your purchase receipt for warranty claims.

Manufacturer: Digital Products International, Inc.
