Hailo Big Box 3720-10 Built-in Waste Bin

Introduction

The Hailo Big Box 3720-10 is a 20-liter built-in waste bin designed for efficient waste management within kitchen cabinets. Constructed from durable stainless steel and aluminum, this system is engineered for installation in cabinets with a minimum width of 400 mm and a hinged door. Its design allows the bin to swing out and the lid to open automatically when the cabinet door is opened, providing convenient access for waste disposal.

Safety Instructions

• Read all instructions thoroughly before attempting installation or use.
• Ensure the cabinet area is clear of obstructions and stable before installation.
• Use appropriate safety gear, such as eye protection, during installation.
• Do not overload the waste bin beyond its stated capacity.
• Keep the product out of reach of small children to prevent accidents.
• Avoid placing hot ashes or flammable materials directly into the bin.

Package Contents

Please verify that all components are present before beginning installation:

• 1x Hailo Big Box 3720-10 Waste Bin (20-liter capacity)
• Mounting hardware (screws, brackets)
• Installation template (may be included or printed on packaging)

Setup and Installation

This waste bin is designed for installation in kitchen base cabinets with a hinged door. It is compatible with cabinet widths of 400 mm or more and can be used with soft-close hinges up to 10 Newtons.

1. Preparation: Clear the cabinet interior. Measure the cabinet to ensure it meets the minimum width requirement of 400 mm.
2. Positioning: Use the provided installation template to mark the drilling points for the mounting bracket on the inside wall of the cabinet. Ensure the bin will have sufficient clearance to swing out freely.
3. Drilling: Carefully drill pilot holes at the marked positions. Ensure the drill depth is appropriate to avoid drilling through the cabinet exterior.
4. Mounting Bracket: Securely attach the mounting bracket to the cabinet wall using the provided screws. Verify that the bracket is level and firmly fixed.
5. Attaching the Bin: Hook or slide the waste bin assembly onto the mounted bracket. Ensure it is properly seated and moves smoothly.
6. Lid Mechanism: Connect the lid opening mechanism to the cabinet door according to the instructions on the template. This ensures the lid opens automatically when the door is pulled.
7. Testing: Open and close the cabinet door several times to confirm that the bin swings out smoothly and the lid opens and closes as intended. Adjust if necessary.

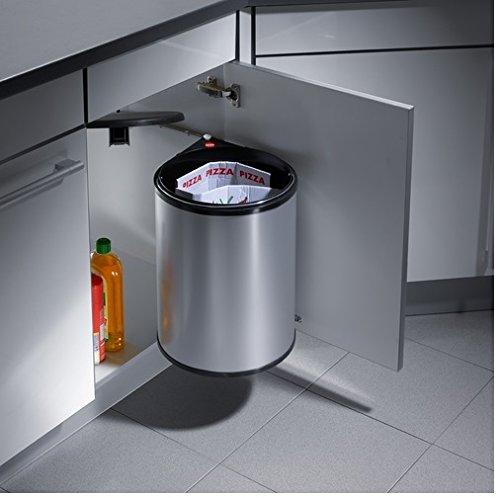

Image: The Hailo Big Box 3720-10 waste bin shown installed in a kitchen cabinet, demonstrating its swing-out function when the cabinet door is opened.

Image: Technical drawing providing detailed dimensions and installation measurements for the Hailo Big Box 3720-10 waste bin.

Operating Instructions

Using your Hailo Big Box 3720-10 waste bin is straightforward:

1. Opening: Simply open the cabinet door to which the bin is attached. The waste bin will automatically swing out, and its lid will open, providing easy access for waste disposal.
2. Disposing Waste: Place your waste into the inner bucket.
3. Closing: Close the cabinet door. The bin will retract back into the cabinet, and the lid will close automatically, sealing off odors.
4. Emptying: To empty the bin, open the cabinet door, lift the inner bucket out of its housing, and dispose of the contents. Replace the inner bucket securely.

Image: The Hailo Big Box 3720-10 waste bin with its lid open, illustrating how the bin appears when ready for waste disposal.

Maintenance

Regular cleaning and maintenance will ensure the longevity and hygienic operation of your waste bin.

• Cleaning the Inner Bucket: Remove the inner bucket and wash it regularly with warm water and mild dish soap. Rinse thoroughly and dry before replacing.
• Cleaning the Exterior: Wipe the stainless steel and aluminum exterior with a soft, damp cloth. For stubborn marks, use a non-abrasive stainless steel cleaner. Avoid harsh chemicals or abrasive sponges.
• Lid Mechanism: Periodically check the lid mechanism and hinges for any debris or buildup that might hinder smooth operation. Clean as needed.
• General Care: Do not use sharp objects to clean the bin, as this may scratch the surfaces. Ensure the bin is completely dry before reassembly to prevent water spots or corrosion.

Troubleshooting

If you encounter any issues with your Hailo Big Box 3720-10, refer to the following common problems and solutions:

• Bin not swinging out smoothly:
  • Check for any physical obstructions inside the cabinet or around the bin's swing path.
  • Ensure all mounting screws are tight and the bracket is securely fastened.
  • Clean the swing mechanism and hinges to remove any dirt or debris.
• Lid not opening or closing properly:
  • Inspect the lid's connecting arm to the cabinet door for proper attachment and alignment.
  • Check the lid hinges for any damage or debris preventing movement.
  • Ensure the inner bucket is correctly seated within the outer housing.
• Unpleasant odors:
  • Thoroughly clean the inner bucket and the outer housing.
  • Ensure the lid closes completely to seal in odors.
  • Consider using bin liners and emptying the bin more frequently.

Specifications

Warranty Information

This Hailo product is covered by a standard manufacturer's warranty. For specific details regarding the warranty period, coverage, and terms, please refer to the warranty documentation included with your purchase. Alternatively, you may visit the official Hailo website or contact their customer support for comprehensive warranty information.

Support

For technical assistance, inquiries about spare parts, or any other support needs related to your Hailo Big Box 3720-10 waste bin, please contact Hailo customer service. You can typically find contact information, including phone numbers and email addresses, on the official Hailo website or in the product packaging.
