Kingfisher 6 Dial Spray Gun User Manual

Introduction

Thank you for choosing the Kingfisher 6 Dial Spray Gun. This manual provides essential information for the safe and effective operation, maintenance, and care of your new spray gun. Please read this manual thoroughly before first use and retain it for future reference.

The Kingfisher 6 Dial Spray Gun is designed for various watering tasks, featuring a soft grip handle, a locking mechanism, and a snap action adaptor for easy connection. Its durable ABS plastic construction ensures frost resistance and shatterproof performance.

What's in the Box

• 1 x Kingfisher 6 Dial Spray Gun (Model 6126DP)

Safety Information

• Always ensure the water supply is turned off before attaching or detaching the spray gun from the hose.
• Do not aim the spray gun at people, animals, or electrical outlets.
• Keep out of reach of children when not in use.
• Do not use with hot water or chemicals not intended for garden use.
• Inspect the spray gun for any damage before each use. Do not use if damaged.

Components

Familiarize yourself with the main components of your Kingfisher 6 Dial Spray Gun:

• Dial Head: Allows selection of 6 different spray patterns.
• Soft Grip Handle: Provides comfortable and secure handling.
• Trigger: Activates water flow.
• Locking Handle/Clip: Keeps the trigger depressed for continuous flow without manual pressure.
• Snap Action Adaptor: For quick and easy connection to standard garden hoses.

Figure 1: Kingfisher 6 Dial Spray Gun with packaging, showing the overall design and key features.

Setup

1. Connect to Hose: Ensure your garden hose has a compatible quick-connect fitting. Simply push the snap action adaptor of the spray gun onto the hose fitting until it clicks securely into place.
2. Check Connection: Gently pull on the spray gun to ensure it is firmly attached and will not leak.
3. Turn on Water: Slowly turn on the water supply from your tap.

Operating Instructions

1. Activate Water Flow: Squeeze the trigger handle to start the water flow. Release the trigger to stop the flow.
2. Locking Handle: For continuous watering without holding the trigger, depress the trigger fully and then push the small locking clip/handle forward (or down, depending on design) to secure the trigger in the 'on' position. To release, simply squeeze the trigger again.
3. Select Spray Pattern: Rotate the dial head at the front of the spray gun to select your desired spray pattern. The available patterns are:
   • Jet: A powerful, concentrated stream for cleaning or reaching distant areas.
   • Mist: A fine, gentle spray ideal for delicate plants or seedlings.
   • Soaker: A heavy, drenching flow for deep watering.
   • Cone: A conical spray pattern, good for general watering.
   • Flat: A wide, flat spray for covering larger areas quickly.
   • Shower: A soft, rain-like spray for general garden watering.

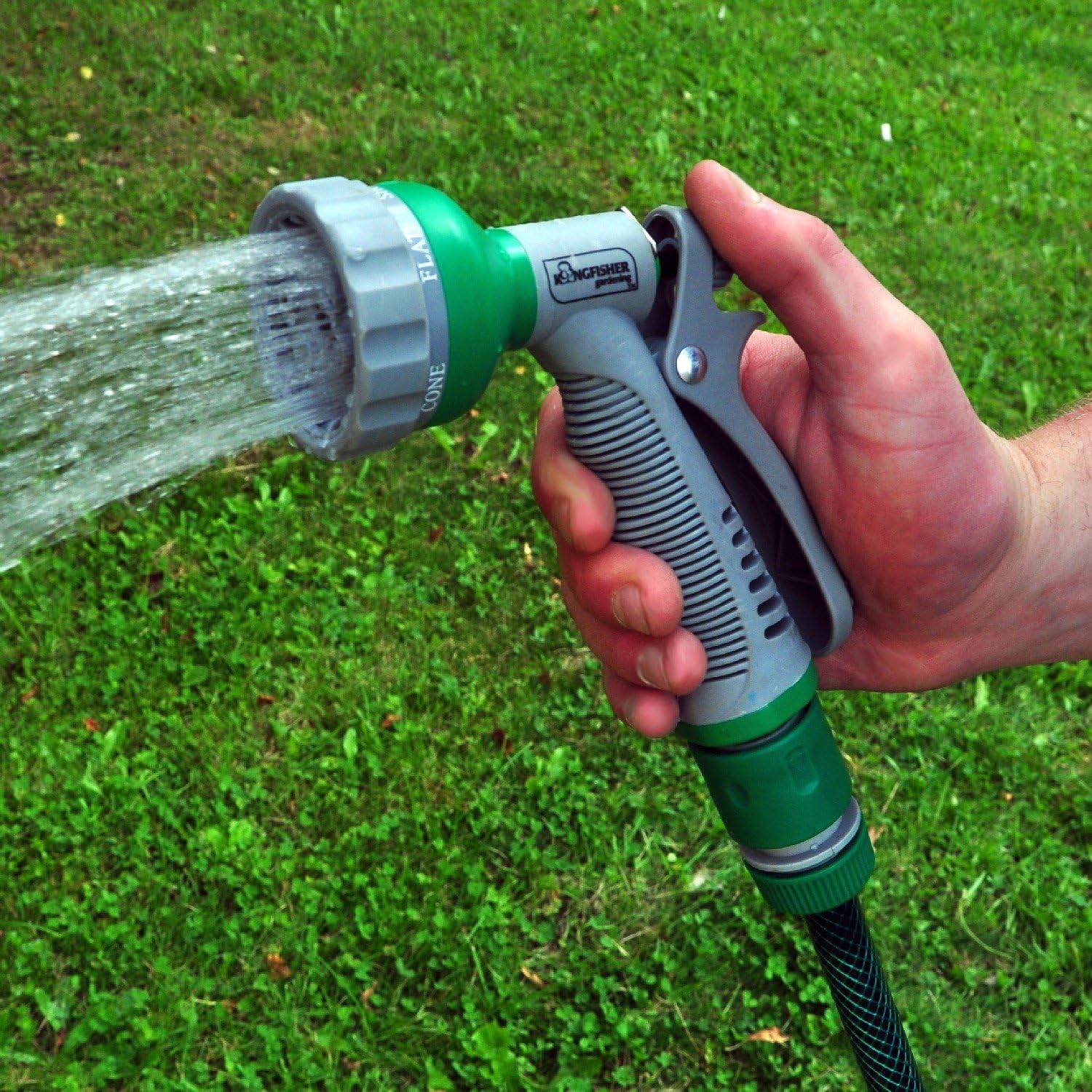

Figure 2: The Kingfisher 6 Dial Spray Gun in operation, demonstrating the water spray.

Maintenance

• Cleaning: After use, rinse the spray gun with clean water to remove any dirt or debris.
• Storage: Store the spray gun in a cool, dry place away from direct sunlight. Although the ABS plastic is frost resistant, it is recommended to drain all water from the spray gun and hose before storing in freezing temperatures to prevent damage from expanding ice.
• Inspection: Periodically check the connections and the spray head for any signs of wear or damage.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the retailer's policy or contact the manufacturer directly. Keep your proof of purchase for any warranty claims.

For further assistance, please visit the Kingfisher website or contact their customer service department.
