1. Introduction

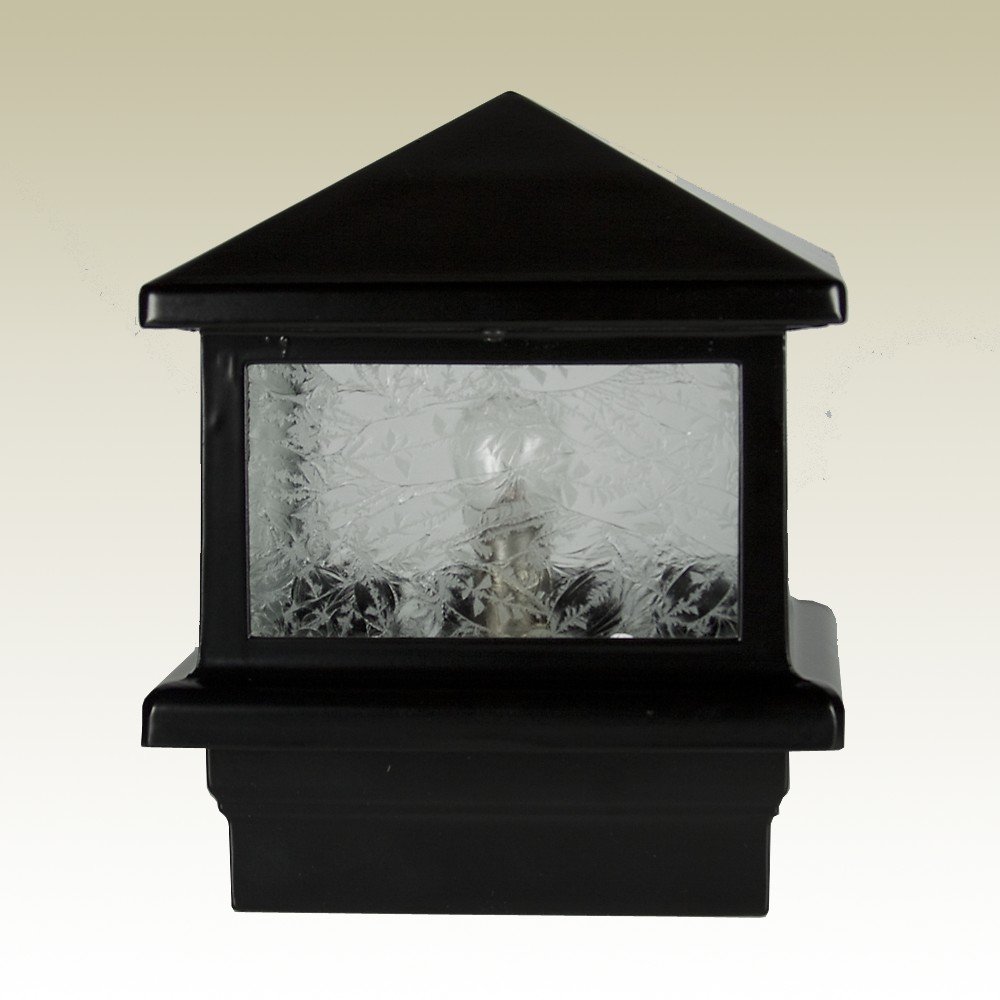

Thank you for choosing the Aurora Sirius 12V Deck Light. This manual provides essential information for the safe installation, operation, and maintenance of your new deck light. Designed for outdoor use, this 1.6W LED light is suitable for illuminating decks, fences, docks, porches, or stairs. It features a durable cast aluminum housing with a powder-coated finish and real glass side panes.
2. Safety Information
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Electrical Safety: This product operates on 12VAC. Ensure power is disconnected at the source before installation or maintenance. All wiring should be performed by a qualified electrician or in accordance with local electrical codes.
- Outdoor Use: This fixture is designed for outdoor, wet location use. Ensure all connections are waterproofed and sealed appropriately.
- Mounting: Mount the fixture securely to a stable 4-inch post. Do not install on unstable or damaged surfaces.
- LED Lamp: The LED lamp is integrated and not user-replaceable. Do not attempt to disassemble the light fixture.
- Heat: The light fixture may become warm during operation. Avoid touching the fixture directly when in use.
3. Package Contents
Verify that all components are present before beginning installation:
- 1 x Aurora Sirius 12V Deck Light (RLA6058)
- Installation Hardware (screws, wire connectors - may vary)
4. Setup and Installation
This deck light is designed to fit standard 4-inch synthetic posts and operates on a 12VAC low-voltage system.
Pre-Installation Checklist:
- Ensure power to the low-voltage transformer is OFF.
- Confirm the post size is a standard 4-inch (actual 3.5" x 3.5" or 4" x 4" depending on post type).
- Gather necessary tools: screwdriver, wire strippers, waterproof wire connectors.
Installation Steps:
- Positioning: Place the deck light fixture onto the top of your 4-inch post. Ensure it sits flush and is properly aligned.
- Securing: Use the provided screws to secure the light fixture to the post. Drive screws through the designated mounting holes at the base of the fixture into the post. Do not overtighten.
- Wiring: Connect the light's low-voltage wires to your existing 12VAC landscape lighting system wiring. Strip approximately 1/2 inch of insulation from the ends of the light fixture wires and the main low-voltage cable. Use waterproof wire connectors to create a secure and weather-tight connection. Ensure polarity is correct if specified by your transformer or system.
- Testing: Once all connections are made and secured, restore power to your low-voltage transformer. The light should illuminate.
5. Operating Instructions
The Aurora Sirius 12V Deck Light operates as part of your low-voltage landscape lighting system. Its operation is controlled by the transformer or timer connected to your system.
- Power On/Off: The light will turn on and off according to the schedule set on your low-voltage transformer or timer.
- Continuous Operation: If connected directly to a continuous 12VAC power source, the light will remain on as long as power is supplied.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your deck light.
- Cleaning: Periodically clean the glass panes and aluminum housing with a soft, damp cloth to remove dirt, dust, and debris. Avoid abrasive cleaners or solvents that could damage the finish.
- Inspection: Annually inspect wiring connections for corrosion or damage. Ensure the fixture remains securely mounted to the post.
- LED Longevity: The integrated LED lamp is designed for long life and requires no routine replacement.
7. Troubleshooting
If your deck light is not functioning as expected, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the low-voltage system. | Check the transformer and its power supply. Ensure the timer is set correctly. |
| Light does not turn on. | Loose or faulty wiring connection. | With power off, inspect all wire connections. Re-secure or replace faulty connectors. |
| Light does not turn on. | Damaged LED lamp. | If other lights on the same circuit work, and connections are good, the LED may be faulty. Contact customer support. |
| Light flickers. | Poor wire connection or insufficient power. | Check wire connections for tightness. Ensure the transformer is not overloaded. |
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | RLA6058 |
| Brand | Aurora |
| Power Source | 12VAC (Low Voltage) |
| Light Source Type | LED |
| LED Wattage | 1.6W Warm White |
| Material | Cast Aluminum Housing, Glass Panes |
| Finish Type | Powder Coated |
| Color | Black |
| Mounting Type | Deck Mount (fits standard 4" posts) |
| Item Weight | 1.91 pounds |
| Dimensions (Package) | 7.83 x 6.93 x 6.93 inches |
| UL Listed | Yes |
9. Warranty and Support
For warranty information or technical support, please contact Aurora Lighting customer service. Keep your purchase receipt as proof of purchase.
Manufacturer: Aurora Lighting
Please refer to the official Aurora Lighting website or your retailer for the most current contact information and warranty details.
