Product Overview
The Triton 08267 XTD Trailer Gas Shock Lift Kit is specifically designed for use with Triton XTD series trailers. This kit provides a smooth gas shock lifting mechanism, which significantly assists in tilting your V-front trailer. This feature is particularly beneficial when loading snowmobiles or other equipment, especially if a cover or salt shield is present, which can otherwise impede the tilting process. This kit is compatible with Triton trailer models XTD11-101 and XTD11-101 QP.
Components Included

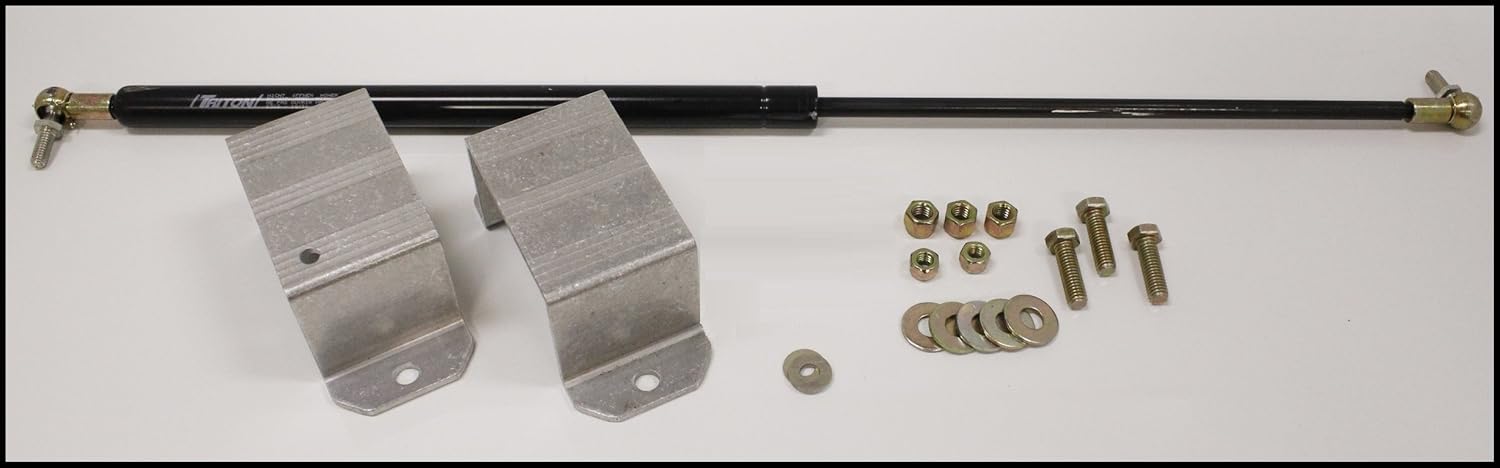

Image showing the Triton 08267 XTD Trailer Gas Shock Lift Kit components: a black gas shock, two silver aluminum brackets, and various nuts, bolts, and washers.
This image displays all components of the Triton 08267 XTD Trailer Gas Shock Lift Kit. It includes one black gas shock absorber, two silver U-shaped aluminum brackets, three large bolts, three large nuts, three small nuts, and several flat washers of varying sizes.
- 1x Gas Shock: A black gas-filled cylinder with mounting points at each end, designed to provide controlled lifting and lowering.
- 2x Aluminum Brackets: Silver, U-shaped brackets used for mounting the gas shock to the trailer frame.
- Hardware Kit: Includes various bolts, nuts, and washers necessary for secure installation.
Setup and Installation
Proper installation is crucial for the safe and effective operation of your Triton Gas Shock Lift Kit. It is recommended to have basic mechanical knowledge and tools before proceeding. If unsure, consult a professional.
Tools Required:
- Wrench set (appropriate sizes for bolts and nuts)
- Drill (if new mounting holes are required)
- Measuring tape
- Marker or pencil
- Safety glasses and gloves
Installation Steps:
- Prepare the Trailer: Ensure the trailer is on a level surface and secured. Disconnect any existing tilting mechanisms if applicable.
- Identify Mounting Locations: Locate the designated mounting points on your Triton XTD trailer frame for the gas shock and brackets. Refer to your trailer's specific manual for precise locations. The brackets are typically mounted to the trailer frame, and the gas shock connects between the trailer bed and the frame.
- Install Brackets: Attach the two aluminum brackets to the trailer frame using the provided bolts, nuts, and washers. Ensure they are securely fastened and aligned correctly. Do not overtighten.
- Attach Gas Shock: Connect one end of the gas shock to the mounting point on the trailer bed and the other end to one of the newly installed brackets. Use the appropriate hardware. The gas shock should extend and retract smoothly.
- Test Operation: Carefully test the tilting mechanism of the trailer. The gas shock should assist in lifting the V-front and provide controlled lowering. Ensure there is no binding or excessive force required.
- Final Inspection: Double-check all bolts and nuts for tightness. Ensure all components are securely installed and there is no interference with other trailer parts.
Operating Instructions
The Triton Gas Shock Lift Kit is designed to simplify the tilting process of your V-front trailer. Follow these guidelines for optimal use:
- Tilting Up: To tilt the trailer bed upwards, release any locking mechanisms on your trailer (if present) and gently lift the V-front section. The gas shock will assist in the lifting motion, making it easier to raise the bed.
- Lowering Down: To lower the trailer bed, apply gentle downward pressure on the V-front section. The gas shock will provide a controlled descent, preventing the bed from slamming down. Ensure the area is clear before lowering.
- Loading/Unloading: Once tilted, you can proceed with loading or unloading your snowmobiles or other equipment. The gas shock helps maintain the tilted position, providing stability.
- Secure After Use: Always ensure the trailer bed is fully lowered and secured with any original locking pins or mechanisms before transport.
Maintenance
Regular maintenance ensures the longevity and proper function of your Triton Gas Shock Lift Kit.
- Regular Inspection: Periodically inspect the gas shock, brackets, and all mounting hardware for signs of wear, corrosion, or damage. Check for loose bolts or nuts.
- Cleanliness: Keep the gas shock rod clean and free of dirt, mud, or debris. Wipe it down with a clean cloth as needed. Avoid using harsh chemicals that could damage seals.
- Lubrication: The gas shock itself is typically maintenance-free. However, ensure that the pivot points and mounting hardware are not seized. A light application of a suitable lubricant to the pivot points can prevent squeaks and ensure smooth operation.
- Storage: If the trailer is stored for extended periods, especially in harsh conditions, consider covering the gas shock to protect it from elements.
- Replacement: If the gas shock loses its ability to assist in lifting or lowering, or if it shows signs of leakage or damage, it should be replaced immediately. Do not attempt to repair a damaged gas shock.
Troubleshooting
If you encounter issues with your Triton Gas Shock Lift Kit, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Trailer bed difficult to lift or does not stay up. | Gas shock has lost pressure or is damaged. | Replace the gas shock. |
| Trailer bed slams down when lowering. | Gas shock has lost pressure or is damaged. | Replace the gas shock. |
| Squeaking or grinding noise during operation. | Dry or corroded pivot points/mounting hardware. | Clean and lubricate pivot points. Check for bent or damaged hardware. |
| Loose components after installation. | Hardware not tightened sufficiently. | Inspect and re-tighten all bolts and nuts. |
If the problem persists after attempting these solutions, contact Triton customer support or a qualified service technician.
Specifications
- Brand: Triton
- Model Number: 08267
- Product Type: Trailer Gas Shock Lift Kit
- Compatibility: Triton XTD11-101, XTD11-101 QP trailers
- Included Components: Gas Shock, Aluminum Brackets, Mounting Hardware (bolts, nuts, washers)
- Auto Part Position: Front (for V-front trailer tilting)
- ASIN: B00AMNJL0U
Warranty and Support
For specific warranty information regarding the Triton 08267 XTD Trailer Gas Shock Lift Kit, please refer to the documentation provided with your purchase or visit the official Triton website. Warranty terms and conditions typically cover manufacturing defects for a specified period.
For technical support, replacement parts, or further assistance, please contact Triton customer service directly. Contact information can usually be found on the manufacturer's website or in the product packaging.
You can visit the Triton Store for more information: Triton Official Store
