Introduction
This document provides essential instructions for the installation, function, and maintenance of the Fisher & Paykel Hot Water Inlet Valve, model 420237P. This valve is an authorized replacement part designed to fit various Fisher & Paykel brand washing machine models, ensuring proper hot water supply to the appliance.
Safety Information
Before proceeding with any installation or repair, please read and understand all safety warnings. Failure to follow these instructions could result in property damage, personal injury, or death.
- Disconnect Power: Always unplug the appliance from the electrical outlet before beginning any service or repair.
- Turn Off Water Supply: Shut off the hot and cold water supply valves to the appliance before disconnecting any water lines.
- Wear Protective Gear: Use appropriate personal protective equipment, such as gloves and eye protection.
- Professional Assistance: If you are unsure about any step, consult a qualified technician.
- Water Spillage: Be prepared for residual water in hoses and the old valve. Have towels or a bucket ready.
Package Contents
Verify that all components are present before starting the installation.
- One (1) Fisher & Paykel Hot Water Inlet Valve (Model 420237P)
- Note: Gaskets or seals may not be included with the replacement valve. Retain and inspect the existing gaskets for reuse if they are in good condition.
Installation Instructions
Follow these steps carefully to replace the hot water inlet valve.

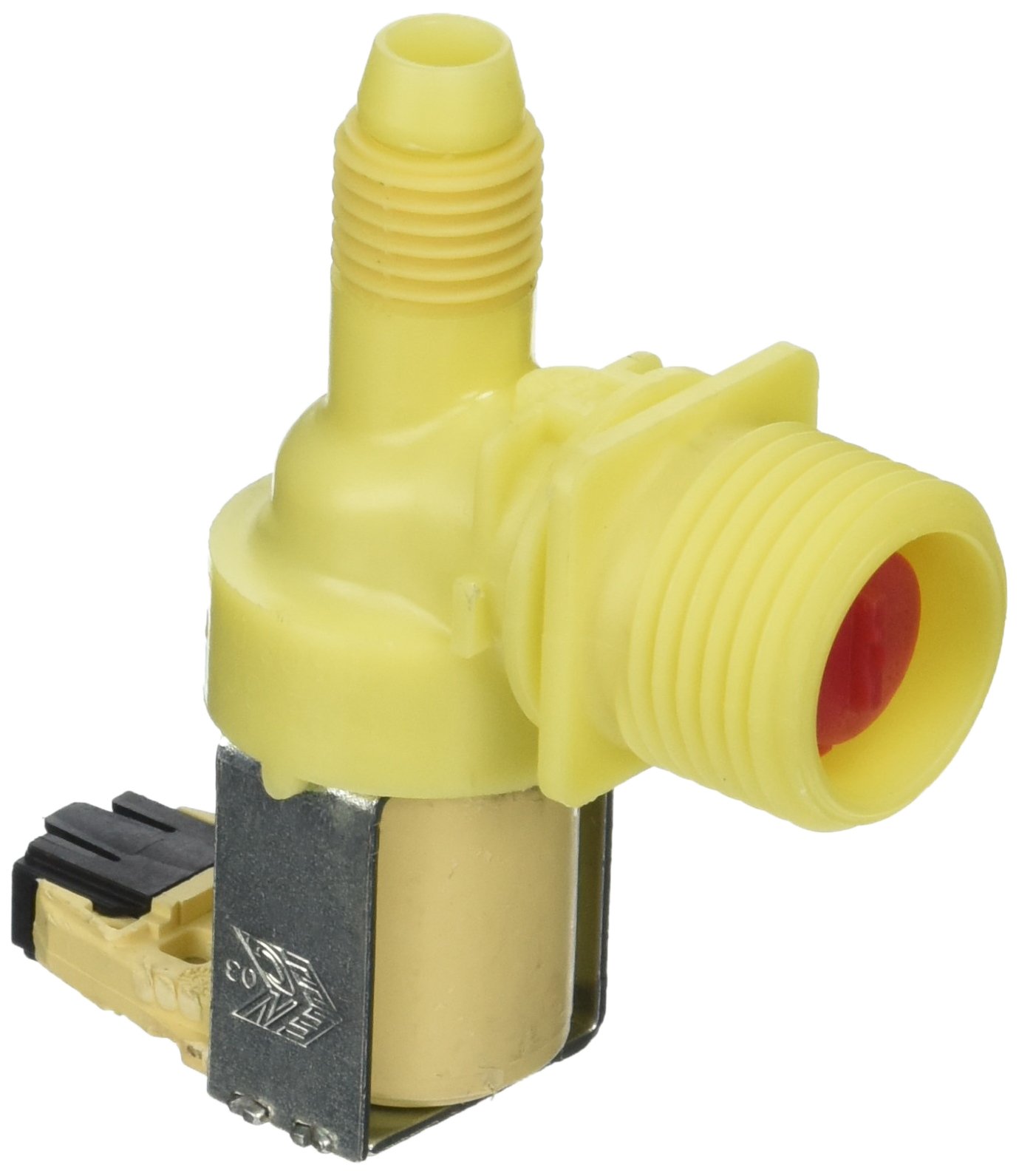

Image: Fisher & Paykel Hot Water Inlet Valve 420237P. This image shows the general appearance of the hot water inlet valve, featuring its plastic body and connection points.
- Prepare the Appliance:
- Unplug the washing machine from the electrical outlet.
- Turn off the hot and cold water supply valves located behind the washing machine.
- Disconnect the hot and cold water inlet hoses from the back of the washing machine. Be prepared for some water spillage.
- Access the Valve:
- Depending on your specific Fisher & Paykel model, you may need to remove the top panel or rear access panel of the washing machine to reach the inlet valve assembly. Refer to your appliance's service manual for specific access instructions.
- Disconnect Old Valve:
- Carefully disconnect any electrical wiring harnesses connected to the old hot water inlet valve. Note their positions for reconnection.
- Disconnect any internal hoses or tubing attached to the valve.
- Unscrew or unclip the old valve from its mounting bracket or housing.
- Inspect and Transfer Gaskets:
- Examine the gaskets or seals from the old valve. If they are in good condition (not cracked, brittle, or deformed), carefully remove them for reuse.
- If the new valve did not come with new gaskets, and the old ones are damaged, new gaskets must be acquired before proceeding to prevent leaks.
- Install New Valve:
- Attach any necessary gaskets or seals to the new Fisher & Paykel Hot Water Inlet Valve 420237P.
- Mount the new valve into the appliance, securing it with screws or clips as the old one was. Ensure it is seated correctly.
- Reconnect all internal hoses and tubing to the new valve.
- Reconnect the electrical wiring harnesses to the new valve. Ensure connections are secure and match the original configuration.
- Reassemble and Test:
- Replace any access panels or the top panel that were removed.
- Reconnect the hot and cold water inlet hoses to the back of the washing machine. Hand-tighten, then use a wrench for a quarter turn, being careful not to overtighten.
- Slowly turn on the hot and cold water supply valves. Check for any leaks at the hose connections and around the newly installed valve.
- Plug the washing machine back into the electrical outlet.
- Run a short cycle (e.g., rinse and spin) to confirm proper operation and check for leaks under pressure.
Function and Operation
The Hot Water Inlet Valve 420237P controls the flow of hot water into your washing machine. When the washing machine's control board signals for hot water, the valve opens, allowing water to enter the tub. When the desired water level or temperature is reached, the valve closes. Proper functioning of this valve is crucial for accurate water temperature and fill levels during wash cycles.
Maintenance
The Fisher & Paykel Hot Water Inlet Valve 420237P is designed for durability and typically requires minimal maintenance. However, periodic inspection can help prevent issues:
- Inspect for Leaks: Periodically check the area around the valve and hose connections for any signs of water leaks. Address any leaks immediately.
- Check Water Inlet Screens: Some washing machines have screens at the water inlet connections to filter sediment. These can become clogged over time and restrict water flow. Refer to your washing machine's user manual for instructions on how to clean these screens.
Troubleshooting
If you experience issues after installing the new valve, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leak at valve or hose connection | Loose connection, damaged gasket/seal, overtightened connection. | Ensure hoses are securely tightened (do not overtighten). Check and replace any damaged gaskets or seals. |
| No hot water entering the machine | Hot water supply valve closed, clogged inlet screen, electrical connection issue. | Verify hot water supply valve is fully open. Check and clean inlet screens. Ensure electrical connections to the valve are secure. |
| Machine continuously fills with hot water (overflow) | Valve stuck open (rare for new valve, but possible if debris is present). | Disconnect power and water immediately. Inspect the valve for any obstructions. If the issue persists, the valve may be faulty. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 420237P |
| Brand | Fisher & Paykel |
| Material | Plastic |
| Item Dimensions (L x W x H) | 5 x 4 x 1 inches |
| Item Weight | 0.21 Pounds |
| Inlet Connection Size | 4 Inches |
| Inlet Connection Type | Threaded |
| Outlet Connection Type | NPT |
| Number of Ports | 2 |
| Valve Type | Globe Valve |
| UPC | 045903197709 |
Warranty and Support
This Fisher & Paykel Hot Water Inlet Valve (Model 420237P) is provided as an authorized aftermarket product. The manufacturer's warranty description states "No Warranty" for this specific part. For any support or inquiries regarding the installation or function of this part, please refer to the original appliance's service manual or contact a qualified appliance technician.
For general information about Fisher & Paykel products, you may visit the official Fisher & Paykel website or contact their customer service department.
