Introduction
This instruction manual provides detailed guidance for assembling the Trumpeter US MK23 MTVR (Medium Tactical Vehicle Replacement) 1/35 Scale model kit. This kit is designed for modelers aged 12 and up, with a skill level of 2, indicating it requires some experience in model building. The kit features over 430 parts, including a full drive train assembly, suspension, and rubber tires, offering a highly detailed replica of the military vehicle.
Please read all instructions carefully before beginning assembly to ensure a smooth and enjoyable building experience.
Setup and Preparation
Before starting assembly, ensure you have all necessary tools and a clean, well-lit workspace. This kit requires assembly, and paint and glue are not included.
Important Pre-Assembly Notes:
- Study and understand these instructions thoroughly before beginning assembly.
- When needed, remove photo-etch parts carefully using a modeling knife or photo-etch sprue cutter, being careful not to damage or lose small parts.
- Take extra care in handling photo-etch parts in order to avoid injury.
- Apply instant cement sparingly to photo-etch parts where instructed.
Recommended Tools (Not Included):
- Plastic and instant cements
- Sprue cutters/long nose pliers
- Modeling knife
- Small files
- Tweezers
- Pin vise & scissors
- Soft cloth and sandpaper
Image: Overview of assembly instructions, including recommended tools and symbols for various steps like weighting, gluing, making holes, cutting, and decal application.
Assembly Instructions
Follow the numbered steps in the provided diagrams. Each step illustrates the parts required and their placement. Refer to the parts diagram (not explicitly provided in images, but implied by kit) to identify components.
General Assembly Steps:
- Carefully remove parts from the sprues using a sprue cutter or modeling knife.
- Clean any excess plastic (flash) from the parts using a file or sandpaper.
- Test fit parts before applying glue to ensure proper alignment.
- Apply plastic cement sparingly to join plastic parts. For photo-etched parts, use instant cement.
- Allow sufficient drying time for glue before proceeding to the next step.
- Assemble sub-assemblies as indicated in the diagrams (e.g., chassis, cab, cargo bed, suspension).
- Integrate the full drive train assembly and suspension components as detailed.
Decal Application:
- Cut decals from the sheet as needed.
- Dip the decal in warm water for about 10 seconds and then place on a soft, clean cloth.
- Hold the decal backing sheet edge and gently slide the decal onto the model in its proper position.
- While still wet, the decal can be adjusted for better fit on the model by dampening it gently with your finger.
- When the decal is in the proper position, gently press down with a soft cloth until excess water and air bubbles are gone.
- Allow the decal to dry completely before handling the model further.
Image: Decal sheet with various markings, numbers, and vehicle identification for the US MK23 MTVR.
Painting and Marking Guide:
Refer to the painting and marking guides for recommended color schemes and decal placement. Color guides are typically provided for specific military camouflage patterns.
Image: Painting and Marking Guide A, illustrating a camouflage pattern for the US MK23 MTVR Cargo Truck, with color references.
Image: Painting and Marking Guide B, illustrating a desert tan color scheme for the US MK23 MTVR Cargo Truck, with color references.
The following images show examples of a completed model, demonstrating the level of detail and potential finishes.
Image: A fully assembled Trumpeter US MK23 MTVR model in camouflage, depicted towing an artillery piece.

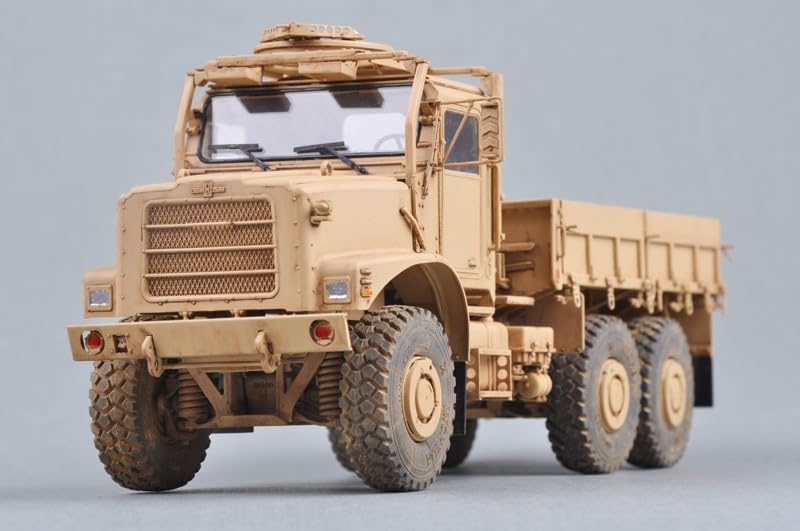

Image: Front three-quarter view of a completed Trumpeter US MK23 MTVR model kit, painted in a desert tan scheme.

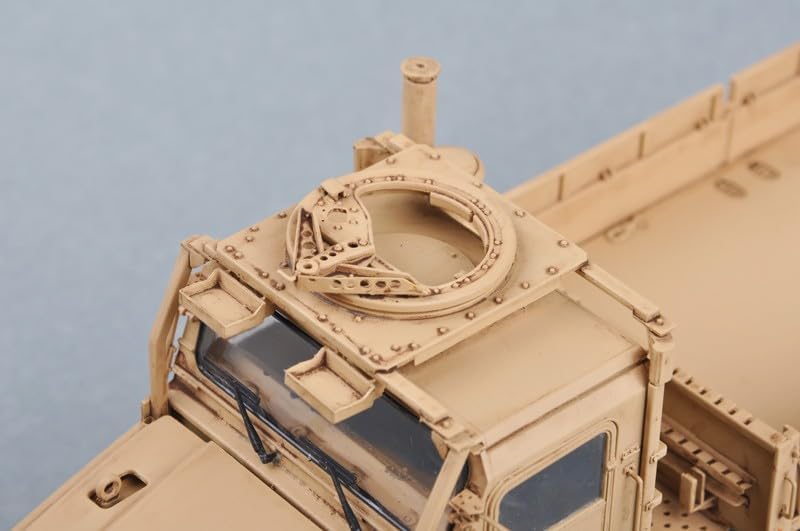

Image: Detailed view of the cab roof and turret assembly on the completed US MK23 MTVR model.

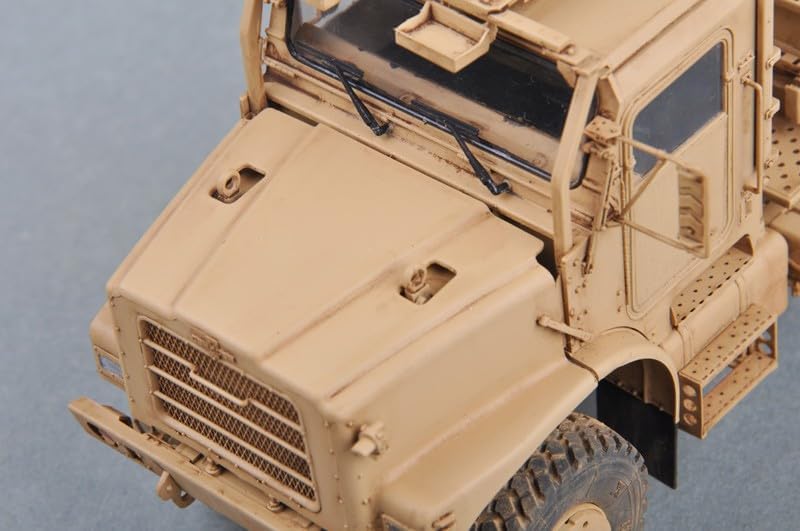

Image: Detailed view of the hood, front grille, and headlight assembly on the completed US MK23 MTVR model.
Image: Rear view showcasing the cargo bed interior and chassis details of the completed US MK23 MTVR model.
Maintenance and Care
Once assembled and painted, your model kit requires minimal maintenance to preserve its appearance.
- Cleaning: Dust your model regularly with a soft, dry brush or a gentle air blower. Avoid using water or chemical cleaners, as these can damage paint and decals.
- Display: Display your model in a stable, dust-free environment away from direct sunlight, which can cause fading over time.
- Handling: Handle the model carefully, grasping it by sturdy sections to avoid breaking delicate parts.
Troubleshooting Common Issues
- Parts Not Fitting: If parts do not fit together smoothly, check for excess plastic (flash) on the edges and carefully trim or sand it away. Ensure you are using the correct parts for the step.
- Decals Not Adhering: Ensure the surface is clean and smooth. A gloss coat applied before decals can help adhesion. Use decal setting solutions if necessary to help decals conform to irregular surfaces.
- Glue Marks: Apply glue sparingly. If excess glue appears, try to wipe it away immediately with a cotton swab dampened with appropriate solvent (for plastic cement) or carefully scrape it off once dry (for instant cement).
- Broken Small Parts: Small parts can be reattached using a tiny amount of instant cement. For very delicate repairs, consider reinforcing with a small piece of wire if feasible.
Product Specifications
| Brand | Trumpeter |
| Model Name | US MK23 MTVR (Medium Tactical Vehicle Replacement) |
| Model Number | TSM-1011 |
| Scale | 1/35 Scale |
| Number of Parts | Over 430 |
| Material | Plastic, Brass (photo-etched parts) |
| Recommended Age | 12 years and up |
| Skill Level | 2 (Assembly Required) |
| Product Dimensions | 15 x 9 x 3 inches (Box dimensions) |
| Item Weight | 1.36 pounds (Kit weight) |
| Special Features | High level of detail, multi-directional slide-molded cab, full drive train assembly, suspension, rubber tires. |
