1. Introduction
This manual provides essential information for the proper use and understanding of your Performance Tool W5334 240-piece Zinc Nuts & Bolts Assortment Kit. This kit is designed to provide a variety of popular metric sizes of zinc-plated bolts, nuts, and washers, conveniently organized in a re-sealable plastic case for various applications.

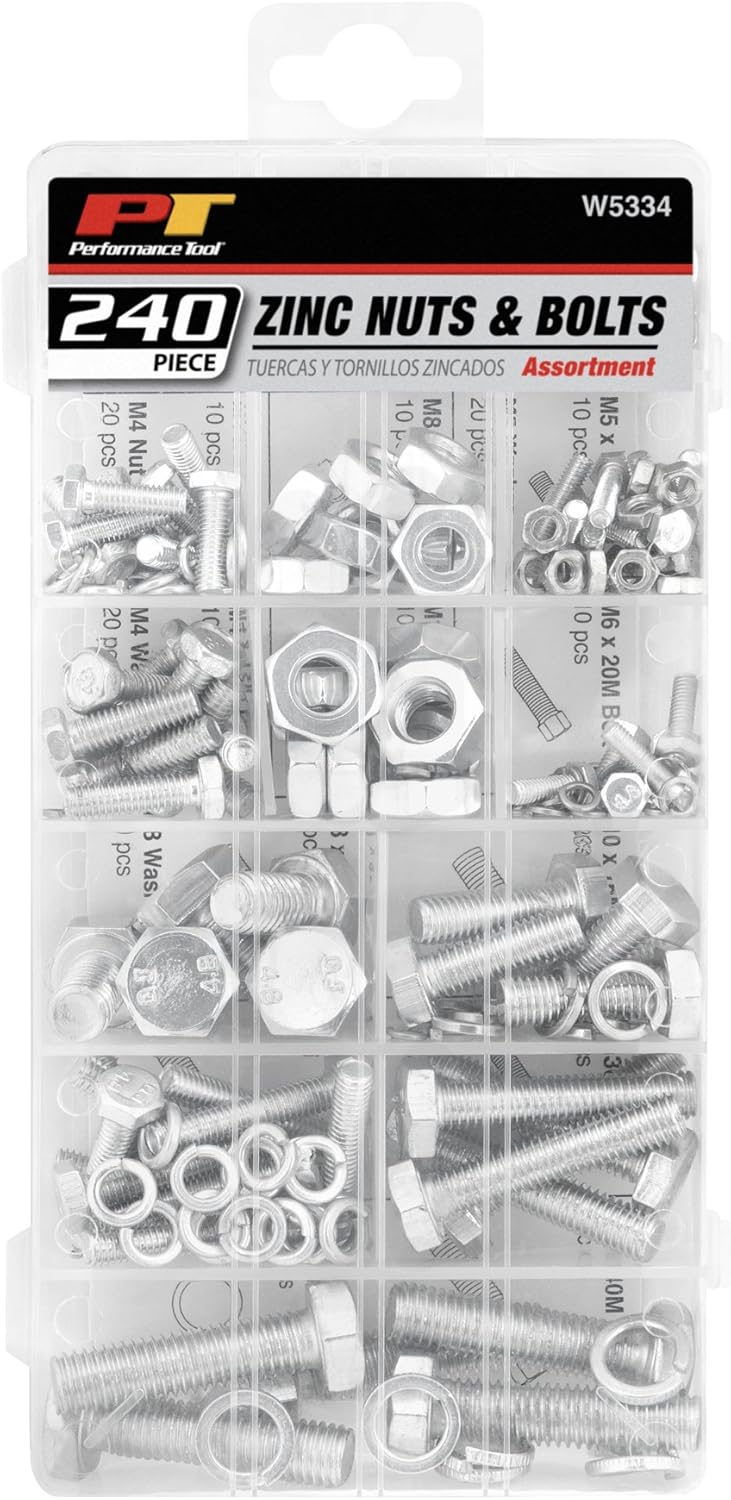

Image 1: The Performance Tool W5334 240pc Zinc Nuts & Bolts Assortment Kit with its lid open, displaying the various organized components.
2. Product Contents
The Performance Tool W5334 kit contains 240 pieces of zinc-plated fasteners, organized in a durable plastic case. The assortment includes various metric sizes of hex bolts, hex nuts, and flat washers. Refer to the diagram below for a detailed breakdown of included sizes and quantities.
Image 2: Detailed diagram illustrating the types, sizes (M4, M5, M6, M8, M10), and quantities of bolts, nuts, and washers in the kit.
The kit includes:
- Bolts: M4 x 12M (10 pcs), M4 x 20M (10 pcs), M5 x 16M (10 pcs), M5 x 25M (10 pcs), M6 x 20M (10 pcs), M6 x 30M (5 pcs), M8 x 25M (5 pcs), M8 x 40M (5 pcs), M10 x 16M (5 pcs), M10 x 40M (5 pcs)
- Nuts: M4 Nut (20 pcs), M5 Nut (20 pcs), M6 Nut (20 pcs), M8 Nut (10 pcs), M10 Nut (10 pcs)
- Washers: M4 Washer (20 pcs), M5 Washer (20 pcs), M6 Washer (20 pcs), M8 Washer (10 pcs), M10 Washer (10 pcs)
Image 3: The Performance Tool W5334 240pc Zinc Nuts & Bolts Assortment Kit in its closed, organized state.
3. Setup
The Performance Tool W5334 kit comes pre-sorted in a re-sealable plastic case. No assembly is required for the kit itself. Upon receiving, inspect the case for any damage during transit. Ensure all compartments are securely closed to prevent mixing of components.
- Inspection: Verify that all listed components are present and in good condition according to the product contents section.
- Storage: Store the kit in a dry environment to prevent corrosion of the zinc-plated fasteners. The re-sealable case helps maintain organization and protects the contents.
4. Operating Instructions
This kit provides fasteners for general-purpose applications. Select the appropriate bolt, nut, and washer combination based on the specific requirements of your project.
- Size Selection: Identify the correct diameter and length of the bolt required. Match with the corresponding nut and washer. The kit contains metric sizes (M4, M5, M6, M8, M10).
- Application: Use bolts to secure two or more components together. Washers are typically placed under the bolt head and/or nut to distribute the load, prevent damage to the surface, and provide a smoother bearing surface for tightening.
- Tightening: Use appropriate tools (wrenches, sockets) to tighten the nuts onto the bolts. Avoid over-tightening, which can strip threads or damage components. Ensure a snug fit that prevents loosening during use.
5. Maintenance
Proper maintenance ensures the longevity and usability of your fastener assortment.
- Storage: Always return unused fasteners to their designated compartments in the case. Keep the case closed and stored in a dry, temperate environment to prevent rust or corrosion.
- Cleaning: If fasteners become dirty, wipe them with a clean, dry cloth. Avoid using harsh chemicals that could damage the zinc plating.
- Inspection: Periodically inspect fasteners for any signs of corrosion, damage, or stripped threads. Discard any compromised components to ensure safe and reliable use in future projects.
6. Troubleshooting
This section addresses common issues that may arise when using the fastener kit.
- Fastener Does Not Fit: Ensure you are using the correct metric size (M4, M5, M6, M8, M10) for your application. Verify that the bolt and nut threads match.
- Stripped Threads: This can occur from over-tightening or using incorrect tools. If a thread is stripped, the fastener should be replaced.
- Corrosion/Rust: While zinc-plated for corrosion resistance, prolonged exposure to moisture can lead to rust. Ensure the kit is stored in a dry environment. Light surface rust may be removed with a wire brush, but heavily rusted fasteners should be replaced.
- Missing Components: If specific sizes are frequently used, consider purchasing additional quantities of those individual fasteners to replenish your kit.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | W5334 |
| Number of Pieces | 240 |
| Fastener Type | Bolts, Nuts, Washers |
| Finish Type | Zinc |
| Head Style | Hex (for bolts) |
| Thread Sizes Included | M4, M5, M6, M8, M10 |
| Measurement System | Metric |
| Material | Zinc |
| Item Weight | 14.4 ounces |
| Product Dimensions (L x W x H) | 4.25 x 1.25 x 9 inches |
| Included Components | 1 Performance Tool Branded Product (Assortment Kit) |
Image 4: Indication that the fasteners in this kit are metric sized.
