1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the MAHLE KL 805 Fuel Filter. The MAHLE Original fuel filter is designed to protect your vehicle's fuel system from contaminants, ensuring optimal engine performance and longevity. Please read this manual thoroughly before proceeding with any installation or maintenance.
2. Product Overview
The MAHLE KL 805 Fuel Filter is engineered to meet vehicle manufacturers' specifications, providing high dirt holding capacity and low pressure drop. It features superior embossed and pleated filter media for effective filtration.

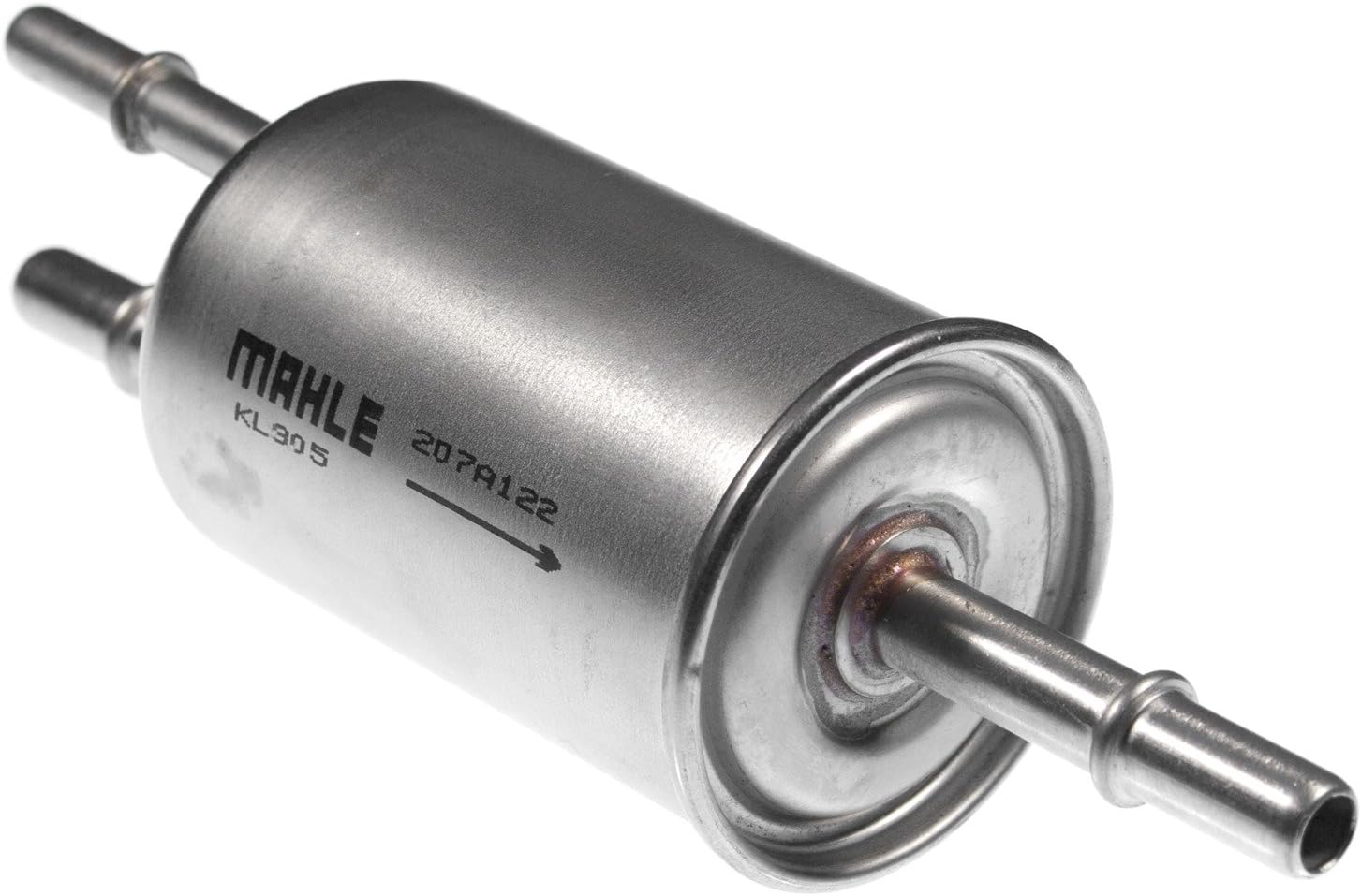

Figure 2.1: MAHLE KL 805 Fuel Filter. This image shows the cylindrical body of the fuel filter with two connection points on one end and one on the other, indicating the flow path.
Key Features:
- Complies with high safety standards of car manufacturers, ensuring sealing tightness.
- Designed to vehicle manufacturers' (OEM) specifications.
- Superior embossed and pleated filter media for high dirt holding capacity and low pressure drop.
- European engineered design and manufacturing.
3. Setup and Installation
Installation of a fuel filter requires specific tools and knowledge of vehicle fuel systems. It is highly recommended that installation be performed by a qualified automotive technician. Improper installation can lead to fuel leaks, engine damage, or fire hazards.
General Installation Guidelines (for qualified personnel):
- Safety First: Ensure the vehicle is turned off, the engine is cool, and the fuel system pressure is relieved before beginning work. Disconnect the vehicle's battery.
- Locate the Old Filter: Identify the existing fuel filter. Its location varies by vehicle model (e.g., under the vehicle, in the engine bay, or near the fuel tank).
- Prepare for Spillage: Place a drain pan or absorbent rags beneath the filter to catch any residual fuel.
- Disconnect Fuel Lines: Carefully disconnect the fuel lines from the old filter. Be aware that some fuel may still escape.
- Remove Old Filter: Detach the old filter from its mounting bracket.
- Install New Filter: Install the MAHLE KL 805 Fuel Filter, ensuring the flow direction arrow on the filter body matches the fuel flow direction of the vehicle. Connect the fuel lines securely.

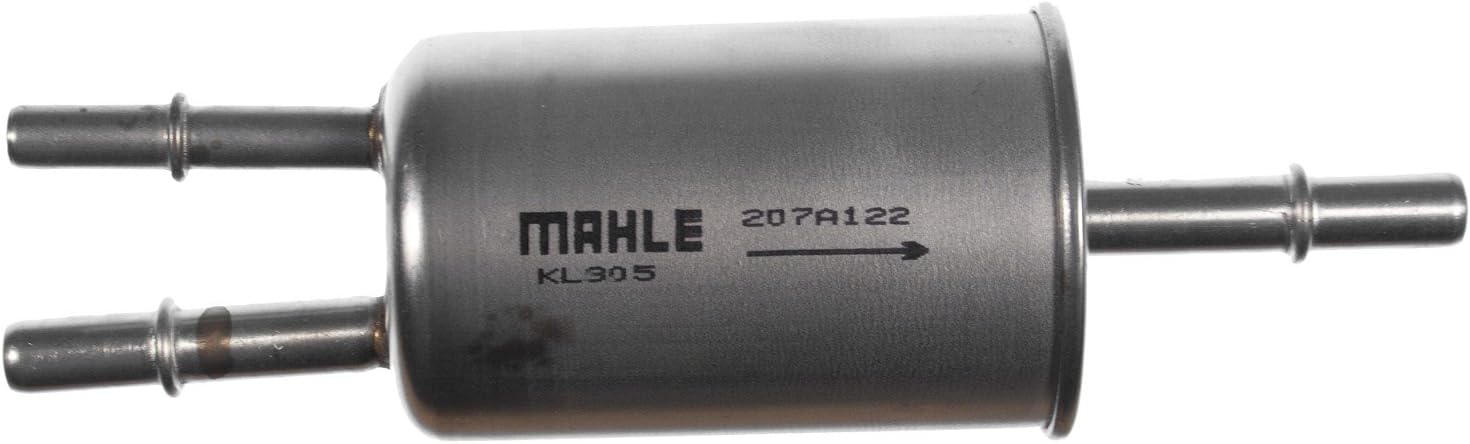

Figure 3.1: MAHLE KL 805 Fuel Filter showing the flow direction arrow. This arrow indicates the correct orientation for fuel flow through the filter, which is crucial for proper installation.
- Check for Leaks: Reconnect the battery. Turn the ignition to the "ON" position (without starting the engine) to allow the fuel pump to prime the system. Check for any fuel leaks around the new filter connections.
- Start Engine: If no leaks are detected, start the engine and allow it to run for a few minutes, re-checking for leaks.
- Dispose of Old Filter: Dispose of the old fuel filter and any contaminated materials according to local environmental regulations.
4. Operation
Once properly installed, the MAHLE KL 805 Fuel Filter operates continuously as part of the vehicle's fuel delivery system. Its primary function is to remove impurities, rust, dirt, and other contaminants from the fuel before it reaches the engine's fuel injectors or carburetor. This ensures a clean fuel supply, which is critical for efficient combustion, optimal engine performance, and preventing damage to sensitive fuel system components.
The filter works by passing fuel through its specialized media, trapping particles while allowing clean fuel to flow through to the engine. There are no user-adjustable settings or operational controls for the fuel filter itself; its operation is passive and integral to the vehicle's fuel system.
5. Maintenance
The MAHLE KL 805 Fuel Filter is a maintenance item designed for periodic replacement. It is not intended to be cleaned or reused.
Replacement Schedule:
- Refer to your vehicle manufacturer's service manual for the recommended fuel filter replacement interval. This can vary significantly based on vehicle make, model, year, and driving conditions.
- Common replacement intervals range from every 30,000 to 60,000 miles (approximately 48,000 to 96,000 kilometers), or every 2 to 4 years.
- Consider more frequent replacement if you regularly use low-quality fuel, drive in dusty environments, or notice symptoms of a clogged fuel filter.
Signs of a Clogged Fuel Filter:
- Reduced engine performance or hesitation during acceleration.
- Difficulty starting the engine.
- Engine stalling, especially at high speeds or under load.
- Rough idling.
- Check Engine Light illumination (though this can indicate many issues).
If you experience any of these symptoms, it is advisable to have your fuel filter inspected by a qualified technician.
6. Troubleshooting
This section addresses common issues that may arise related to the fuel filter. Note that many symptoms can be caused by various vehicle components, and professional diagnosis is often required.
| Symptom | Possible Cause | Action |
|---|---|---|
| Engine runs rough, misfires, or stalls. | Clogged fuel filter, restricting fuel flow. | Inspect fuel filter. If old or symptoms persist, replace the filter. |
| Difficulty starting the engine or extended cranking. | Insufficient fuel pressure due to a clogged filter. | Check fuel pressure. Replace filter if pressure is low and filter is suspect. |
| Reduced acceleration or loss of power at high speeds. | Fuel starvation due to restricted filter. | Replace fuel filter. |
| Fuel leak around the filter area after installation. | Improperly seated fuel lines or damaged O-rings/seals. | Immediately turn off engine. Re-check connections, ensure proper seating and integrity of seals. Seek professional help if unsure. |
If troubleshooting steps do not resolve the issue, or if you are uncomfortable performing these checks, consult a certified automotive mechanic.
7. Specifications
| Attribute | Detail |
|---|---|
| Brand | MAHLE |
| Model | KL 805 |
| Product Grade | Performance Part |
| Outer Material | Stainless Steel |
| Vehicle Service Type | Passenger Car |
| Item Weight | 4.8 ounces |
| UPC | 027067864284 |
| Manufacturer Part Number | KL 805 |
8. Warranty and Support
For specific warranty information regarding your MAHLE KL 805 Fuel Filter, please refer to the documentation provided with your purchase or contact MAHLE customer support directly. General return policies may apply through your retailer.
For technical assistance or further inquiries, please visit the official MAHLE website or contact their customer service department. Always provide your product model number (KL 805) and any relevant purchase details when seeking support.
